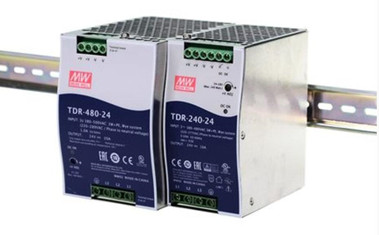

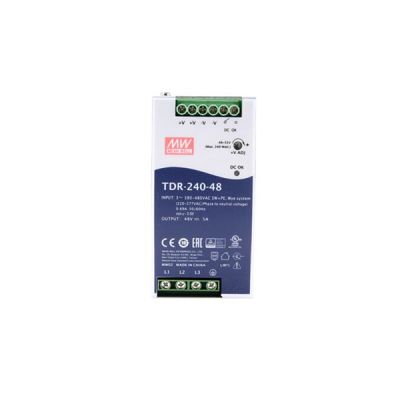

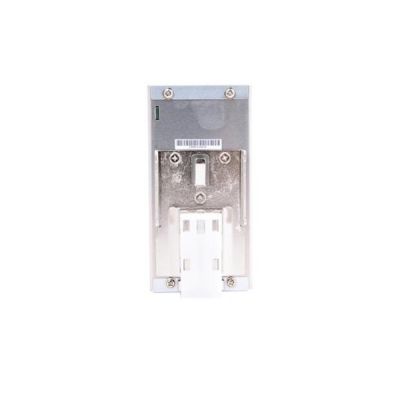

Meanwell TDR-240 Series is one economical slim 240W Din rail power supply. The entire series adapt to be installed on TS-35/7.5or TS-35/15 mounting rails. Since the body is 63mm in width, the design could save a lot of space inside the cabinet. TDR-240 Series adopts the full range АС input from Зѱ З40VАС to 550V АС ( Dual phase operation possible) and conforms to BS EN/EN6 1000-3-2, the norm the European Union regulates for harmonic current. Meanwell TDR-240 is designed with metal housing that enhances the power dissipation. With the working efficiency up to 92 %, the series could operate at the ambient temperature between-30℃ and 70℃ under air convection. Moreover, It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004approved, and etc.) allow TDR-240 series a very competitive power supply solution for industrial applications.
Meanwell TDR-240 Series Encoding
| TDR | Series Name |
| 240 | Rated Wattage |
| 24 | Output Voltage |
Meanwell TDR-240 Series Model Specifications
| Model | TDR-240-24 | TDR-240-48 | ||
| Output | DC VOLTAGE | 24V | 48V | |
| RATED CURRENT | 10A | 5A | ||
| CURRENT RANGE | 0-10A | 0-5A | ||
| RATED POWER | 240W | 240W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | ||
| VOLTAGE ADJ. RANGE | 24-28V | 48-55V | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ||
| LINE REGUL ATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 2000ms, 60ms/400VAC 1500ms, 60ms/500VAC at full load | |||
| HOLD UP TIME | 20ms / 400VAC 40ms / 500VAC at full load | |||
| Input | VOLTAGE RANGE | Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC | ||
| FREQUENCY RANGE | 47 - 63Hz | |||
| POWER FACTOR (Typ.) | PF>=0.53/400VAC PF>=0.52/500VAC at full load | |||
| EFFICIENCY (Typ.) | 92.00% | 92.00% | ||
| AC CURRENT (Typ.) | 0.69A/400VAC 0.6A/500VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 50A | |||
| LEAKAGE CURRENT | <2mA / 530VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power | ||
| Protection type : Constant current limiting, unit will hiccup after 3 sec | ||||
| OVER VOLTAGE | 30 ~ 36V | 56 ~ 65V | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | DC OK REALY CONTACT RATINGS (max.) | 60VDC/0.3A, 30VDC/1A, 30VAC/0.5A resistive load | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 60℃) | |||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||
| OPERATING ALTITUDE | 5000 meters | |||
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters | |||
| SAFETY &EMC | SAFETY STANDARDS | UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:4.87KVAC I/P-FG:2.4KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032(CISPR32)/BS EN/EN61204-3 | Class B | ||
| Radiated | BS EN/EN55032(CISPR32)/BS EN/EN61204-3 | Class B | ||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | ||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN61204-3 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||
| Radiated Field | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods＞95% interruptions 250 periods | ||
| Others | MTBF | 515.4K hrs min. Telcordia SR-332(Bellcore); 215.6K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 63*125.2*113.5mm (W*H*D) | |||
| PACKING | 1Kg ; 12pcs/13Kg/1.22CUFT | |||
Meanwell TDR-240 Series Features
l Three- Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
l 63mm slim width
l Built-in passive PFC function compliance to BS EN/EN61000-3-2
l High efficiency 92% and low power dissipation
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Full power between -30~+60℃
l Built-in constant current limiting circuit
l Can be installed on DIN rail TS 35/7.5 or 15
l UL61010(industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
l DC OK relay contact
l 3 years warranty
Meanwell TDR-240 Series Applications
l Industrial control system
l Semiconductor fabrication equipment
l Factory automation
l Electro-mechanical apparatus

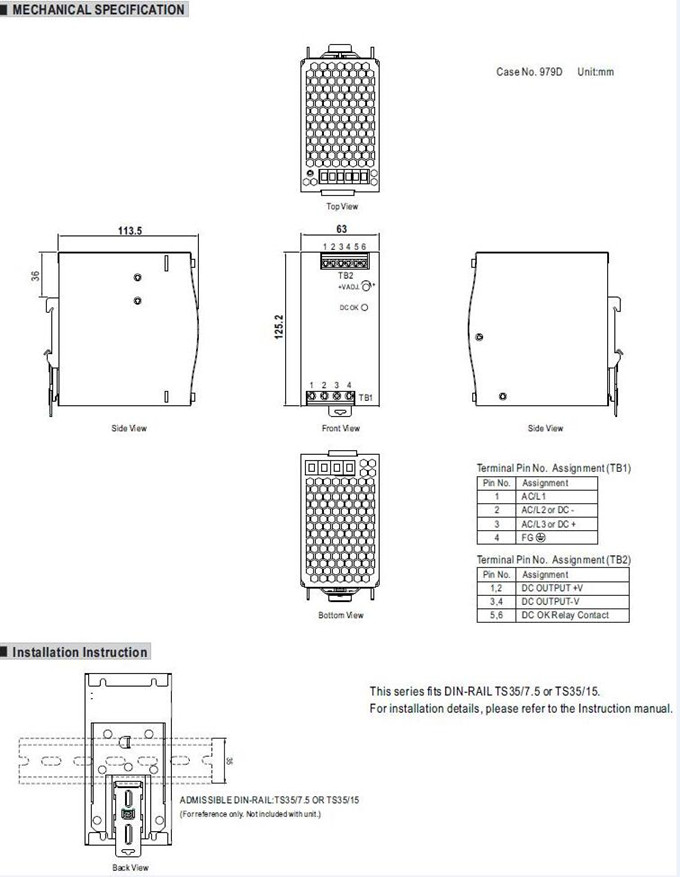

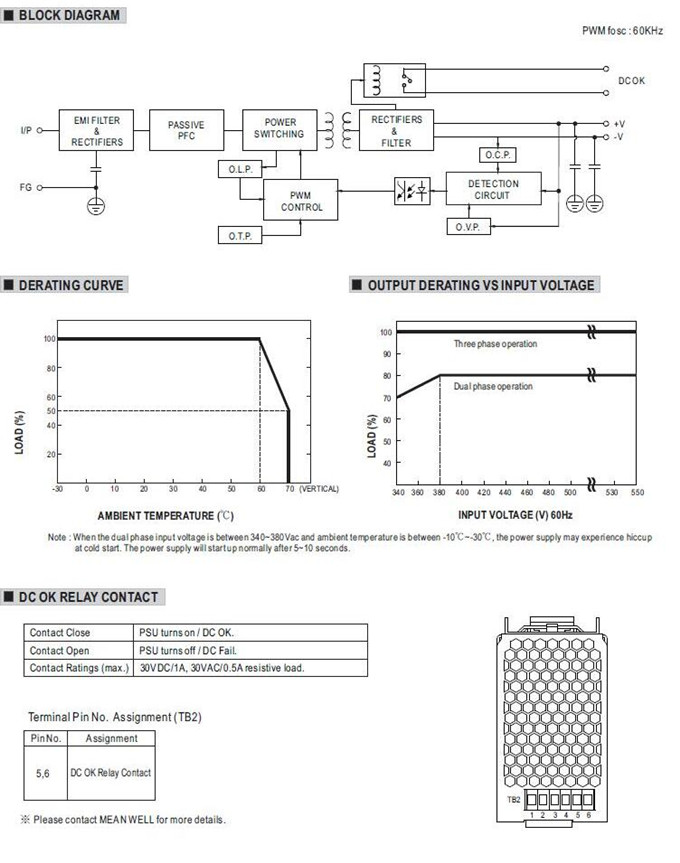

Meanwell TDR-240 Series Mechanical Diagram
