SPV-300
95.09

SPV-300

As low as $95.09

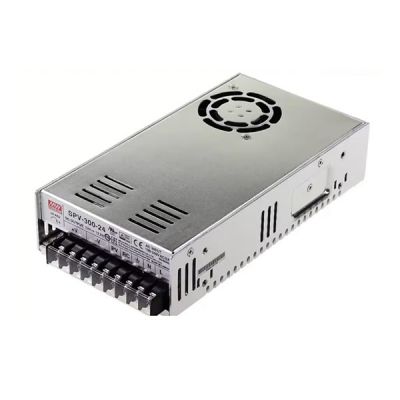

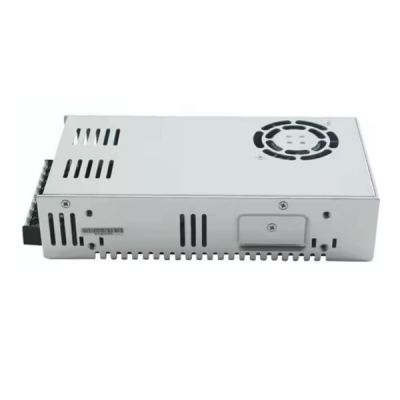

Meanwell 300W Single Output Power Supply with PFC Function

- +
Availability:In stock
SKU Meanwell SPV-300
Brand Meanwell
Details

Meanwell SPV-300 Series is 300W Single Output Power Supply with PFC Function and programmable output voltage capability. The entire series is designed low profile for high frequency and has an efficiency reaching up to 86%. By adding an external control signal of 1∼5.5 V DC, the output voltage can be fine-tuned between 20% and 110% of the rated value, which increases the flexibility of the end system user and meets the requirements of equipment that needs to switch between different output voltages. At the same time, SPV-300 series is cooled by a built-in long-life DC fan with on/off control, and provides the complete protection function such as short circuit, over voltage, overload and over temperature. Considering its excellent quality, high reliability, and long lifespan, Meanwell SPV-300 Series serves as an ideal power supply solution for various industrial applications such as LCD panel burn-in systems, IC test equipment, factory automation, mechanical and electrical industries, or any application where output voltage adjustment is often required.

Meanwell SPV-3000 Series SPV-300 price and spcs ycict

Meanwell SPV-300 Series Model Specifications

Model SPV-300-12 SPV-300-24 SPV-300-48
Output DC VOLTAGE 12V  24V 48V
RATED CURRENT 25A 12.5A 6.25A
CURRENT RANGE 0-25 0-12.5A 0-6.25A
RATED POWER 300W 300W 300W
RIPPLE & NOISE (max.)  150 mVp-p 150 mVp-p 240  mVp-p
VOLTAGE ADJ. RANGE 10.8-13.2V 20-26.4V 41-52.8V
VOLTAGE TOLERANCE ±1% ±1% ±1%
LINE REGUL ATION ±0.3% ±0.2% ±0.2%
LOAD REGULATION ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  83.50% 85.00% 86.50%
AC CURRENT (Typ.) 3.6A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 45A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
  OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8 ~ 16.2V 27.6 ~ 32.4V 57.6 ~ 67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL 4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM 2.4 ~ 13.2V 4.8 ~ 26.4V 9.6 ~ 52.8V
ENVIRONMENT WORKING TEMP -20 ~ +65 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
SAFETY &EMC VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS UL60950-1, TUV BS EN/EN60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
Others MTBF 2116.3K hrs min. Telcordia SR-332 (Bellcore) ; 210.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.1Kg; 12pcs/14Kg/0.92CUFT

Meanwell SPV-300 Series Features

l  Universal AC input / Full range

l  Built-in active PFC function, PF>0.95

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Forced air cooling by built-in DC Fan

l  Output voltage programmable from 20~1101 by 1 ~5.5VDC external control signal

l  Built-in remote ON-OFF control

l  Built-in fan speed control

l  Fixed switching frequency at 100KHz

l  3 years warranty

Meanwell SPV-300 Series Features

Meanwell SPV-300 Series Mechanical Diagram

Meanwell SPV-300 Series Mechanical Diagram SPV-300 SERIES
