GSM90A
15.24

GSM90A

As low as $15.24

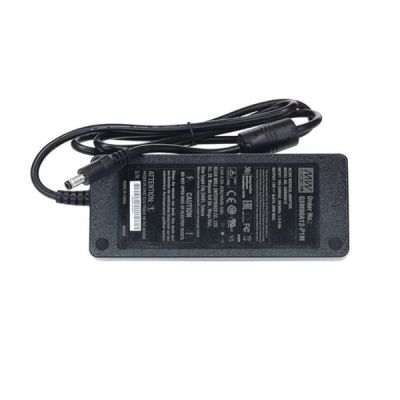

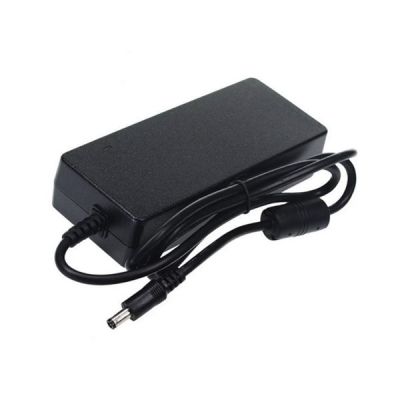

Meanwell 90W AC-DC Reliable Green Medical Adaptor

- +
Availability:In stock
SKU Meanwell GSM90A
Brand Meanwell
Details

Meanwell GSM90A Series is a 90W AC-DC Green Medical Adaptor. The product features single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, and adopts the input range from 80VAC to 264VAC. At the same time, the entire series supplies different output voltages between 12VDC and 48VDC. So that it can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. In addition, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM90A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. Considering its longevity, high efficiency, and excellent performance, Meanwell GSM90A Series serves as an ideal power supply solution for various types of medical electronic devices.

Meanwell GSM90A Price and Specs 90W AC-DC Medical Adaptor GSM90A12 GSM90A15 GSM90A19 GSM90A24 GSM90A48 Class I YCICT

Meanwell GSM90A Series Encoding

GSM Series Name
90 Rated Wattage
A IEC320-C14 AC inlet
12 Output voltage
Р1M- DC plug type Р1M: Рlug fоr ѕtаndаrd mоdеl, 2.5 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM90A Series Model Specifications

ORDER NO. GSM90A12-P1M GSM90A15-P1M GSM90A19-P1M GSM90A24-P1M GSM90A48-P1M
OUTPUT SAFETY MODEL NO. GSM90A12 GSM90A15 GSM90A19 GSM90A24 GSM90A48
DC VOLTAGE 12V 15V 19V 24V 48V
RATED CURRENT 6.67A 6A 4.74A 3.75A 1.87A
CURRENT RANGE 0-6.67A 0-6A 0-4.74A 0-3.75A 0-1.87A
RATED POWER (max) 80W 90W 90W 90W 90W
RIPPLE & NOISE (max.) 120mVp-p 120mVp-p 120mVp-p 180mVp-p 200mVp-p
VOLTAGE TOLERANCE ±5.0% ±5.0% ±4.0% ±3.0% ±2.5%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±4.0% ±3.0% ±2.5%
SETUP, RISE TIME 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.) 40ms / 230VAC 25ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.00% 89.00% 89.00% 90.00% 91.00%
AC CURRENT (Typ.) 1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (Typ.) Cold start 30A/115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Earth leakage current < 125 A/264VAC , Touch current < 100 A/264VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover

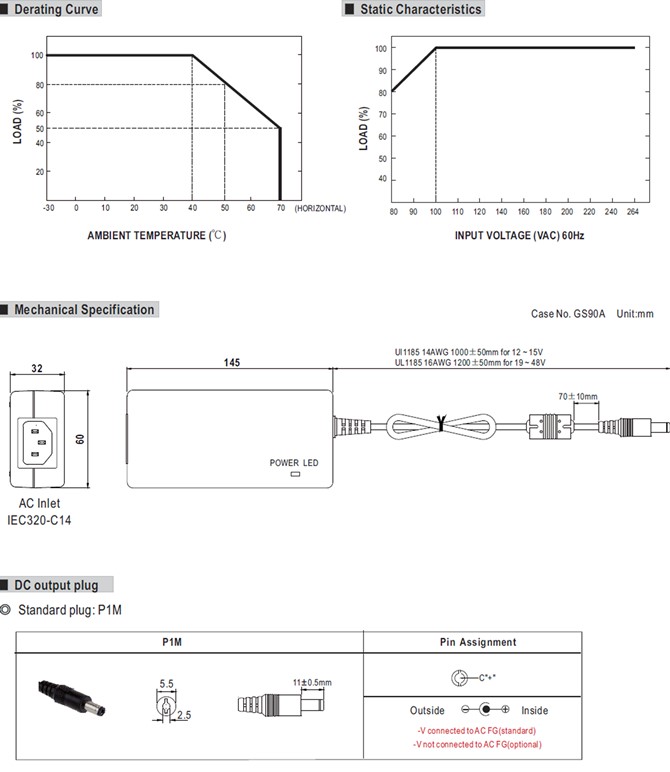

ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 /
CISPR22, CAN ICES-3(B)/NMB-3(B)
Class B
Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 /
CISPR22, CAN ICES-3(B)/NMB-3(B)
Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz )
Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
Others MTBF 2538.4K hrs min. Telcordia SR-332 (Bellcore) ; 387.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 145*60*32mm (L*W*H)
PACKING 0.45Kg; 30pcs/14.5Kg/0.9CUFT

Meanwell GSM90A Series Features

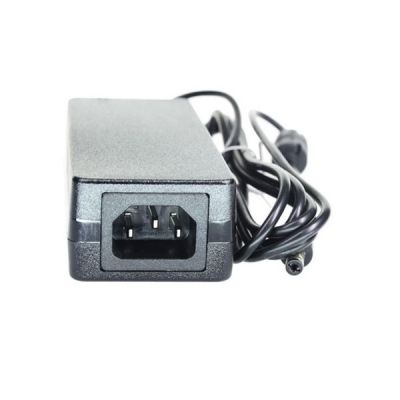

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

l  Extremely low leakage current

l  No load power consumption<0.1 5W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  LED indicator for power on

l  Lifetime>130K hours

l  Various DC plug quick adapter accessory available

l  3 years warranty

Meanwell GSM90A Price and Specs 90W AC-DC Medical Adaptor GSM90A12 GSM90A15 GSM90A19 GSM90A24 GSM90A48 YCICT

Meanwell GSM90A Series Applications

l  Mobile clinical workstation

l  Oral irrigator

l  Portable hemodialysis machine

l  Breath Machine

l  Medical computer monitor

Meanwell GSM90A Price and Specs 90W AC-DC Medical Adaptor GSM90A12 GSM90A15 GSM90A19 GSM90A24 GSM90A48 3 pole YCICT

Meanwell GSM90A Series Applications

Meanwell GSM90A Price and Specs 90W AC-DC Medical Adaptor GSM90A12 GSM90A15 GSM90A19 GSM90A24 GSM90A48 AC inlet YCICT
