SPV-300-48
95.91

SPV-300-48

$95.91

Meanwell 300W Single Output Power Supply with PFC Function and 48V6.25A0-6.25A300W240 mVp-p41-52.8V±1%±0.2%±0.5%

- +
Availability:In stock
SKU Meanwell SPV-300-48
Brand Meanwell
Details

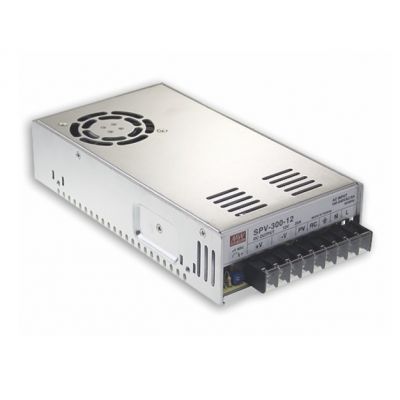

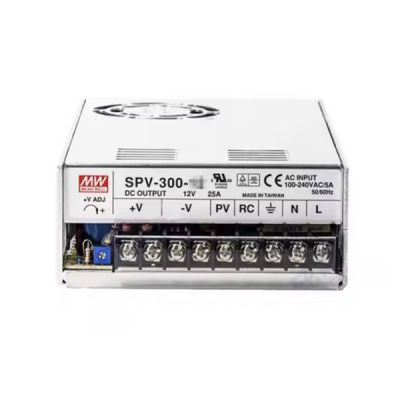

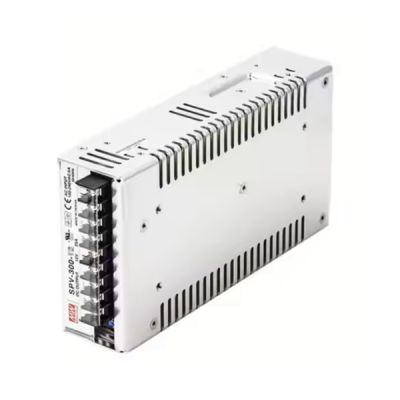

Meanwell SPV-300-48 is 300W Single Output Power Supply with 48V6.25A0-6.25A300W240  mVp-p41-52.8V. The item is designed low profile with high frequency, and high efficiency up to 86% Moreover, it is equipped with PFC Function and programmable output voltage capability. By adding an external control signal of 1∼5.5 V DC, the output voltage can be fine-tuned between 20% and 110% of the rated value, increasing the flexibility of the end system user and meets the requirements of equipment that needs to switch between different output voltages. Additionally, SPV-300-48 is cooled by a built-in long-life DC fan with on/off control, and supplies the complete protection function such as short circuit, over voltage, overload and over temperature. In light of  its excellent quality, high reliability, and long lifespan, Meanwell SPV-300-48 works as an ideal power supply solution for various industrial applications such as LCD panel burn-in systems, IC test equipment, factory automation, mechanical and electrical industries, or any application where output voltage adjustment is often required.

Meanwell SPV-300-48 Specifications Meanwell SPV-300-48 AC DC WITH PFC YCICT

Meanwell SPV-300-48 Specifications

Model SPV-300-48
Output DC VOLTAGE 48V
RATED CURRENT 6.25A
CURRENT RANGE 0-6.25A
RATED POWER 300W
RIPPLE & NOISE (max.)  240  mVp-p
VOLTAGE ADJ. RANGE 41-52.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.2%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  86.50%
AC CURRENT (Typ.) 3.6A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 45A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
  OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 57.6 ~ 67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL 4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM 9.6 ~ 52.8V
ENVIRONMENT WORKING TEMP -20 ~ +65 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
SAFETY &EMC VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS UL60950-1, TUV BS EN/EN60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
Others MTBF 2116.3K hrs min. Telcordia SR-332 (Bellcore) ; 210.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.1Kg; 12pcs/14Kg/0.92CUFT

Meanwell SPV-300-48 Features

l  3 years warranty

l  Built-in fan speed control

l  Universal AC input / Full range

l  Built-in remote ON-OFF control

l  Built-in active PFC function, PF>0.95

l  Forced air cooling by built-in DC Fan

l  Fixed switching frequency at 100KHz

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Output voltage programmable from 20~1101 by 1 ~5.5VDC external control signal

Meanwell SPV-300-48 Features Meanwell SPV-300-48 price and specs AC DC Programmable YCICT

Meanwell SPV-300-48 Mechanical Diagram

Meanwell SPV-300-48 Meanwell SPV-300-48 PRICE AND SPECS AC DC Programmable ycict
