SmartAX EA5801-GP08

SmartAX EA5801-GP08


Compact and low-density box-shaped OLT offering GPON or XG-PON&GPON Combo access, supporting POL and FTTH solutions

- +
Availability:In stock
SKU Huawei SmartAX EA5801-GP08
Brand Huawei

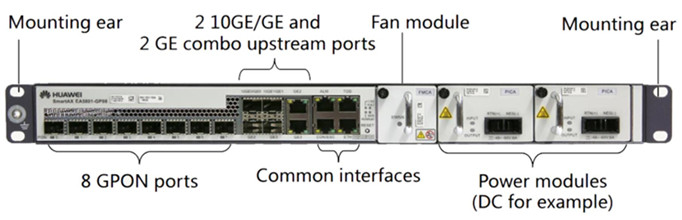

Huawei SmartAX EA5801-GP08 is a compact and low-density box-shaped OLT. It provides GPON or XG-PON&GPON Combo access, and supports Passive Optical LAN (POL) and Fiber-To-The Home (FTTH) solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX. The unit is equipped default with integrated control and service module, 1 pluggable fan module and 2 pluggable power modules.

Huawei SmartAX EA5801-GP08

Huawei SmartAX EA5801-GP08 Specifications

Model SmartAX EA5801-GP08
Ambient Humidity 5% RH to 95% RH
Atmospheric Pressure 70 kPa to 106 kPa
MAC Addresses 32,768
ARP Table 16,384
GE Upstream Ports 2 optical/electrical combo ports
10 GE/GE Upstream Ports 2
Number of Service Ports 8 x GPON
Dimensions (H x W x D) Without mounting ears: 43.6 mm x 442 mm x 222.3 mm
With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm
With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power Supply Mode DC power supply (dual for backup)
AC power supply (dual for backup)
Working Voltage Range DC power supply: -38.4V to -72V
AC power supply: 100V to 240V
Rated Voltage DC power supply: -48V/-60V
AC power supply: 110V/220V
Maximum Input Current DC power supply: 6A
AC power supply: 2.5A
Ambient Temperature -40°C to +65°C* (normal operation), Minimum startup temperature: -25°C
*+65°C indicates the temperature of the air intake vent of the service subrack
Altitude < 4,000m**
**The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.

Huawei SmartAX EA5801-GP08 Features

l  Applied to Various Scenarios

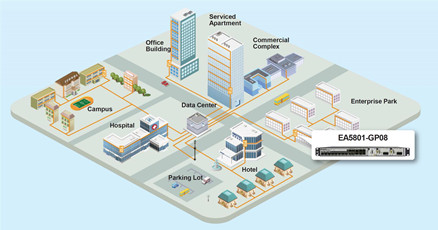

EA5801-GP08 is a box-shaped OLT that requires 1U installation space, and is applicable to access point convergence on a small scale. It is suitable for lightweight deployment in enterprises. One OLT can meet the service-carrying requirements for an enterprise or campus.

l  PON Combo Technology

EA5801-GP08 supports the PON combo technology, and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON.

l  Rapid Deployment, Facilitating Installation and Reducing Engineering Costs

EA5801-GP08 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, protecting personnel and conserving cabinet space.

Huawei SmartAX EA5801-GP08 and More Mini OLT

SmartAX EA5801-GP08
SmartAX EA5801-CG04
OptiXaccess EA5801E-GP16

Huawei SmartAX EA5801-GP08 Topolgy

Huawei SmartAX EA5801-GP08
