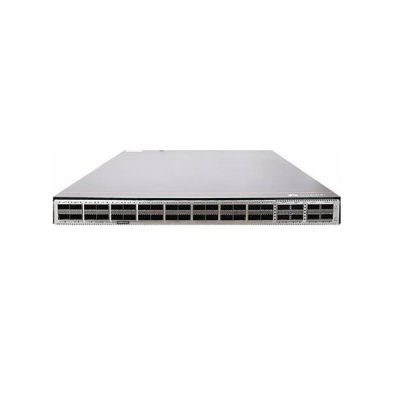

CloudEngine 8850-HAM
1702.15
Details
Huawei CloudEngine 8850-HAM is a next-generation high-performance Ethernet switch with 32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)(CM). The product is designed for data centers and high-end campus networks. Its advanced hardware structure design provides high-density 100GE/40GE/25GE/10GE ports, and low latency. By using the Huawei VRP8 software platform, CloudEngine 8800 series switches provide extensive data center service features and high stacking capability. The airflow direction (front-to-back or back-to-front) can be changed. CloudEngine 8800 series switches can work with CloudEngine 16800/CloudEngine 12800/CloudEngine 8800/CloudEngine 6800/CloudEngine 5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.
In addition, CloudEngine 8800 series switches have energy-saving chips and can measure system power consumption in real time. Fan speed can be adjusted dynamically based on system consumption. These energy-saving technologies reduce O&M costs and contribute to a greener data center.

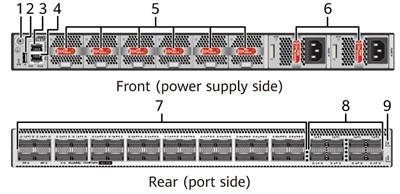

| 1, Ground screw | 2, USB port |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, Six Fan slots | 6, Two Power supply slots |
| 7, Thirty-two 100GE SFP28/Thirty-two 200GE SFP56 Ethernet optical ports | 8, Eight 400GE QSFP-DD Ethernet optical ports |
| 9, Equipment serial number (ESN) and MAC address | 10, Three port-side mounting holes for mounting brackets |
| 11, Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal | 12, Four power-supply-side mounting holes for mounting brackets |
Huawei CloudEngine 8850-HAM Specifications
| Item | Details |
| Description | CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)(CM) |
| Part Number | 02354WBD |
| Model | CE8850-HAM |
| First supported version | V300R022C00 |
| Other part numbers | 02354WBE (CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, 2*AC power modules, 6*fan modules, port-side intake)(CM)) |
| 02354WBF (CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, 2*AC power modules, 6*fan modules, port-side exhaust)(CM)) | |
| Short Name | CE8850-HAM |
| Dimensions with packaging (H x W x D) [mm (in.)] | 260 mm x 790 mm x 590 mm (10.24 in. x 31.10 in. x 23.23 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 625.5 mm (1.72 in. x 17.40 in. x 24.63 in.) | |
| Weight without packaging [kg (lb)] | 9.1 kg (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 12.2 kg (including AC power modules and fan modules, excluding optical modules) |
| Weight with packaging [kg (lb)] | 13.4 kg (29.54 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 16.5 kg (36.37 lb) |
| Chassis height [U] | 1 U |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | It can be used for log backup and USB-based deployment. |
| This function is reserved. | |
| Power supply mode | AC pluggable |
| DC pluggable | |
| HVDC pluggable | |
| Console port | RJ45 |
| Downlink Service interface | 32 x 100GE QSFP28/32 x 200GE QSFP56 |
| Uplink Service interface | 8 x 400GE QSFP-DD |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Static power consumption [W] | 455 W |
| Static heat dissipation [BTU/hour] | 1757 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Types of fans | Pluggable |
| Number of fan modules | 6 |
| Redundant fans | The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.999992068 |
| MTBF [year] | 21.59 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: 56.5 dB(A) on average (maximum: 61.7 dB(A)) |
| Back-to-front airflow: 58.7 dB(A) on average (maximum: 62.9 dB(A)) | |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: 71.8 dB(A) on average (maximum: 78.3 dB(A)) |
| Back-to-front airflow: 74.5 dB(A) on average (maximum: 78.9 dB(A)) | |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| RTU License Supported | Yes |
| A 200GE interface works at the rate of 100 Gbit/s by default and can work at the rate of 200 Gbit/s only after an RTU license is activated. | |
| 400GE interfaces cannot be used by default and are available only after an RTU license is activated. |
Huawei CloudEngine 8850-HAM Features
l 100GE QSFP28 port supports 100GE optical modules. One 100GE port can be used as four 25GE SFP28 ports. The 100GE QSFP28 port also supports 40GE QSFP+ optical modules. 40GE ports can be converted to 10GE ports through QSFP+ breakout cable.
l A stack system of 16 member switches (CloudEngine 8850-64CQ-EI/CloudEngine 8850-32CQ-EI) that provide high density server access in a data center.
l Multiple switches in a stack system are virtualized into one logical device, making it possible to build a scalable, easy-tomanage data center network platform.
l CloudEngine 8800 series switches can use service ports as stack ports. A stack system can be established with switches in the same rack or different racks, and even over long distances.
l CloudEngine 8800 series switches support multichassis link aggregation group (M-LAG), which enables links of multiple switches to aggregate into one to implement device-level link backup.
l Switches in an M-LAG system can be upgraded independently. During the upgrade, other switches in the system take over traffic forwarding to ensure uninterrupted services.
l With the comprehensive inter-device link aggregation technology, the device networking coupling relationship evolves from stacking at the control plane to the use of M-L AG and then finally to coupling-free M-LAG Lite. This achieves active-active server access and high reliability during switch upgrade.
Huawei CloudEngine 8850-HAM Ordering Info
| CE8850-SAN | CE8850-SAN switch (32*100GE QSFP28,without fan and power modules) |
| CE8850-HAM | CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)(CM) |
| CE8865-SAN-4C | CE8865-SAN-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| CE8865-4C | CE8865-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| CE8850-EI-F-B0A | CE8850-32CQ-EI Switch (32-Port 100GE QSFP28,2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Exhaust) |
| CE8850-EI-B-B0A | CE8850-32CQ-EI Switch (32-Port 100GE QSFP28, 2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Intake) |
| CE8850-32CQ-EI | CE8850-32CQ-EI Switch (32-Port 100GE QSFP28 Optical,2*FAN Box, Port-side Exhaust, Without Power Module) |
| CE8850-EI-F-B0B | CE8850-64CQ-EI Switch (64-Port 100GE QSFP28,2*AC Power Module,3*FAN Box, Port-side Exhaust) |
| CE8850-EI-B-B0B | CE8850-64CQ-EI Switch (64-Port 100GE QSFP28,2*AC Power Module,3*FAN Box, Port-side Intake) |
| CE8850-64CQ-EI | CE8850-64CQ-EI Switch (64-Port 100GE QSFP28, Without Fan and Power Module) |
| CE8861-4C-EI-F | CE8861-4C-EI Mainframe (With 4 Subcard Slots,2*FAN Box, Port-side Exhaust, Without Power Module) |
| CE8861-4C-EI-B | CE8861-4C-EI Mainframe (With 4 Subcard Slots,2*FAN Box, Port-side Intake, Without Power Module) |
| CE8861-4C-EI | CE8861-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box, Without Power Module) |
| CE88-D8CQ | 8 Port 100GE QSFP28 Interface Card |
| CE88-D16Q | 16 Port 40GE QSFP+ Interface Card |
| CE88-D24T2CQ | 24 Port 10GE Base-T and 2 Port 100GE QSFP28 Interface Card |
| CE88-D24S2CQ | 24 Port 25GE SFP28 and 2 Port 100GE QSFP28 Interface Card |
| CE88-D24S2CQ-U | 24-Port 25GE/16G FC (SFP28) and 2-Port 40GE/100GE (QSFP28) Interface Card |
| FAN-180A-F | Fan box (F, FAN panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| FAN-180A-B | Fan box (B, FAN panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| FAN-40HA-F | Fan box (HA, Front to Back, FAN panel side intake) Applicable CE8850-32CQ-EI |
| FAN-40HA-B | Fan box (HA, Back to Front, FAN panel side exhaust) Applicable CE8850-32CQ-EI |
| PAC-1K2WA-F | 1200W AC&240V DC Power Module (Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PAC-1K2WA-B | 1200W AC&240V DC Power Module (Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PHD-1K2WA-F | 1200W HVDC Power Module (Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PHD-1K2WA-B | 1200W HVDC Power Module (Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PDC-1K2WA-F | 1200W DC Power Module (Front to Back, Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PDC-1K2WA-B | 1200W DC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PAC-600WA-F | 600W AC Power Module (Front to Back, Power panel side intake) Applicable CE8850-32CQ-EI |
| PAC-600WA-B | 600W AC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-32CQ-EI |
| PDC600S12-CF | 600W DC Power Module (Front to Back, Power panel side intake) Applicable CE8850-32CQ-EI |
| PDC600S12-CB | 600W DC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-32CQ-EI |
| CE88-LIC-VXLAN | CloudEngine 8800 VXLAN Function |
| CE88-LIC-BUN01 | CE8800 Function License Bundle 1 |
| CE88-LIC-TLM | CE8800 Telemetry Function |
| CE88-LIC-PTP | CE8800 Precision Time Protocol Function (Supported only by CE8850-64CQ-EI) |
| CE88-LIC-AIF | CloudEngine 8800 AI Fabric Function (Supported only by CE8850-64CQ-EI & CE8861) |
| N1-CE88LIC-CFMM | N1-CloudFabric Management SW License for CloudEngine 8800 |
| N1-CE88CFMM-SnS1Y | N1-CloudFabric Management SW License for CloudEngine 8800 -SnS-1 Year |
| N1-CE88LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 8800 |
| N1-CE88CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 8800-SnS-1 Year |
| N1-CE88LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 8800 |
| N1-CE88CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine 8800-SnS-1 Year |
| N1-CE88LIC-AIF | N1-CloudEngine 8800 AI Fabric Function |
| N1-CE88AIF- SnS1Y | N1-CloudEngine 8800 AI Fabric Function-SnS-1 Year |

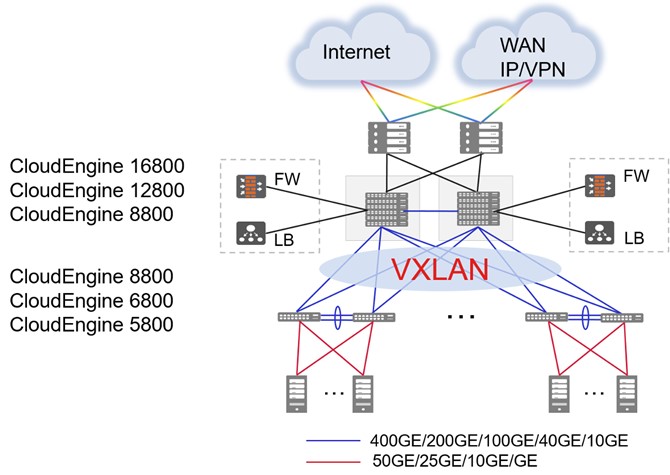

Huawei CloudEngine 8850-HAM Networking and Applications
More Information
| Brand | Huawei |
|---|
