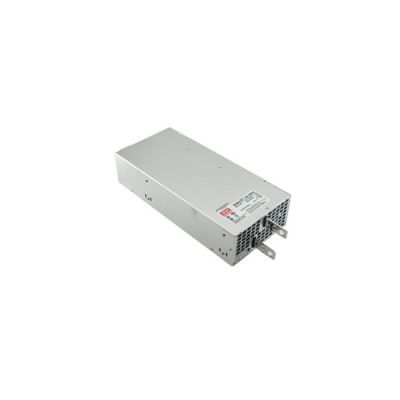

Meanwell SE-1000 Series is economical medium and high-power switching power supply.They are manufactured with a lead-free process that meets environmental protection requirements and have complete protection functions such as short circuit protection, overload protection, overvoltage protection and overheat protection. It is actually an enhanced version of the NE series power supply. The entire series pass through Safety certification: UL/CUL and with Built-in remote detection function (with line loss compensation function). Considering its High power density, High-cost performance and high longevity, Meanwell SE-1000 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell SE-1000 Series Model Specifications
| Model | SE-1000-5 | SE-1000-9 | SE-1000-12 | SE-1000-15 | SE-1000-24 | SE-1000-48 | |
| Output | DC VOLTAGE | 5V | 9V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 150A | 100A | 83.3A | 66.7A | 41.7A | 20.8A | |
| CURRENT RANGE | 0-150A | 0-100A | 0-83.3A | 0-66.7A | 0-41.7A | 0-20.8A | |
| RATED POWER | 750W | 900W | 999.6W | 1000.5W | 1000.8W | 998.4W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | 150 | 150 | 150 | 200 | 200 | |
| VOLTAGE ADJ. RANGE | 3.3-5.5V | 7.5-10V | 10-13.5V | 13.5-16.5V | 22-27.5V | 43-56V | |
| VOLTAGE TOLERANCE | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load | ||||||
| HOLD UP TIME | 20ms/230VAC 15ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by TB2 254 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 81.00% | 84.00% | 85.00% | 86.00% | 88.00% | 89.00% | |
| AC CURRENT (Typ.) | 17.5A/115VAC 10A/230VAC | ||||||
| INRUSH CURRENT (Typ. ) | 35A/115VAC 55A/230VAC | ||||||
| LEAKAGE CURR ENT | <2.5mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 10.4-12.2V | 13.8 ~ 16.2V | 18 ~ 21V | 28-32.4V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to output load derating curve) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class A | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | |||||
| Harmonic Current | BS EN/EN61000-3-2 | ….. | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | …... | |||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | |||||
| Surge | BS EN/EN61000-6-2 | 2KV/Line-Line 4KV/Line-Earth | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||||
| Others | MTBF | 424.5K hrs min. Telcordia SR-332 (Bellcore) ; 251.6K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 278*127*63.5mm (L*W*H) | ||||||
| PACKING | 2.5Kg; 6pcs/16Kg/1.38CUFT | ||||||
Meanwell SE-1000 Series Features
l Low cost
l 2 years warranty
l UL/ CUL approved
l AC input range selected by switch
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Forced air cooling by built-in DC ball bearing fan
l High power density 7.3w/inch³
l With DC_ OK signal output
l Built-in remote ON-OFF control
l Built-in remote sense function

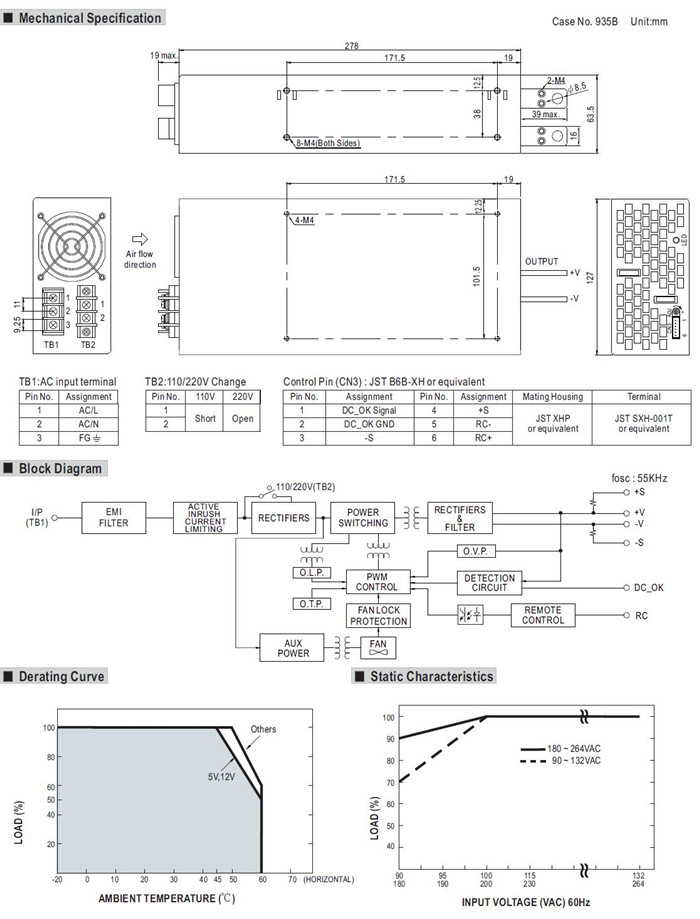

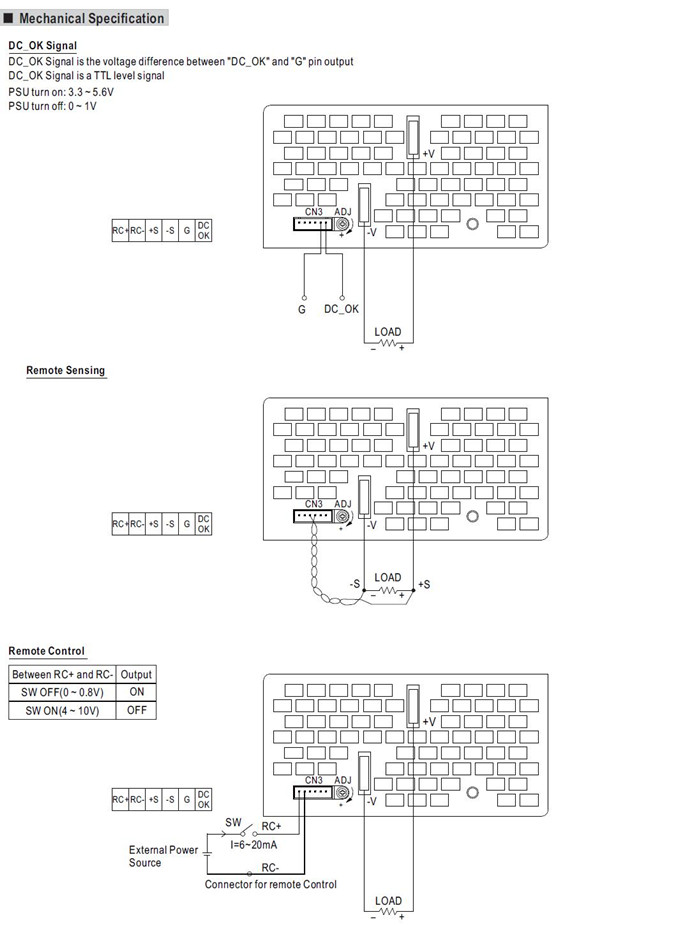

Meanwell SE-1000 Series Mechanical Diagram
