SE-1000-24

$63.18

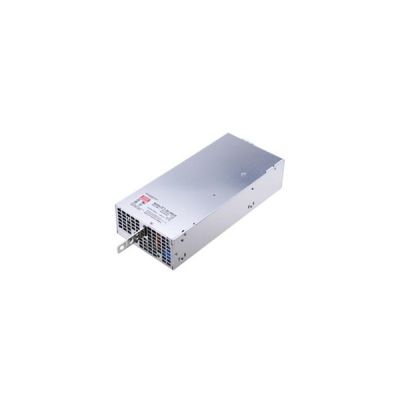

Meanwell 1000W Single Output Power Supply 24V41.7A0-41.7A1000.8W20022-27.5V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell SE-1000-24
Brand Meanwell
Details

Meanwell SE-1000-24 is economical Non-PFC medium and high-power switching power supply, which is produced with a lead-free process. This way fulfills environmental protection requirements, and the model has complete protection functions like short circuit protection, overload protection, overvoltage protection and overheat protection. SE-1000-24 is in fact an enhanced version of the NE series power supply, and passes through Safety certification: UL/CUL and additionally, with Built-in remote detection function (with line loss compensation function). Thanks to its high power density, high-cost performance and high longevity, Meanwell SE-1000-24 is a high price-to-performance power supply solution for various industrial fields.

Meanwell SE-1000-24 Specifications

Meanwell SE-1000-24 Specifications

Model SE-1000-24
Output DC VOLTAGE 24V
RATED CURRENT 41.7A
CURRENT RANGE 0-41.7A
RATED POWER 1000.8W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 22-27.5V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load
HOLD UP TIME  20ms/230VAC 15ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC selected by TB2 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  88.00%
AC CURRENT (Typ.) 17.5A/115VAC 10A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 55A/230VAC
LEAKAGE CURR ENT <2.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 125% rated output power
Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 28-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -20 ~ +60 (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 424.5K hrs min. Telcordia SR-332 (Bellcore) ; 251.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 278*127*63.5mm (L*W*H)
PACKING 2.5Kg; 6pcs/16Kg/1.38CUFT

Meanwell SE-1000-24 Features

l  Low cost

l  2 years warranty

l  UL/ CUL approved

l  With DC_ OK signal output

l  Built-in remote ON-OFF control

l  Built-in remote sense function

l  High power density 7.3w/inch³

l  AC input range selected by switch

l  Forced air cooling by built-in DC ball bearing fan

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell SE-1000-24 Features

Meanwell SE-1000-24 Mechanical Diagram

Meanwell SE-1000-24 Mechanical DiagramMeanwell SE-1000-24 Mechanical Diagram
