S9712
1896.29

S9712

$1,896.29

Terabit Routing Switch supporting 2*SRUs, 12*LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode

- +
Availability:In stock
SKU Huawei S9712 Core Routing Switch
Brand Huawei
Details

Huawei S9712 Core Routing Switch is a high-end switch designed for next generation campus networks and data centers to provide service aggregation. It supports two SRUs, twelve LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode. S9700 uses an advanced multilayer switching architecture to support sustained bandwidth upgrading and to provide 40GE and 100GE access capabilities. Based on Huawei Versatile Routing Platform (VRP), they provide high L2/L3 switching capabilities and integrate diversified services such as MPLS VPN, hardware IPV6, desktop cloud, video conferencing, wireless access.
Furthermore, S9700's multi-service routing and switching platform meets requirements for service bearing at the access layer, aggregation layer, and core layer of enterprise networks. The S9700 provides wireless access, voice, video, and data services, helping enterprises build an integrated full service network with high availability and low latency.
S9700 is designed for a 100G platform and provides a maximum of 5.12 Tbps switching capacity, which can be smoothly expanded to 7.68 Tbps to support high-density GE/10GE line-speed forwarding.

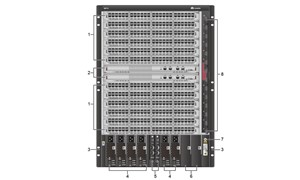

S9712 Huawei S9700 Series Terabit Routing Switches S9703 S9706 Part No 02113549 02113613 good price YCICT

1, Twelve of the service cards 2, Two MPUs
3, A pair of mounting brackets 4, Six power modules
5, Two EH1D200CMU00-Centralized Monitoring Unit 6, Reserved slot
7, Front ESD jack 8, Cable management frames

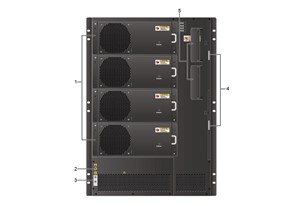

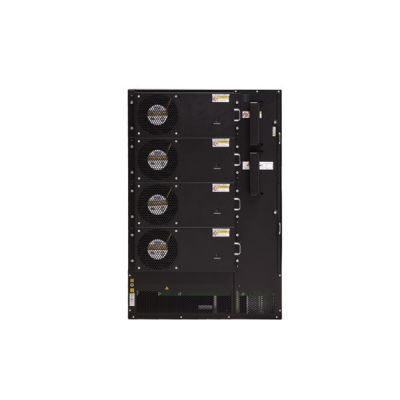

S9712 Huawei S9700 Series Routing Switches S9703 S9706 YCICT Part No 02113549 02113613 YCICT

1, Four Fan Module 2, Rear ESD jack
3, JG ground terminal 4,  Air filter
5, A pair of removable handles

Huawei S9712 Core Routing Switch Specifications

Item Description
Part number
S9712 chassis: 02113549
S9712 chassis, FCC certified: 02113613
Description Supports two SRUs, twelve LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
LPU slots 12
MCU slots 2
Fan slots 4
Power slots 6
Maximum port density V200R001C00: 576xFE, 576xGE, 480x10GE
V200R002C00 and V200R003C00: 576xFE, 576xGE, 480x10GE, 96x40GE
V200R005C00 to V200R007C10: 576xFE, 576xGE, 576x10GE, 96x40GE
V200R008C00 to V200R009C00: 576xFE, 576xGE, 576x10GE, 96x40GE, 24x100GE
V200R010C00 to V200R013C00: 576xFE, 576xGE, 576x10GE, 96x40GE, 48x100GE
Installation In an N66E or N68E cabinet, one cabinet for one chassis
CSS Service port or CSS card clustering
Maximum power consumption (fully loaded) 4906 W
Power specifications DC input voltage
Rated voltage: -48 V DC/-60 V DC
Maximum voltage range: -40 V DC to -72 V DC
AC input voltage
Rated voltage: 110 V AC/220 V AC, 50/60 Hz
Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)
HVDC input voltage (3000 W AC)
Rated voltage: 240 V DC
Maximum voltage range: 190 V DC to 290 V DC
Dimensions (W x D x H, excluding rack-mounting brackets) With cable management frames: 442 mm x 585 mm x 663.95 mm (17.4 in. x 23.0 in. x 26.1 in. (15 U))
Without cable management frames: 442 mm x 489 mm x 663.95 mm (17.4 in. x 19.3 in. x 26.1 in. (15 U))
Weight (empty/fully loaded) 37 kg/116 kg (81.6 lb/255.7 lb)
Reliability and availability Mean time between failures (MTBF): 24.1 years
Mean time to repair (MTTR): 52 minutes
Availability: 0.9999959
Environment specifications Operating temperature and altitude:
-60 m to +1800 m (197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)
1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).
4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage altitude: < 5000 m (16404 ft.)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
Noise at normal temperature (acoustic power) 72 dB(A)
Certification EMC certification
Safety certification
Manufacturing certification

Huawei S9712 Core Routing Switch Features

l  S9700 uses a rotating ventilation channel to improve heat dissipation efficiency. In addition, it uses a variable current chip to dynamically adjust the power according to traffic, reducing power consumption by 11%. Ports can go into a sleeping state when there is no traffic to reduce power consumption.

l  S9700 uses intelligent fan-speed adjustment technology. The fan module monitors and controls the temperature in each zone, and adjusts the fan speed of in each zone individually. This technology extends the service life of each fan and reduces power consumption.

l  S9700 supports IEEE 802.3az Energy Efficient Ethernet, provides a low-power idle mode for the PHY line card, and switches to a lower power state during low link utilization.

l  S9700 software and hardware platforms support IPv6 and the S9700 has been granted an IPv6 Network Access License and the IPv6 Ready Logo Phase 2 Certification by the Ministry of Industry and Information Technology.

l  S9700 supports various IPv6 unicast routing protocols (such as IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+) and multicast features (such as MLD v1/v, MLD snooping, PIM-SM/DMv6, and PIMSSMv6), which provides customers with comprehensive IPv4/IPv6 solutions.

Huawei S9712 Core Routing Switch Ordering Info

LE0B3N66EDC DC cabinet (600 mm x 600 mm x 2200 mm)
LE0B3N66EAC AC cabinet (600 mm x 600 mm x 2200 mm)
EH1BS9703E00 S9703 assembly chassis
EH1BS9706E00 S9706 assembly chassis
EH1BS9712E00 S9712 assembly chassis
EH1BS9703E01 S9703 Assembly Chassis-sustain FCC
EH1BS9706E01 S9706 Assembly Chassis-sustain FCC
EH1BS9712E01 S9712 Assembly Chassis-sustain FCC
EH1M00FBX000 Fan tray
LE0MACPJBX01 APD32-2-4 distribution•box
EH1D200CMU0 Centralized monitoring unit
EH1D2MCUAC00 S9703 MCUA
EH1D2SRUDC00 S9706/S9712 MPUD-clock
EH1D2F48TEA0  48-port 100M Ethernet electrical interface card (EA, RJ45)
EH1D2F48TFA0  48-port 100M Ethernet electrical interface card (FA, RJ45)
EH1D2F48TEC0  48-port 100M Ethernet electrical interface card (EC, RJ45)
EH1D2F48SEA0 48-port 100M Ethernet optical interface card (EA, SFP)
EH1D2F48SEC0 48-port 100M Ethernet optical interface card (EC, SFP)
EH1D2T24XEA0 24-port 100M/1000M Ethernet electrical interface and 2-port 10GE Ethernet optical interface card (EA, RJ45/XFP)
EH1D2G24TFA0  24-port 100M/1000M Ethernet electrical interface card (FA, RJ45)
EH1D2G48TEA0  48-port 100M/1000M Ethernet electrical interface card (EA, RJ45)
EH1D2G48TFA0  48-port 100M/1000M Ethernet electrical interface card (FA, RJ45)
EH1D2G48TBC0  48-port 100M/1000M Ethernet electrical interface card (BC, RJ45)
EH1D2G48TEC0  48-port 100M/1000M Ethernet electrical interface card (EC, RJ45)
EH1D2G48TED0  48-port 100M/1000M Ethernet electrical interface card (ED, RJ45
EH1D2G24SSA0  24-port 100M/1000M Ethernet optical interface card (SA, SFP)
EH1D2G24SEC0 24-port 100M/1000M Ethernet optical interface card (EC, SFP)
EH1D2G24SED0 24-port 100M/1000M Ethernet optical interface card (ED, SFP)
EH1D2S24CSA0 24-port 100M/1000M Ethernet optical interface and 8-port 100M/1000M combo electrical interface card (SA, SFP/RJ45)
EH1D2S24CEA0 24-port 100M/1000M Ethernet optical interface and 8-port 100M/1000M combo electrical interface card (EA, SFP/RJ45)
EH1D2S24XEA0 24-port 100M/1000M Ethernet optical interface and 2-port 10GE Ethernet optical interface card (EA, SFP/XFP)
EH1D2S24XEC0 24-port 100M/1000M Ethernet optical interface and 2-port 10G Ethernet optical interface card (EC, SFP/XFP)
EH1D2G48SEA0  48-port 100M/1000M Ethernet optical interface card (EA, SFP)
EH1D2G48SFA0 48-port 100M/1000M Ethernet optical interface card (FA, SFP)
EH1D2G48SBC0  48-port 100M/1000M Ethernet optical interface card (BC, SFP)
EH1D2G48SEC0  48-port 100M/1000M Ethernet optical interface card (EC, SFP)
EH1D2G48SED0  48-port 100M/1000M Ethernet optical interface card (ED, SFP)
EH1D2T36SEA0 36-port 100 M/1000 M Ethernet electrical interface and 12-port 100M/1000M optical interface card (EA, RJ45/SFP)
EH1D2X02XEA0 2-port 10GE optical interface card (EA, XFP)
EH1D2X02XEC0 2-port 10GE optical interface card (EC, XFP)
EH1D2X04XEA0 4-port 10GE optical interface card (EA, XFP)
EH1D2X04XEC0 4-port 10GE optical interface card (EC, XFP)
EH1D2X04XED0 4-port 10GE optical interface card (ED, XFP)
EH1D2X12SSA0 12-port 10GE optical interface card (SA, SFP+)
EH1D2X16SFC0 16-port 10GE optical interface card (FC, SFP+)
EH1D2X40SFC0 40-port 10GE optical interface card (FC, SFP+)
EH1D2L08QFC0
 8-port 40GE optical interface card (FC, QSFP+)
LE0D0VAMPA00  Value-added service card
S-SFP-FE-LH40-SM1310 Optical module -eSFP-FE- single-mode modules (1310 nm, 40 km, LC)
S-SFP-FE-LH80-SM1550 Optical module -eSFP-FE- single-mode modules (1550 nm, 80 km, LC)
SFP-1000BaseT Electrical module-SFP-GE- electrical interface modules (100 m, RJ45)
eSFP-GE-SX-MM850 Optical module -eSFP-GE- multimode modules (850 nm, 0.5 km, LC)
SFP-GE-LX-SM1310 Optical module -SFP-GE- single-mode modules (1310 nm, 10 km, LC)
S-SFP-GE-LH40-SM1310 Optical module -eSFP-GE- single-mode modules (1310 nm, 40 km, LC)
S-SFP-GE-LH40-SM1550 Optical module -eSFP-GE- single-mode modules (1550 nm, 40 km, LC)
S-SFP-GE-LH80-SM1550 Optical module -eSFP-GE- single-mode modules (1550 nm, 80 km, LC)
eSFP-GE-ZX100-SM1550 Optical module -ESFP-GE- single-mode modules (1550 nm, 100 km, LC)
XFP-SX-MM850 Optical module -XFP-10G- multimode modules (850 nm, 0.3 km, LC)
XFP-STM64-LX-SM1310 Optical module -XFP-10G- single-mode modules (1310 nm, 10 km, LC)
XFP-STM64-LH40-SM1550 Optical module -XFP-10G- single-mode modules (1550 nm, 40 km, LC)
XFP-STM64-SM1550-80KM Optical module -XFP-10G- single-mode modules (1550 nm, 80 km, LC)
OMXD30000 Optical module, SFP+, 10G, multi-mode module (850 nm, 0.3 km, LC)
OSX010000 Optical module, SFP+, 10G, dingle-mode module (1310nm, 10 km, LC)
OSX040N01 Optical module, SFP+, 10G, dingle-mode module (1550 nm, 40 km, LC)
OSXD22N00 Optical module, SFP+, 10 G, dingle-mode module (1310 nm, 0.22 km,LC, LRM)
SFP-FE-LX-SM1310-BIDI Optical module -eSFP-FE-BIDI single-mode modules (TX1310/ RX1550, 15 km, LC)
SFP-FE-LX-SM1550-BIDI Optical module -eSFP-FE-BIDI single-mode modules (TX1550/ RX1310, 15 km, LC)
SFP-GE-LX-SM1310-BIDI 5149 module -eSFP-GE-BIDI single-mode modules (TX1310/ RX1490, 10 km, LC)
SFP-GE-LX-SM1490-BIDI Optical module -eSFP-GE-BIDI single-mode modules (TX1490/ RX1310, 10 km, LC)
W2PSA2200 2200 W AC power supply unit
W2PSD2200 2200 W DC Power supper unit
EH1M00PDBS01 DC power distribution box components
EH1SMS219700  S9700 system software, V200R001
EH1SMPLS0000  MPLS license
EH1SNQA00000  NQA license
EH1SIPV60000  IPv6 authorization
EH1SWLAN64AP  AP resource license-64 APs for WLAN access controller
EH1SWLAN128AP  AP resource license-128 APs for WLAN access controller
EH1I000DOC00 S9700 routing switches product documentation

Huawei S9712 Core Routing Switch Networking and Applications

S9712 Huawei S9700 Series Terabit Routing Switches S9703 S9706 Part No 02113549 good price YCICT
