S7706
2600.14
Details

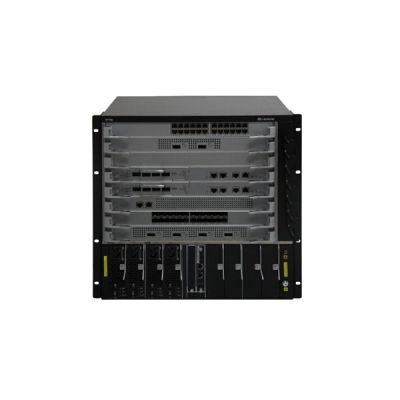

Huawei S7706 Routing Switch is designed for next-generation enterprise networks. It supports two Switching and Routing Units (SRUs), six LPUs, and AC or DC power modules in 1+1 or 2+2 backup mode. S7700 switches can offer voice, video, and data services, helping enterprises build routing and switching integrated end-to-end networks. The product is based on Huawei's intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.
Furthermore, S7700 supports MAC security (MACSec) that enables hop-by-hop secure data transmission. The S7700 can be applied to scenarios that pose high requirements on data confidentiality, such as government and finance sectors. NGFW is a next-generation firewall card that can be installed on an S7700. In addition to the traditional defense functions such as firewall, identity authentication, and Anti-DDoS, the NGFW supports IPS, anti-spam, web security, and application control functions.

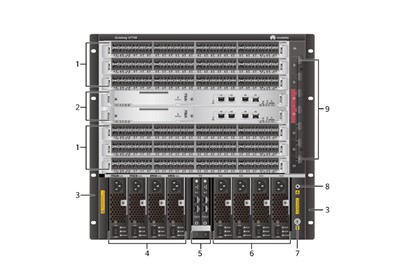

| 1, Six of the service cards | 2, Two MPUs |
| 3, A pair of mounting brackets | 4, Four power modules |
| 5, Two EH1D200CMU00-Centralized Monitoring Unit | 6, Four PoE power modules |
| 7, Ground screw | 8, Front ESD jack |
| 9, Cable management frames |

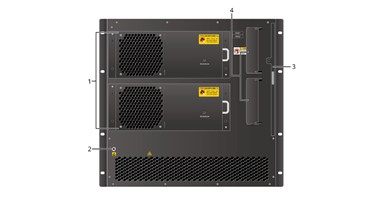

| 1, Two Fan Module | 2, Rear ESD jack |
| 3, Air filter | 4, A pair of removable handles |
Huawei S7706 Routing Switch Specifications
| Item | Description |
| Part number |
S7706 chassis: 02113305
S7706 chassis, PoE supported: 02113307 S7706 chassis, FCC certified: 02113960 S7706 chassis, PoE supported, FCC certified: 02113962 |
| Description | Supports two Switching and Routing Units (SRUs), six LPUs, and AC or DC power modules in 1+1 or 2+2 backup mode. |
| LPU slots | 6 |
| MPU slots | 2 |
| Fan slots | 2 |
| System power supply slots | 4 |
| PoE power supply slots | 4 |
| Maximum port density | V100R006C00: 288xFE, 288xGE, 72x10GE |
| V200R001C00: 288xFE, 288xGE, 240x10GE | |
| V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE | |
| V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE | |
| V200R010C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE | |
| V200R019C00 to V200R020C10: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE | |
| V200R021C00 and later versions: 288xFE, 288xGE, 288x10GE, 72x40GE, 36x100GE | |
| Installation | In an N66E or N68E cabinet, one or two chassis in a cabinet |
| CSS | CSS card or service port clustering |
| PoE | Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply |
| PoE power module backup: no backup, 3+1 backup, or 2+2 backup | |
| Maximum output power: 9000 W | |
| Maximum power consumption (fully configured, no PoE power supply) | 2200 W |
| Power specifications | DC input voltage |
| Rated voltage: -48 V DC/-60 V DC | |
|
Maximum voltage range:
|
|
| 1600 W DC power module: -38.4 V DC to -72 V DC | |
| 2200 W DC power module: -40 V DC to -72 V DC | |
| AC input voltage | |
| Rated voltage: 110 V AC/220 V AC, 50/60 Hz | |
| Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) | |
| HVDC input voltage (3000 W AC) | |
| Rated voltage: 240 V DC | |
| Maximum voltage range: 190 V DC to 290 V DC | |
| Dimensions (H x W x D, without rack-mounting brackets) | With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.) |
| Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.) | |
| Weight (empty/fully configured) | 15 kg/61.8 kg (33.1 lb/136.2 lb) |
| Reliability and availability | MTBF: 24.2 years |
| Availability: 0.9999959 | |
| Environment specifications | Operating temperature and altitude: |
| -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) | |
| 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). | |
| 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) | |
| Relative humidity: 5% RH to 95% RH (noncondensing) | |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | |
| Storage altitude: < 5000 m (16404 ft.) | |
| Noise at normal temperature (acoustic power) | ≤ 72 dB(A) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S7706 Routing Switch Features
l S7700 uses innovative energy-saving chips, which can dynamically adjust power on all ports based on traffic volume. An idle port enters a sleep mode to reduce power consumption.
l S7700 supports Power over Ethernet (PoE) and uses different energy management modes according to the powered device (PD) type, ensuring flexible energy management.
l S7700 supports IEEE 802.3az Energy Efficient Ethernet and provides the low power idle mode for the PHY line card. If the link utilization is low, the S7700 switches to a lower speed or power PHY to reduce power consumption.
l S7700 provides comprehensive NAC solutions for enterprise networks. It supports MAC address authentication, Portal authentication, 802.1x authentication, and DHCP snooping-triggered authentication. These authentication methods ensure the security of various access modes, such as dumb terminal access, mobile access, and centralized IP address allocation.
l S7700 supports both the traditional feature-based licensing mode and the latest Huawei IDN One Software (N1 mode for short) licensing mode. The N1 mode is ideal for deploying Huawei CloudCampus Solution in the on-premises scenario, as it greatly enhances the customer experiences in purchasing and upgrading software services with simplicity.
Huawei S7706 Routing Switch Ordering Info
| LE0BN66EDC | N66E DC Assembly Rack (Four 40A outputs, maximum 1600W per output, 600X600X2200mm) |
| LE0BN66EAC | N66E AC Assembly Rack (Eight 10A Outputs, maximum 1600W per output, 600X600X2200mm) |
| LE2BN66EA000 | N66E AC Assembly Rack (Four 16A Outputs, maximum 2500W per output, 600X600X2200mm) |
| ES0B00770300 | S7703 Assembly Chassis |
| SWC02BAKN001 | S7703 PoE assembly chassis |
| ES0B00770600 | S7706 Assembly Chassis |
| SWC02BAKJ000 | S7706 PoE assembly chassis |
| ES0B00771200 | S7712 Assembly Chassis |
| ES0E2FBX | Wide Voltage Fan Box |
| ES1M00FBX001 | Enhancement Wide Voltage 68 Fan Box |
| EH1M00FBX000 | Wide Voltage 74 Fan Box |
| EH1D200CMU00 | Centralized Monitoring Board |
| ES0D00MCUA00 | S7703 Main Control Unit A |
| ES1D2MCUD000 | S7703 Main Control Unit D |
| LSS7MCUD0001 | S7703 Main Control Unit D |
| ES0D00SRUA00 | S7706/S7712 Main Control Unit A |
| ES1D2SRUE000 | S7706/S7712,Main Control Unit E |
| ES1D2SRUH000 | S7706/S7712 Main Control Unit H |
| LSS7SRUHA100 | S7706/S7712 Main Control Unit H(A1) |
| LSS7SRUHX100 | S7706/S7712 Main Control Unit H(X1) |
| LSS7SRUHX101 | S7706/S7712 Main Control Unit H(X1) |
| LSS7SRUH1000 | S7706/S7712,Main Control Unit H |
| LSS7SRUE1000 | S7706/S7712,Main Control Unit E |
| ES02VSTSA | Cluster Switching System Service Unit |
| ES1D2VS04000 | 4-Port 10G Cluster Switching System Service Unit (SFP+) |
| ES0D0G48TC01 | 48-Port 10/100/1000BASE-T Interface Card (EC, RJ45) |
| ES1M2G48TX5S | 48-port 10/100/1000BASE-T interface card (X5S,M,RJ45) |
| ES1M2G48TX5E | 48-port 10/100/1000BASE-T interface card (X5E,M,RJ45) |
| LSS7G48TA1S0 | 48-port 10/100/1000BASE-T interface card (EA1, RJ45) |
| LSS7G48TA1E0 | 48-port 10/100/1000BASE-T interface card (EC1, RJ45) |
| LSS7G48TX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45) |
| LSS7G48VX5E0 | 48-port 100/1000BASE-T PoE interface card (X5E, RJ45, PoE++) |
| LSS7G48VA1S0 | 48-port 10/100/1000BASE-T PoE interface card (EA1, RJ45, PoE++) |
| LSS7G48VX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++) |
| ES0D0G48SC01 | 48-Port 100/1000BASE-X Interface Card (EC, SFP) |
| LSS7G48SX6S0 | 48-port GE SFP interface card (X6S,SFP) |
| LSS7G48SX6E0 | 48-port GE SFP interface card (X6E,SFP) |
| LSS7G48SA1S0 | 48-Port 100/1000BASE-X Interface Card(EA1,SFP) |
| LSS7G48SA1E0 | 48-Port 100/1000BASE-X Interface Card(EC1,SFP) |
| ES1D2X08SX5H | 8-port 10GE SFP+ interface card (X5H, SFP+) |
| ES0D0X12SA01 | 12-Port 10GBASE-X Interface Card(SA, SFP+) |
| LSS7X24BX6S0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6S,SFP+) |
| LSS7X24BX6E0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6E,SFP+) |
| ES1D2X16SSC2 | 16-Port 10GBASE-X Interface Card (SC,SFP+) |
| ES1D2X32SSC0 | 32-Port 10GBASE-X Interface Card (SC,SFP+) |
| LSS7X48SX6S0 | 48-port 10GE SFP+ interface card (X6S,SFP+) |
| LSS7X48SX6E0 | 48-port 10GE SFP+ interface card (X6E,SFP+) |
| LSS7M24VX6S1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45,PoE++) |
| LSS7M24VX6E1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45,PoE++) |
| LSS7M24BX6S0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45) |
| LSS7M24BX6E0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45) |
| LSS7L12QX6E0 | 12-port 40GE QSFP+ inferface card (X6E,QSFP+) |
| LSS7C02BX6E0 | 2-port 100GE QSFP28 interface and 4-port 40GE QSFP28 interface card (X6E,QSFP28) |
| LSS7C06HX6S0 | 6-port 100GE QSFP28 interface card (X6S,QSFP28) |
| LSS7C06HX6E0 | 6-port 100GE QSFP28 interface card (X6E,QSFP28) |
| ES02PSD16 | 1600W DC Power Module(Black) |
| W2PSA0800 | 800W AC Power Module(Black) |
| PAC-2200WF | 2200W AC Power Module |
| W2PSD2200 | 2200W DC Power Module(Black) |
| PAC3KS54-CE | 3000W AC power module (black) |
| PAC3KS54-NE | 3000W AC power module (black) |
| LE0W01DPDB | DC Power Distribution Unit (Four 40A outputs, maximum 1600 W per output, include power cable) |
| IN6W18L10A | AC Power Distribution Unit (Eight 10A outputs, maximum 1600 W per output, include power cable) |
| IM1W24APD | AC Power Distribution Unit (Four 16A outputs, maximum 2500 W per output, include power cable) |
| ES1SMS2J7701 | S7700 Basic SW,V200R019C10 |
| ESS7R20C00SW | S7700 Basic SW,V200R020C00 |
| ESS7R20C10SW | S7700 Basic SW,V200R020C10 |
| ESS7R21C00SW | S7700 Basic SW,V200R021C00 |
| ESS7R21C01SW | S7700 Basic SW,V200R021C00 |
| ES0SSVFF7700 | SVF Function License(with S7700 used) |
| ES0SMPLS7700 | MPLS Function License |
| ES0SNQAF7700 | NQA Function License |
| ES0SIPV67700 | IPV6 Function License |
| ES1SVXLAN000 | VXLAN enhanced function license(used in S7700 series) |
| ES1SFIB128K0 | X-series LPU FIB Resource License-128K |
| ES1SWL512AP0 | WLAN Access Controller AP Resource License-512AP (with the X-series LPU used) |
| ES1SWL128AP0 | WLAN Access Controller AP Resource License-128AP (with the X-series LPU used) |
| ES1SWL64AP00 | WLAN Access Controller AP Resource License-64AP (with the X-series LPU used) |
| ES1SWL16AP00 | WLAN Access Controller AP Resource License-16AP (with the X-series LPU used) |
| ES1SPPPOE4K0 | PPPoE Access Subscriber Resource License-4K (with the X-series LPU used) |
| ES1SPPPOE8K0 | PPPoE Access Subscriber Resource License-8K (with the X-series LPU used) |
| ES1SPPPOE16K | PPPoE Access Subscriber Resource License-16K (with the X-series LPU used) |
| L-ACU2-128AP | ACU2 Wireless Access Controller AP Resource License(128 AP) |
| N1-S77-F-Lic | N1-CloudCampus,Foundation,S77 Series,Per Device |
| N1-S77-F-SnS1Y | N1-CloudCampus,Foundation,S77 Series,SnS,Per Device,1Year |
| N1-S77-A-Lic | N1-CloudCampus,Advanced,S77 Series,Per Device |
| N1-S77-A-SnS1Y | N1-CloudCampus,Advanced,S77 Series,SnS,Per Device,1Year |
| N1-S77-FToA-Lic | N1-Upgrade-Foundation to Advanced,S77 Series,Per Device |
| N1-S77-FToA-SnS1Y | N1-Upgrade-Foundation to Advanced,S77 Series,SnS,Per Device,1Year |
| N1-AC1.0-AM-15-Lic | N1-CloudCampus,Access Management-AC1.0,15 Terminals |
| N1-AC1.0-AM-15-SnS1Y | N1-CloudCampus,Access Management-AC1.0,15 Terminals,SnS,1Year |
| CI-X7MSwitch-U | CampusInsight-Upgrade-Foundation to Advanced, X7 Series Modular Switch, Per Device |
| CI-X7MSwitch-U-SnS1Y | CampusInsight-Upgrade-Foundation to Advanced, X7 Series Modular Switch, SnS, Per Device, 1 Year |
| EH1IV2RDC0E0 | S7700 and S9700 Series Switches V200R013C00 Product Documentation |
| EH1IV2RJC0E0 | S7700 Series Switches V200R019C00 Product Documentation |
| EH1IV2RJC1E0 | S7700 Series Switches V200R019C10 Product Documentation |

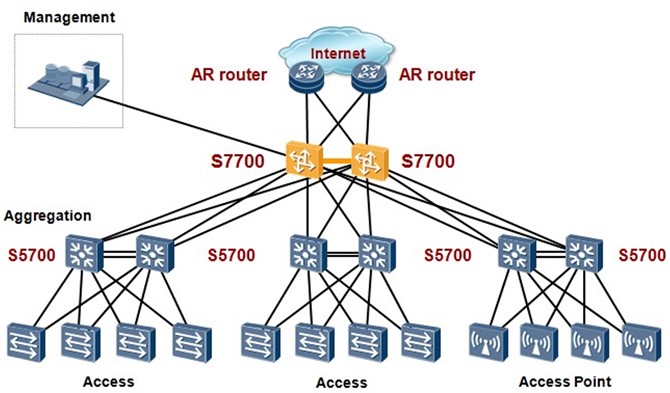

Huawei S7706 Routing Switch Networking and Applications
