S6720-52X-PWH-SI
3100.98
Details
Huawei S6720-52X-PWH-SI is a next-generation multi-gigabit 10GE fixed switch with 48 × multi-gigabit Base-T Ethernet ports, 4 ×1 0GE SFP+. it offers Forwarding performance: 480 Mpps and Switching capacity: 2.56 Tbit/s. The product can provide high-speed wireless device access and 10GE data center server access and also function as an access/aggregation switch on a campus network. S6720-SI is one of the multi-gigabit fixed switches in the industry, providing line-rate multi-gigabit 10M/100M/1G/2.5G/5G/10G access ports and 40GE uplink ports. It can provide high-speed access for APs, enable 10 Gbit/s access to high-density servers, and function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. Additionally, S6720-SI provides multiple security measures to defend against Denial of Service (DoS) attacks and other attacks on networks or users. DoS attacks include SYN flood, Land, Smurf, and ICMP flood attacks. Attacks on networks refer to STP BPDU/root attacks. Attacks on users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, DHCP request flood attacks, and DoS attacks by changing the CHADDR field of packets.

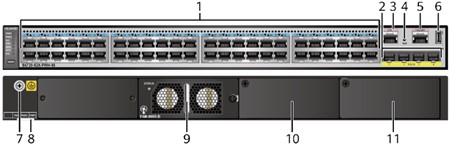

| 1, Forty-eight PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port) | 2, Four 10GE SFP+ ports |
| 3, One ETH management port | 4, One PNP button |
| 5, One console port | 6, One USB port |
| 7, Ground screw | 8, ESN label |
| 9, Fan slot | 10, Power module slot 2 |
| 11, Power module slot 1 |
Huawei S6720-52X-PWH-SI Specifications
| Item | Description |
| Part number | 98010743 |
| Model | S6720-52X-PWH-SI |
| Port | 48 × multi-gigabit Base-T Ethernet ports, 4 ×1 0GE SFP+ |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 35.1 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Using 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Weight (with packaging) | 7 kg (15.43 lb) |
| Stack ports | Any MultiGE or 10GE SFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 159.5 W (without PoE) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 66.4 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) | |
| When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.). | |
| Maximum power consumption (100% throughput, full speed of fans) | Using 650 W DC power modules |
| Not providing the PoE function: 207.4 W | |
| 100% PoE loads: 940 W (system power consumption: 200.8 W, PoE: 739.2 W) | |
| Using 1150 W AC or 1000 W AC power modules | |
| Not providing the PoE function: 236.8 W | |
| 100% PoE loads: 1724.4 W (system power consumption: 284.4 W, PoE: 1440 W) |
Huawei S6720-52X-PWH-SI Features
l S6720-SI supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTIs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level link protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, further improving bandwidth use efficiency.
l S6720-SI supports G.8032, also called Ethernet Ring Protection Switching (ERPS). ERPS is based on traditional Ethernet MAC and bridging functions. It uses the mature Ethernet OAM and Ring Automatic Protection Switching (Ring APS or R-APS) technologies to implement millisecond-level protection switching on Ethernet. ERPS supports multiple services and provides flexible networking options, reducing the OPEX and CAPEX.
l S6720-SI supports SNMPv1/v2/v3 and provides flexible methods for managing devices. Users can manage the S6720-SI using the CLI and Web NMS. The NQA function helps users with network planning and upgrades. In addition, the S6720-SI supports NTP, SSH v2, HWTACACS, RMON, log hosts, and port-based traffic statistics.
l S6720-SI supports GVRP, which dynamically distributes, registers, and propagates VLAN attributes to reduce the manual configuration workloads of network administrators and ensure correct VLAN configuration.
Huawei S6720-52X-PWH-SI Ordering Info
| Item | Product Description |
| 1 | S6720-26Q-SI-24S bundle (24 x 10GE SFP+, 2 x 40GE QSFP+, with 1 150W AC power supply) |
| 2 | S6720S-26Q-SI-24S bundle (24 x 10GE SFP+, 2 x 40GE QSFP+, with 1 150W AC power supply) |
| 3 | S6720-32X-SI-32S bundle (32 x 10GE SFP+, with 1 150W AC power supply) |
| 4 | S6720-32C-SI-AC bundle (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, with 1 interface slot, with 1 150W AC power supply) |
| 5 | S6720-32C-SI-DC bundle (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, with 1 interface slot, with 1 150W DC power supply) |
| 6 | S6720-32C-PWH-SI (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, PoE++, with 1 interface slot, without power supply) |
| 7 | 2-port 40GE QSFP+ interface card |
| 8 | 4-port 10GE SFP+ interface card |
| 9 | 150W AC Power Module |
| 10 | 150W DC Power Module |
| 11 | 580W AC PoE Power Module |
| 12 | 650W DC PoE Power Module |
| 13 | 1000W AC PoE Power Module |
| 14 | 1150W AC PoE Power Module |

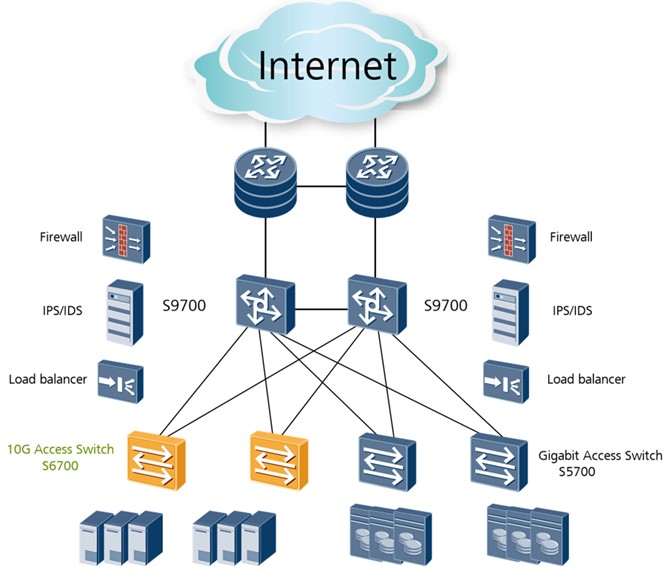

Huawei S6720-52X-PWH-SI Networking and Applications
