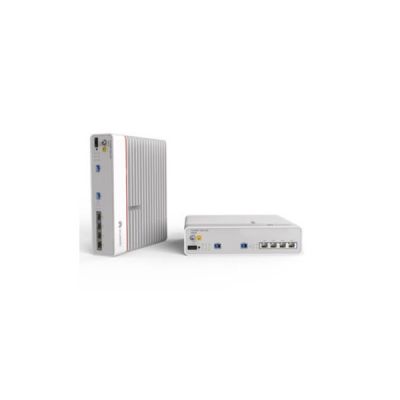

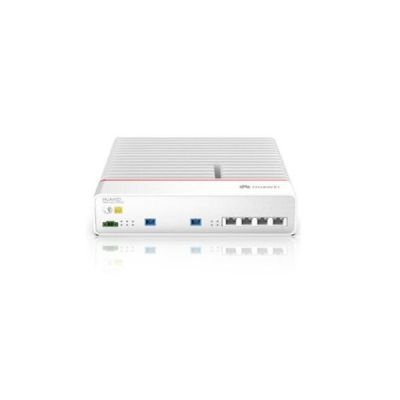

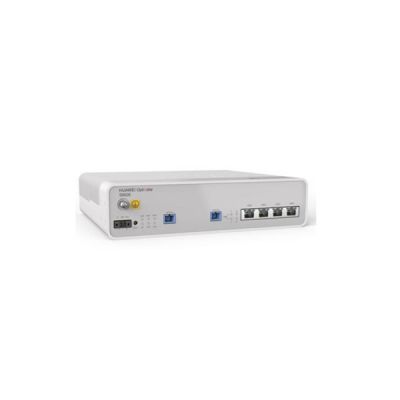

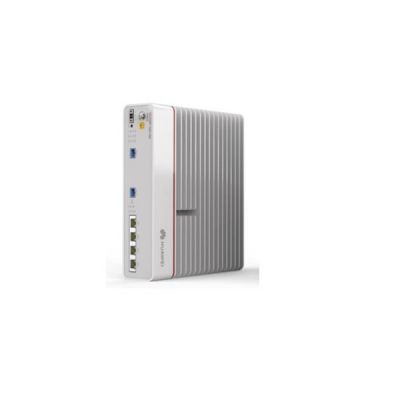

OptiXstar S892E
2929.89

OptiXstar S892E

$2,929.89

Optical Network Unit for enterprise campus use and video backhaul with XGS-PON uplink access four GE ports, and one 2.5 GE port

- +
Availability:In stock
SKU Huawei OptiXstar S892E
Brand Huawei
Details

Brand Huawei
Model OptiXstar S892E
Network Port 1–2 x XGS-PON
User Port 4 x 10 GE
System Power Supply 48 V DC, 5A
Dimensions (H x W x D) 60 x 250 x 210 mm
Weight (Without Power Adapter) Approximately 1.8 kg
Operating Temperature –40°C to 55°C
Authentication 802.1X
Maximum Power Consumption Approximately 200 W
Installation Mode Support network box installation
Operating Humidity 5–95% RH (non-condensing)
Power Adapter Input 100–240 V AC, 50/60 Hz
Maximum PoE Power Consumption Gross power up to 180 W, GE ports support up to 90 W
Surge Protection GE: common mode 4 kV; differential mode 1.5 kV
AC power: common mode 6 kV; differential mode 6 kV
GPON Port Port type: SC/UPC
XGS-PON
Class N1/N2
Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s
Ethernet Electrical Port PoE++, complying with IEEE 802.3bt/IEEE 802.3at/IEEE 802.3af
Port type: RJ-45
Auto ports speed (1/2.5/5/10 Gbit/s)
Auto-MDI/MDIX
