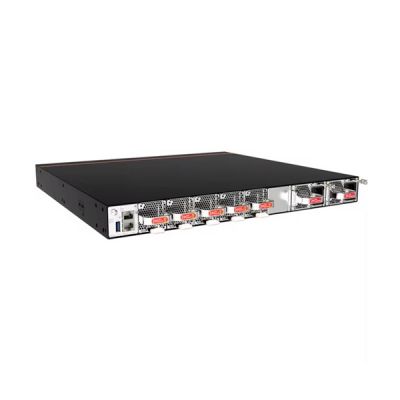

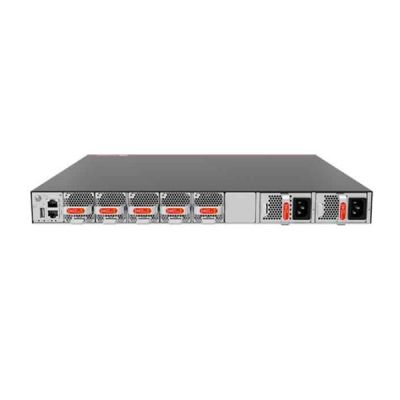

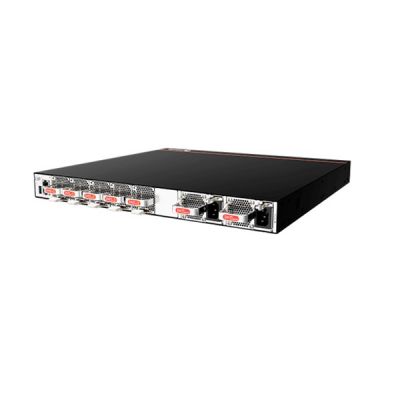

CloudEngine S6750-H36C
9269.38
Details
CloudEngine S6750-H36C is a next-generation enterprise-class core switch with 32 × 40/100 GE QSFP28, 4 x 40/100 GE QSFP28 ports, 1+1 power backup. It offers Forwarding performance: 1200 Mpps and Switching capacity: 7.2Tbps/ 8Tbps. The switch provides high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). They build on an industry-leading software and hardware platform and are purpose-built with security, IoT, and cloud in mind. With these traits, S6750-H can be widely used in enterprise campuses, colleges/universities and other scenarios.
What's more, S6750-H series 100GE switches support free mobility, enables consistent user experience no matter the user location or IP address, fully meeting enterprises' demands for mobile offices. The product also supports VXLAN to implement network virtualization, achieving multi-purpose networks and multi-network convergence for greatly improved network capacity and utilization. As such, CloudEngine S6750-H series 100GE switches are an ideal choice for building next-generation IoT converged networks in terms of cost, flexibility, and scalability.

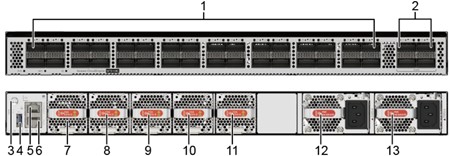

| 1, 32 40GE/100GE QSFP28 Ethernet optical interfaces | 2, 40GE/100GE QSFP28 Ethernet optical interfaces |
| 3, Grounding screw | 4, 1 USB port |
| 5, 1 Console interface | 6, 1 ETH management interface |
| 7, Fan module slot 1 | 8, Fan module slot 2 |
| 8, Fan module slot 3 | 10, Fan module slot 4 |
| 11, Fan module slot 5 | 12, Power module slot 1 |
| 13, Power module slot 2 |
Huawei CloudEngine S6750-H36C Specifications
| Item | Description |
| Model | S6750-H36C |
| Part No | 02355UEK |
| Port | 32×40/100 GE QSFP28, 4x40/100 GE QSFP28 ports |
| Dimensions (W x D x H, excluding packaging) [mm] | Basic dimensions (depth does not include the distance of the protruding structural parts of the front and rear panels): 442.0mm × 420.0mm × 43.6mm Maximum dimensions (depth is the maximum distance from the protruding port of the front panel to the handle of the rear panel module): 442.0mm × 446.5mm × 43.6mm |
| Dimensions (W x D x H, including packaging) [mm] | 650.0mm×550.0mm×185.0mm |
| Case height [U] | 1U |
| Chassis material | Metal |
| Weight (excluding packaging) [kg] | 6.72kg |
| Weight (including packaging) [kg] | 11kg |
| Typical power consumption [W] | ATIS standard 30% traffic, dual power supply: 537W |
| Typical cooling value [BTU/hour] | ATIS standard 30% traffic, dual power supply: 1832.30 |
| Maximum power consumption [W] | ATIS standard 100% flow, dual power supply: 558W High temperature 45°C, 100% flow, long-distance optical module, dual power supply: 679W |
| Maximum cooling value [BTU/hour] | ATIS standard 100% flow, dual power supply: 1903.95 High temperature 45°C, 100% flow, long-distance optical module, dual power supply: 2316.82 |
| Static power consumption [W] | 317W |
| MTBF [years] | 27.77years |
| Availability | > 0.99999 |
| Noise at room temperature (sound power) [dB(A)] | 57.7dB(A) |
| Noise at room temperature (sound pressure) [dB(A)] | 57.2dB(A) |
| Number of expansion slots | 0 |
| Number of power slots | 2 |
| Number of fan modules | 5 |
| Power Redundancy | 1+1 |
| Support the simultaneous configuration of pluggable AC and DC power modules on the same device. | |
| Long-term Operating Environmental Temperature [°C] | -5°C to 45°C (0m to 1800m elevation) |
| Operating Environmental Temperature Variation Limit [°C] | From 1800m to 5000m, the maximum temperature specification decreases by 1°C for every 220m increase in altitude. The equipment does not support startup in environmental temperatures below 0°C. When using the optional QSFP-100G-ER4 optical module, the operating temperature is -5°C to 40°C. |
| Storage Temperature [°C] | -40°C～+70°C |
| Long-term Operating Environmental Relative Humidity [RH] | 5%RH to 95%RH, non-condensing |
| Long-term Operating Altitude [m] | 0m～5000m |
| Storage Altitude [m] | 0m～5000m |
| Power Supply | Pluggable power supply |
| Rated Input Voltage [V] | Input: 100V AC to 240V AC; 50/60Hz |
| High voltage DC input: 240V DC | |
| DC input: -48V DC to -60V DC | |
| Input Voltage Range [V] | AC input: 90V AC to 290V AC; 45Hz to 65Hz |
| High voltage DC input: 190V DC to 290V DC | |
| DC input: -38.4V DC to -72V DC | |
| Maximum Input Current [A] | The current specifications are related to the use of the pluggable power module, for details see the pluggable power module. |
| Memory | 8GB |
| Flash | Physical space 4GB |
| Console Interface Type | RJ45 |
| Eth Management Port Type | RJ45 |
| USB Interface | Support |
| Real-Time Clock (RTC) | Support |
| RPS Input | No Support |
| Service Port Lightning Protection [kV] | - |
| Power Port Lightning Protection [kV] | Configure the AC power supply module: differential mode ±6kV, common mode ±6kV |
| Configure the DC power supply module: differential mode ±2kV, common mode ±4kV | |
| Three-proof (Dustproof/Waterproof) | IP20 |
| Fan Type | Pluggable Fan |
| Heat Dissipation Method | Air cooling, intelligent speed adjustment |
| Airflow Direction | Forward air intake, rear air exhaust |
| PoE Function | No Support |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei CloudEngine S6750-H36C Features
l S6750-H series 100GE switches support fully customizing the forwarding mode, forwarding behavior, and search algorithm of traffic. New services are implemented through microcode programming. Customers do not need to replace new hardware and new services can be rolled out within six months.
l S6750-H series 100GE switches provide open interfaces and user-defined forwarding processes to meet customized service requirements of enterprises. Enterprises can use multi-layer open interfaces to develop new protocols and functions independently. They can also hand over their requirements to vendors and jointly develop them to build an enterprise-dedicated campus network.
l S6750-H series 100GE switches authenticates both wired and wireless users, ensuring a consistent user experience no matter whether they are connected to the network through wired or wireless access devices. The unified user management function supports various authentication methods, including 802.1x, MAC address, and is capable of managing users based on user groups, domains, and time ranges. These functions visualize user and service management and boost the transformation from device-centric management to user experience-centric management.
l S6750-H series 100GE switches provide excellent quality of service(QoS) capabilities and supports queue scheduling and congestion control algorithms. Additionally, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement fine-grained scheduling of data flows, meeting service quality requirements of different user terminals and services.
Huawei CloudEngine S6750-H36C Ordering Info
| Model | Product Description |
| CloudEngine S6750-H36C | CloudEngine S6750-H36C (36*100GE QSFP28 ports, without power module) |
| PAC1K2S12-PB | 1200W AC power module |
| PDC1K2S12-CE | 1200W DC power module |
| FAN-031A-B | Fan Module |
| N1-S67H-M-Lic | S67XX-H Series Basic SW,Per Device |
| N1-S67H-M-SnS1Y | S67XX-H Series Basic SW,SnS,Per Device,1Year |
| N1-S67H-F-Lic | N1-CloudCampus,Foundation,S67XX-H Series,Per Device |
| N1-S67H-F-SnS | N1-CloudCampus,Foundation,S67XX-H Series,SnS,Per Device |
| N1-S67H-A-Lic | N1-CloudCampus,Advanced,S67XX-H Series,Per Device |
| N1-S67H-A-SnS | N1-CloudCampus,Advanced,S67XX-H Series,SnS,Per Device |
| N1-S67H-FToA-Lic | N1-Upgrade-Foundation to Advanced,S67XX-H,Per Device |
| N1-S67H-FToA-SnS | N1-Upgrade-Foundation to Advanced,S67XX-H,SnS,Per Device |
| N1-AM-30-Lic | N1-CloudCampus, Add-On Package, Access Management, Per 30 Endpoints |
| N1-AM-30-SnS1Y | N1-CloudCampus, Add-On Package, Access Management, Software Subscription and Support, Per 30 Endpoints, 1 Year |
| N1-EPNP-30-Lic | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Per 30 Endpoints |
| N1-EPNP-30-SnS1Y | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Software Subscription and Support, Per 30 Endpoints, 1 Year |
| N1-APP-X7FSwitch | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Per Device |
| N1-APP-X7FSwitch-SnS1Y | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Software Subscription and Support, Per Device, 1 Year |

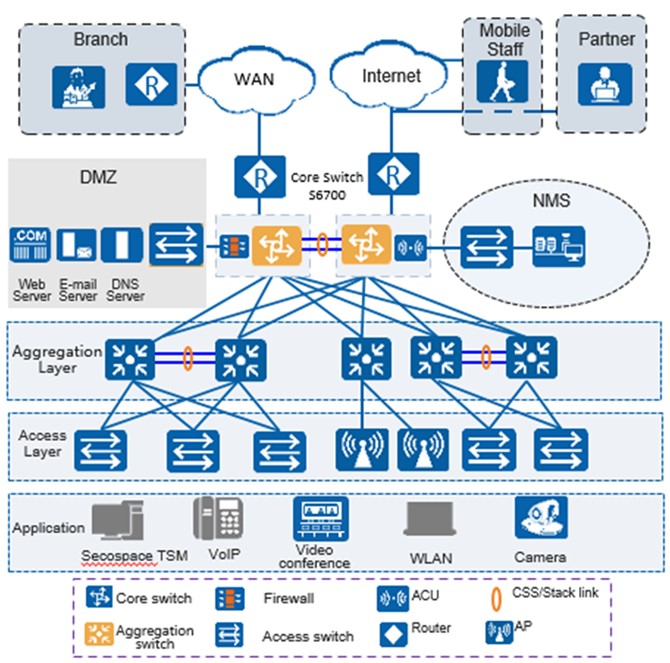

Huawei CloudEngine S6750-H36C Networking and Applications
