SmartAX MA5608T
2016.16

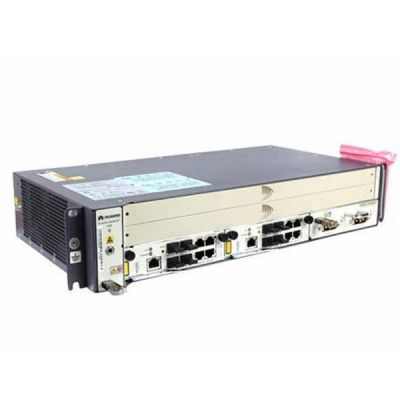

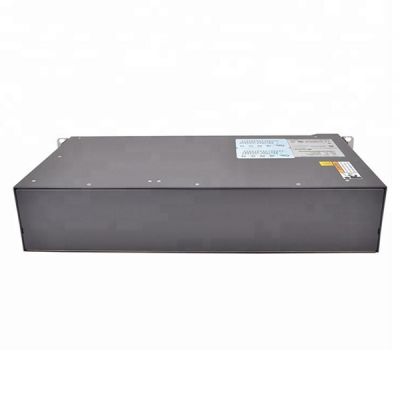

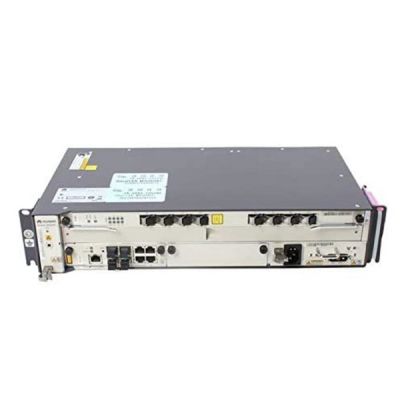

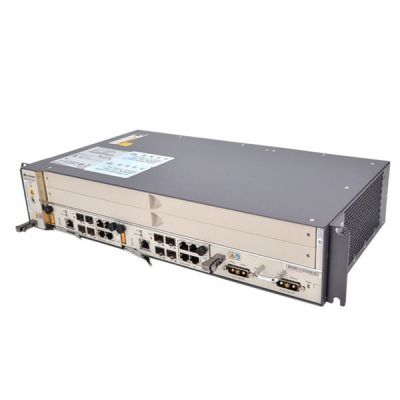

SmartAX MA5608T

$2,016.16

Huawei Mini OLT Compact design flexible deployment of xPON, VDSL2+POTS Combo, and Ethernet for residential or business service use

- +
Availability:In stock
SKU Huawei SmartAX MA5608T
Brand Huawei
Details

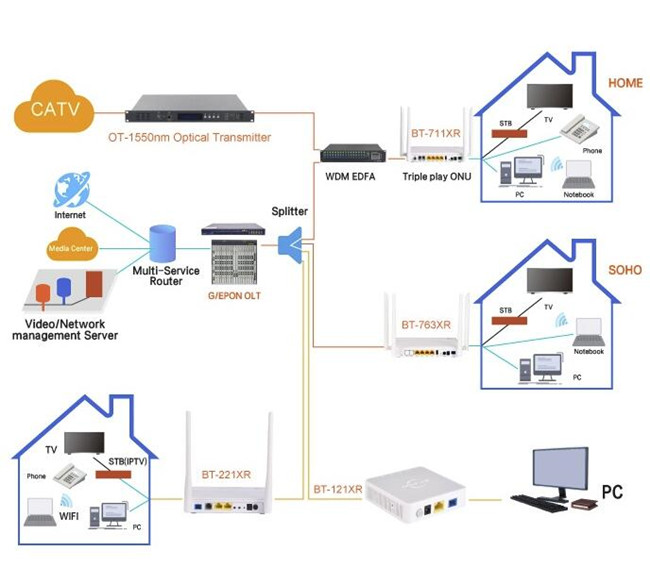

Huawei SmartAX MA5608T Mini OLT is designed to address Fiber to the premise (FTTP) or deep fiber deployment scenarios where a large OLT chassis may not be the best fit for a variety of reasons. This becomes a perfect complement to the other MA5600 series larger OLTs and offers the same carrier grade features and performance. MA5608T is an ideal solution for deployments in locations such as space-constrained huts, outdoor cabinets or building basements. It has AC and DC powering options, extended temperature range, and offers easy installation.

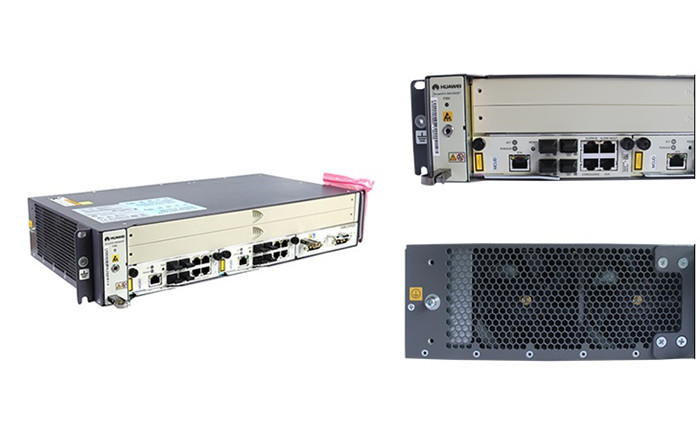

Huawei SmartAX MA5608T

Huawei SmartAX MA5608T Specification

Dimensions (W x D x H,   442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets) 535mm×244.5mm×88.1mm, for ETSI cabinet
NOTE:ETSI standard dimension is to add the ETSI mounting bracket on the IEC mounting bracket.
482.6mm×244.5mm×88.1mm, for IEC cabinet
Weight (empty chassis) 3.55KG
Power supply mode DC or AC
Rated voltage DC power supply: -48 V / -60 V
AC power supply: 110 V / 220 V
Working voltage range DC power supply: -38.4 V to -72 V
AC power supply: 100 V to 240 V
Maximum input current DC power supply: 10 A
AC power supply: 6 A
Working environment temperature -40°C to +65°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m

Huawei SmartAX MA5608T HighLights

Compact and modular design: 2 RU, 19” rack mounting, 12” depth.

I/O Slots: 2 slots for service cards, 2 slots for switch and control cards, 1 slot for redundant power input.

Switch and control card with uplink ports: 60 Gbps switch card with integrated 2 port 10GbE  and 2 port 1GbE WAN uplinks.

Service cards: 8 or 16 port GPON, 4 port XG-PON1, 48 port VDSL2+POTS Combo.

All service cards are interchangeable with other MA5600 Series OLTs.

Huawei SmartAX MA5608T

Large capacity in Small Size –

•       200 Gbps backplane

•       20 Gbps/slot capacity

•       120 Gbps load sharing switching capacity

•       2x10 Gbps uplink capacity

Advanced Layer 2 Functions –

•       QoS with traffic classification and L2 forwarding policy

•       Standard VLAN, QinQ VLAN, VLAN stacking

•       Flexible QinQ VLAN tagging

•       DHCP Option 82 in L2 mode

•       MEF-9 & MEF-14  certification

L3 Functions for maximum deployment flexibility –

•       ARP, ARP proxy

•       DHCP relay, DHCP proxy

•       Static routing

•       Dynamic routing: RIP, OSPF, ECMP

•       Multicast: IGMP v2/v3, IGMP proxy, IGMP snooping

Huawei SmartAX MA5608T Service Boards

10G GPON port XGBC: 4 Ports Per Board
XGBD: 8 Ports Per Board
GPON port GPBD/GPBH: 8 Ports Per Board
GPFD: 16 Ports Per Board
P2P GE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Per Board, Two-fiber bi-directional: 24 Ports Per Board
P2P FE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Per Board, Two-fiber bi-directional: 24 Ports Per Board
Ethernet optical port ETHB: 8 Ports Per Board
E1 port H802EDTB: 16 Ports Per Board
ADSL2+ ADPD/ADPM/ADPE : 64 Ports Per Board
VDSL2 VDRD : 24 Ports Per Board
VDMF/VCMM : 48 Ports Per Board
VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Per Board
EFM SHDSL SHLM : 16 Ports Per Board
SHGM : 32 Ports Per Board
TDM SHDSL H802EDTB: 16 Ports Per Board
POTS ASPB : 64 Ports Per Board
ADSL2+&POTS CAME : 48 Ports Per Board
VDSL2&POTS CVME : 48 Ports Per Board
CCPE : 64 Ports Per Board
ISDN BRA DSRD/DSRE :32 Ports Per Board
