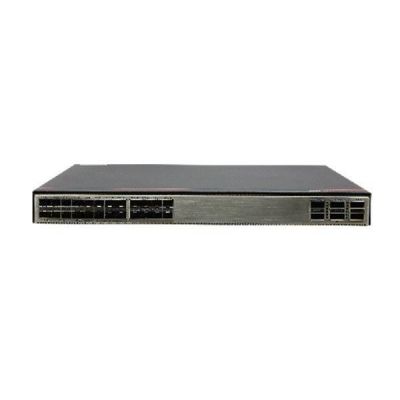

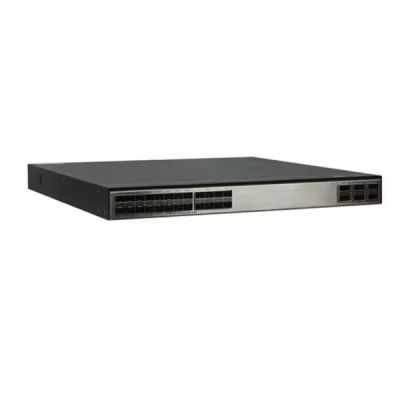

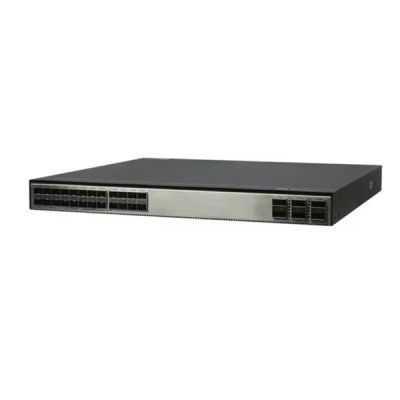

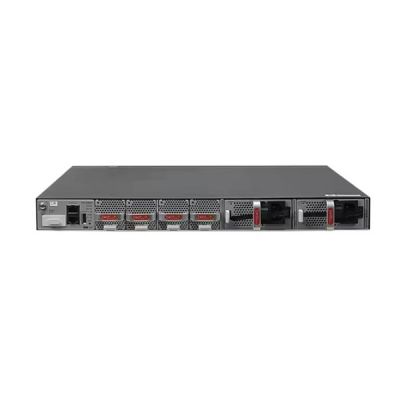

CloudEngine S6730S-S24X6Q-A
1885.15
Details
Huawei CloudEngine S6730S-S24X6Q-A is a new generation fixed switch, to provide 10GE downlink ports as well as 40/100 GE uplink ports. The product can be used to provide high speed access for 10 Gbit/s access to high density servers or function as a core/aggregation switch on a campus network to provide 40Gbit/s rate. In addition, S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and Metropolitan Area Network.

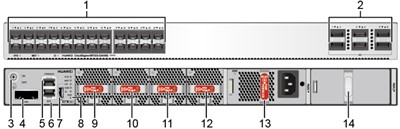

| 1, Twenty-four 10GE SFP+ ports | 2, Six 40GE QSFP+ optical ports |
| 3, Ground screw | 4, SSD card slot |
| 5, One console port | 6, One ETH management port |
| 7, One USB port | 8, One PNP button |
| 9, Fan module slot 1 | 10, Fan module slot 2 |
| 11, Fan module slot 3 | 12, Fan module slot 4 |
| 13, Power module slot 1 | 14, Power module slot 2 |
Huawei CloudEngine S6730S-S24X6Q-A Specifications
| Item | Descriptions |
| Part NO | 02353AJX 02353AJX-001 02353AJX-003 02353AJX-004 |
| Memory (RAM) | 4GB |
| Flash | Physical space is 2GB, and the actual available space can be checked using the display version command. |
| MeanTime Between Failures MTBF (years) | 62.27 |
| Availability | over 0.99999 |
| Availability | NA |
| Power Port Lightning Protection Specs | Configure the AC power supply module: differential mode ±6kV, common mode ±6kVConfigure the DC power supply module: differential mode ±2kV, common mode ±4kV |
| Weight (including packaging) | 9.84kg |
| Stacking Port | Any 10GE SFP interface (up to 16 physical interfaces supported) Any 40GE QSFP interface (up to 6 physical interfaces supported) |
| RTC | Support |
| RPS | No Support |
| PoE | No Support |
| Rated Voltage Range |
Input: 100V AC to 240V AC; 50/60Hz High voltage DC input: 240V DC DC input: -48V DC to -60V DC
|
| Maximum Voltage Range |
Communication input: 90V AC to 290V AC; 45Hz to 65HzHigh voltage DC input: 190V DC to 290V DCDC input: -38.4V DC to -72V DC
|
| Max power consumption (100% flow, fan at full speed) | 249W |
| Typical power consumption (30% flow, tested according to ATIS standard) | 135W |
| Working temperature range |
-5°C～+45°C（0m～1800m Altitude）
|
| Storage temperature range | -40°C～+70°C |
| Normal temperature noise (27°C, sound power) | Less than 65dB(A) |
| Relative humidity range | 5%RH to 95%RH, non-condensing |
| Working altitude | 0m～5000m |
| Product Certification | Support EMC certificationSupport safety certificationSupport production certification |
| Dimensions (Width × Depth × Height) | Basic dimensions (depth excluding the distance from the protruding structural components of the front and rear panels): 442.0mm × 420.0mm × 43.6mmMaximum dimensions (depth from the protruding ports on the front panel to the maximum distance of the rear panel module handle): 442.0mm × 446.0mm × 43.6mm |
Huawei CloudEngine S6730S-S24X6Q-A Networking and Applications
More Information
| Brand | Huawei |
|---|
