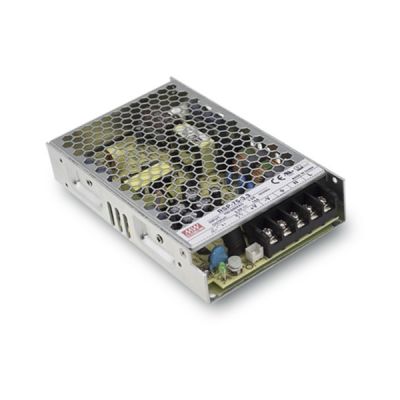

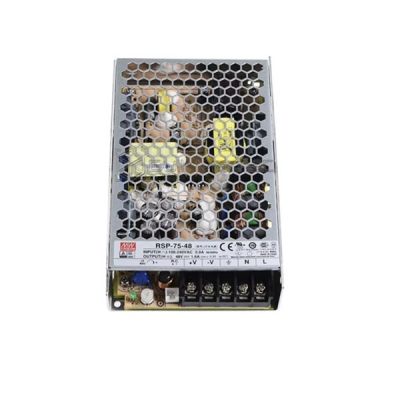

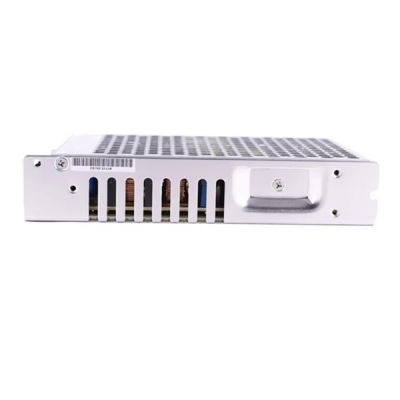

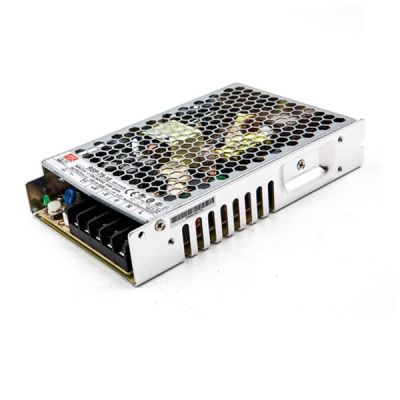

Meanwell RSP-75 Series is a 75W single output enclosed type AC/DC power supply. The series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70 ℃. Thanks to the high efficiency, long longevity and high reliability, Meanwell RSP-75 Series functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell RSP-75 Series Encoding
| RSP | Series Name |
| 75 | Output Wattage |
| 3.3 | Output Voltage (3.3V/5V/7.5V/12V/13.5V/15V/24V/27V/48V) |
Meanwell RSP-75 Series Model Specifications
| Model | RSP-75-3.3 | RSP-75-5 | RSP-75-7.5 | RSP-75-12 | RSP-75-13.5 | RSP-75-15 | RSP-75-24 | RSP-75-27 | RSP-75-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 15A | 15A | 10A | 6.3A | 5.6A | 5A | 3.2A | 2.8A | 1.6A | |
| CURRENT RANGE | 0-15A | 0-15A | 0-10A | 0-6.3A | 0-5.6A | 0-5A | 0-3.2A | 0-2.8A | 0-1.6A | |
| RATED POWER | 49.5W | 75W | 75W | 75.6W | 75.6W | 75W | 76.8W | 75.6W | 76.8W | |
| RIPPLE & NOISE (max.) mVp-p | 80 | 80 | 80 | 120 | 120 | 120 | 120 | 120 | 200 | |
| VOLTAGE ADJ. RANGE | 3.14-3.63V | 4.75-5.5V | 7.13-8.25V | 11.4-13.2V | 12.8-14.9V | 14.3-16.5V | 22.8-26.4V | 25.7-29.7V | 45.6-52.8V | |
| VOLTAGE TOLERANCE | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |||||||||
| HOLD UP TIME | 16ms at full load | |||||||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 76.00% | 82.00% | 84.00% | 85.00% | 85.00% | 86.00% | 87.00% | 88.00% | 89.00% | |
| AC CURRENT (Typ.) | 0.9A/115VAC 0.5A/230VAC | |||||||||
| INRUSH CURRENT (Typ. ) | COLD START 35A/230VAC | |||||||||
| LEAKAGE CURR ENT | <2mA / 240VAC | |||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 3.63-4.46V | 5.5-6.75V | 8.25-10.13V | 13.2-16.2V | 14.85-18.23V | 16.5-20.25V | 26.4-32.4V | 29.7-36.45V | 52.8-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
| FUNCTION | REMOTE CONTROL | CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF | ||||||||
| ENVIRONMENT | WORKING TEMP | -25 ~ +70℃ (Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||||
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | |||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1,BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1 approved |
||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |||||||||
| Others | MTBF | 296.7K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 159*97*30mm (L*W*H) | |||||||||
| PACKING | 0.44Kg; 30pcs/14.2Kg/0.9CUFT | |||||||||
Meanwell RSP-75 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 89%
l Cooling byfree air convection
l Built-in remote ON-OFF control
l Protections: Short circuit/Overload/Over voltage/Over temperature
l LED indicator for power on
l 3 years warranty
Meanwell RSP-75 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l RF application

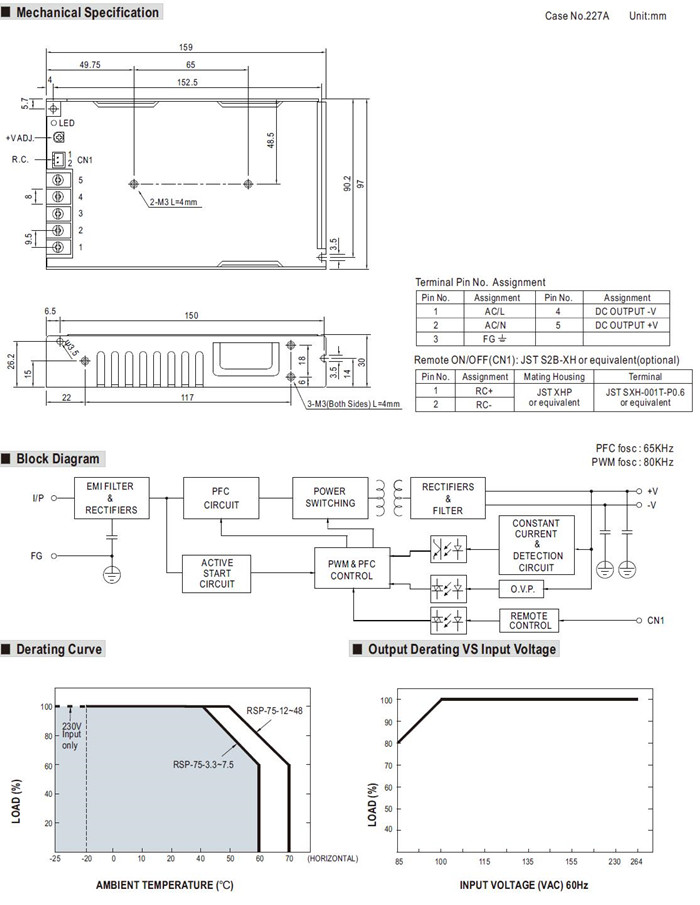

Meanwell RSP-75 Series Mechanical Diagram
More Information
