RSP-75-12

$49.36

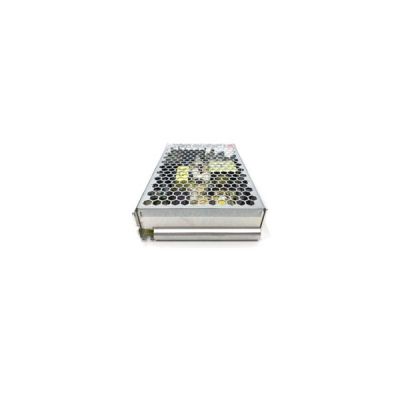

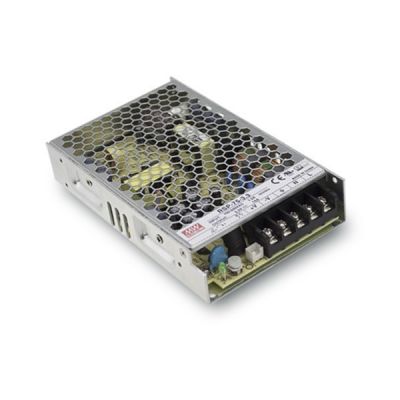

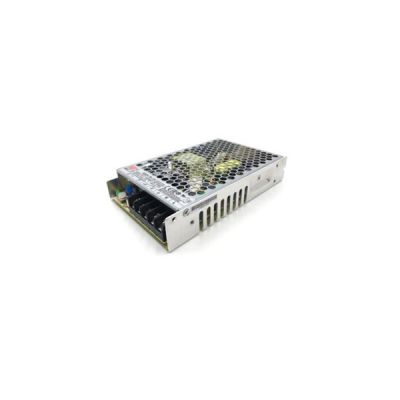

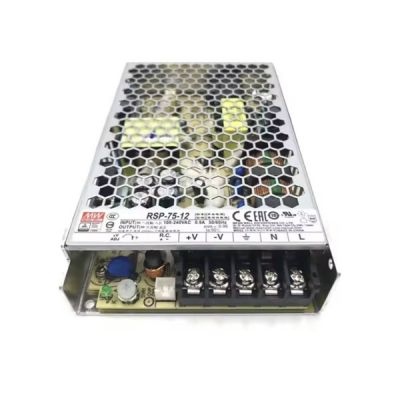

Meanwell 75W Single Output Power Supply with PFC and 12V6.3A0-6.3A75.6W12011.4-13.2V±2%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell RSP-75-12
Brand Meanwell
Details

Meanwell RSP-75-12 is a 75W single output enclosed type AC/DC power supply with 12V6.3A0-6.3A75.6W. The unit runs for 85-264VAC input voltage and gives the DC output mostly demanded from the industry. Besides, RSP-75-12 is cooled by free air convection, and work under the temperature up to 70 ℃.In view of high efficiency, long longevity and high reliability, Meanwell RSP-75-12 functions as a high price-to-performance power supply solution for various industrial applications.

Meanwell RSP-75-12 Specifications

Meanwell RSP-75-12 Specifications

Model RSP-75-12
Output DC VOLTAGE 12V
RATED CURRENT 6.3A
CURRENT RANGE 0-6.3A
RATED POWER 75.6W
RIPPLE & NOISE (max.) mVp-p 120
VOLTAGE ADJ. RANGE 11.4-13.2V
VOLTAGE TOLERANCE ±2%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 600ms, 30ms at full load
HOLD UP TIME  16ms at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  85.00%
AC CURRENT (Typ.) 0.9A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ. ) COLD START 35A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 13.2-16.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF
ENVIRONMENT WORKING TEMP -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1,BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1,
BSMI CNS14336-1 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 296.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*30mm (L*W*H)
PACKING 0.44Kg; 30pcs/14.2Kg/0.9CUFT

Meanwell RSP-75-12 Features

l  LED indicator for power on

l  3 years warranty

l  Universal AC input/ Full range

l  Built-in active PFC function

l  High efficiency up to 89%

l  Cooling byfree air convection

l  Built-in remote ON-OFF control

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell RSP-75-12 Features

Meanwell RSP-75-12 Applications

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

l  Burn-in facility

l  RF application

Meanwell RSP-75-12 Applications

Meanwell RSP-75-12 Mechanical Diagram

Meanwell RSP-75-12 Mechanical Diagram
