Meanwell 320W Single Output with PFC Function

- +
Availability:In stock
SKU Meanwell RSP-320
Brand Meanwell
Details

Meanwell RSP-320 Series is a 320W single output enclosed type AC/DC power supply with PFC functions. The entire series operates for 88-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. RSP-320 Series supply is cooled by the built-in fan with fan speed control and could work for the temperature up to 70℃. Due to its high efficiency, long longevity and high reliability, Meanwell RSP-320 is an ideal high price-to-performance power supply solution for various applications.

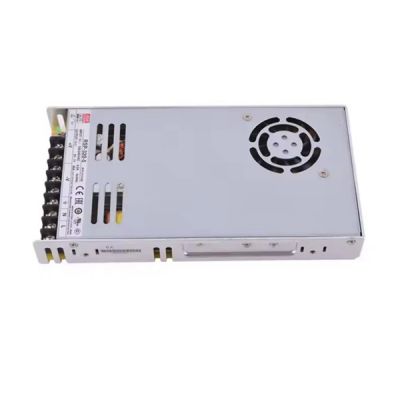

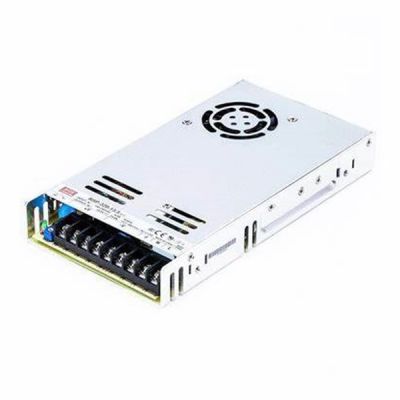

Meanwell RSP-320 Series PICTURE

Meanwell RSP-320 Series Model Specifications

Model RSP-320-2.5 RSP-320-3.3 RSP-320-4 RSP-320-5 RSP-320-7.5 RSP-320-12 RSP-320-13.5 RSP-320-15 RSP-320-24 RSP-320-27 RSP-320-36 RSP-320-48
Output DC VOLTAGE 2.5V 3.3V 4V 5V 7.5V 12V 13.5V 15V 24V 27V 36V 48V
RATED CURRENT 60A 60A 60A 60A 40A 26.7A 23.8A 21.4A 13.4A 11.9A 8.9A 6.7A
CURRENT RANGE 0-60A 0-60A 0-60A 0-60A 0-40A 0-26.7A 0-23..8A 0-21.4A 0-13.4A 0-11.9A 0-8.9A 0-6.7A
RATED POWER W 150W 198W 240W 300W 300W 320.4W 321.3W 321W 321.6W 321.3W 320.4W 321.6W
RIPPLE & NOISE (max.) mVp-p 100 100 100 150 150 150 150 150 150 200 220 240
VOLTAGE ADJ. RANGE 2.35-2.85V 2.97-3.8V 3.7-4.3V 4.5-5.5V 6-9V 10-13.2V 12-15V 13.5-18V 20-26.4V 26-31.5V 32.4-39.6V 41-56V
VOLTAGE TOLERANCE ±2% ±2% ±2% ±2% ±2% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2% ±0.2%
LOAD REGULATION ±1.5% ±1.5% ±1% ±1% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME  8ms at full load 230VAC /115VAC
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  75.50% 79.50% 81.00% 83.00% 88.00% 88.00% 88.00% 88.50% 89.00% 89.00% 89.50% 90.00%
AC CURRENT (Typ.) 2.7A/115VAC 1.5 A/230VAC 4A/115VAC 2A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 2.88-3.38V 3.8-4.5V 4.5-5.3V 5.75-6.75V 9.4-10.9V 13.8-16.2V 15.7-18.4V 18.8-21.8V 27.6-32.4V 32.9-38.8V 41.4-48.6V 58.4-68V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 206.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.9Kg; 15pcs/14.5Kg/0.67CUFT

Meanwell RSP-320 Series Features

l  Universal AC input/Full range

l  Built-in active PFC function

l  High efficiency up to 90%

l  Forced air cooling by built-in DC Fan with fan speed control function

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Optional conformal coating

l  LED indicator for power on

l  3 years warranty

Meanwell RSP-320 Series Certificate

Meanwell RSP-320 Series Applications

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

l  Burn-in facility

l  RF application

Meanwell RSP-320 Series Applications

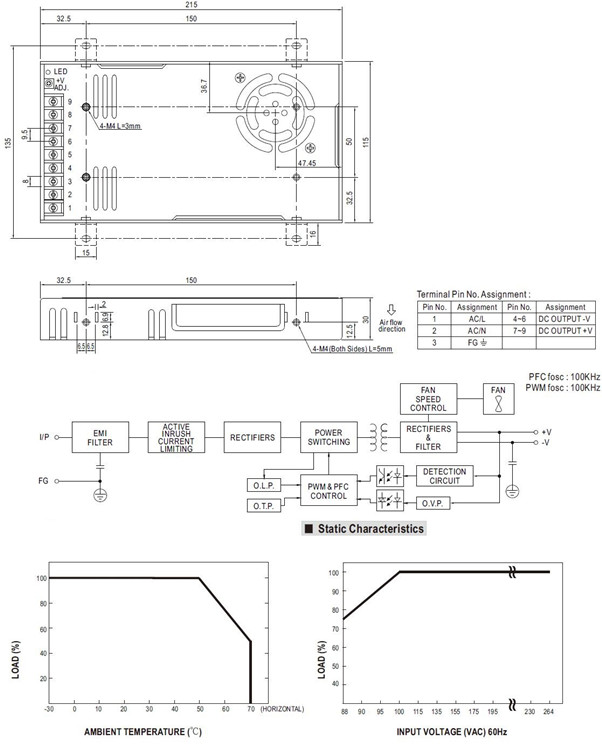

Meanwell RSP-320 Series Mechanical Diagram

Meanwell RSP-320 Series mechanical diagram
