OWA-200U
40.04
Details

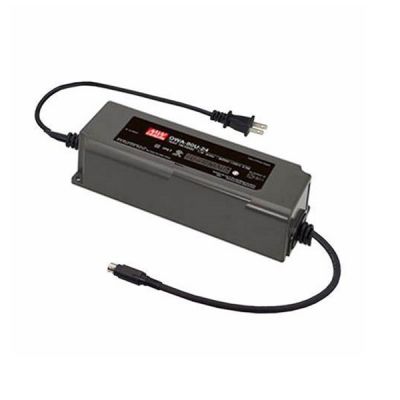

Meanwell OWA-200U Series is a 200W single-output external power supply. The product pairs the North American type of AC plug and prevailing DC connectors. At the same time, OWA- 200U, working like an adaptor, simplifies the connection with any electric device which needs waterproof function. In addition, the entire series is certified with the UL LISTED for dry and damp locations. As a classⅡ(no FG) design, the enclosure of OWA-200U is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the efficiency reaching high up to 94%, OWA-200U is cooled by free air convection. The working temperature ranges from -40℃ to +70℃. Considering its longevity, high efficiency and excellent reliability, Meanwell OWA-200U Series serves as an ideally suitable solution for various applications.
Meanwell OWA-200U Series Encoding
| OWA | Series Name |
| 200 | Output wattage |
| U | North American type of AC plug |
| 12 | Output Voltage |
Meanwell OWA-200U Series Model Specifications
| ORDER NO. | OWA-200U-12 | OWA-200U-20 | OWA-120U-24 | OWA-200U-36 | OWA-200U-42 | OWA-200U-48 | OWA-200U-54 | |
| OUTPUT | DC VOLTAGE | 12V | 20V | 24V | 36V | 42V | 48V | 54V |
| RATED CURRENT | 15A | 10A | 8.3A | 5.5A | 4.75A | 4.17A | 3.71A | |
| RATED POWER | 180W | 200W | 199W | 199W | 199W | 200W | 200W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±4.0% | ±4.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±4.0% | ±4.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | |
| SETUP, RISE TIME | 500ms, 80ms 230VAC / 115VAC | |||||||
| HOLD UP TIME (Typ.) | 10ms at full load 230VAC / 115VAC | |||||||
| INPUT | VOLTAGE RANGE | 100 ~ 264VAC 142 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC at full load | |||||||
| EFFICIENCY (Typ.) 115VAC | 87.00% | 88.00% | 89.00% | 89.50% | 89.00% | 89.00% | 89.50% | |
| EFFICIENCY (Typ.) 230VAC | 87.50% | 89.00% | 90.00% | 90.50% | 90.00% | 90.00% | 90.50% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.1A / 230VAC | |||||||
| INRUSH CURRENT (Typ.) | COLD START 90A(twidth=300 s measured at 50% Ipeak) at 115VAC COLD START 180A(twidth=450 s measured at 50% Ipeak) at 230VAC |
|||||||
| LEAKAGE CURRENT | <0.125mA / 120VAC <0.25mA / 240VAC | |||||||
| NO LOAD CONSUMPTION | <0.15W | |||||||
| PROTECTION | OVER CURRENT | 105% ~ 150% | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13-18V | 22-27V | 27-34V | 41-49V | 46-57V | 52-65V | 59-70V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1; IP67(for power body) approved; Design refer with UL1012 | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4.2KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to FCC Part15 | |||||||
| Others | MTBF | 2680.8K hrs min. Telcordia SR-332 (Bellcore) 268.5K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 195*68*39.5mm | |||||||
| PACKING | 1.32Kg; 9 pcs/ 11.74 Kg/ 0.79 CUFT | |||||||
Meanwell OWA-200U Series Features
l Universal AC input/Full range
l ClassⅡpower unit, no FG
l Built-in active PFC function
l High efficiency up to 94%
l No load power consumption <0.15W
l Energy efficiency Level VI
l Comply with EU Erp and CoC Version 5
l Fully isolated plastic case with IP67
l Fanless design, cooling by free air convection
l Protections: Short circuit/Over current/Over voltage/Over temperature
l UL LISTED, suitable for dry and damp location
l 5 years warranty
Meanwell OWA-200U Series Applications
l Industrial field PC adaptor
l POS or KIOSK system
l Portable Battery charger
l Electric Lawn mower charger
l General electronic products in dusty or humid environment
l Household Device

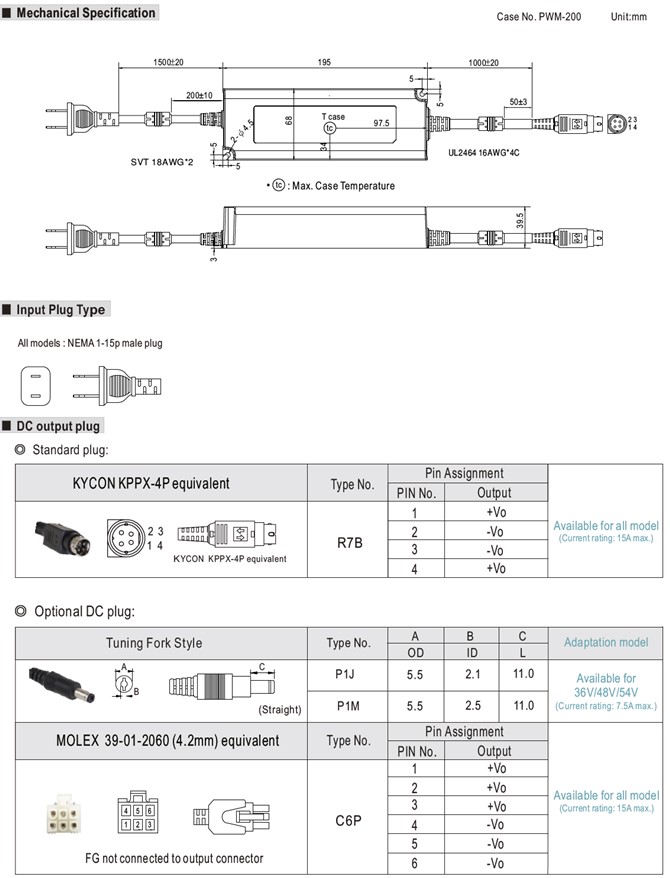

Meanwell OWA-200U Series Mechanical Diagram
