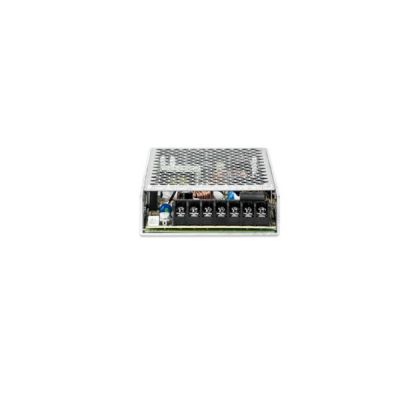

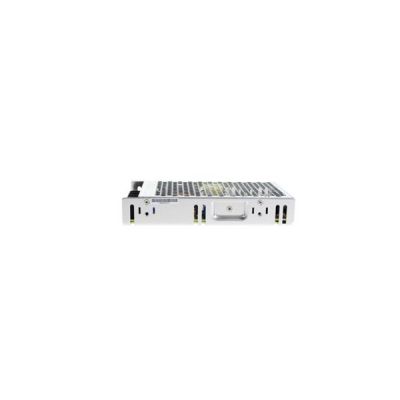

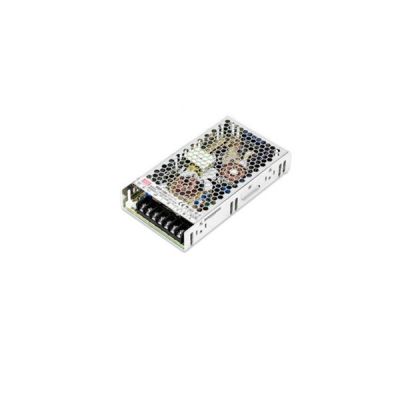

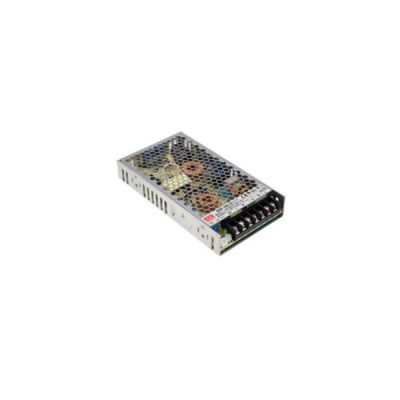

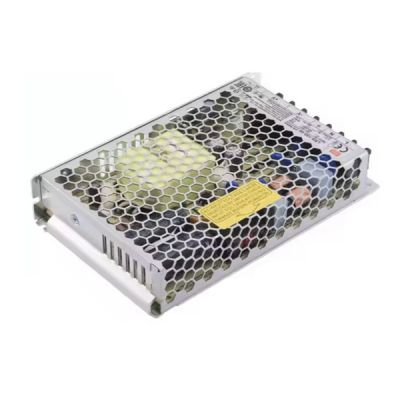

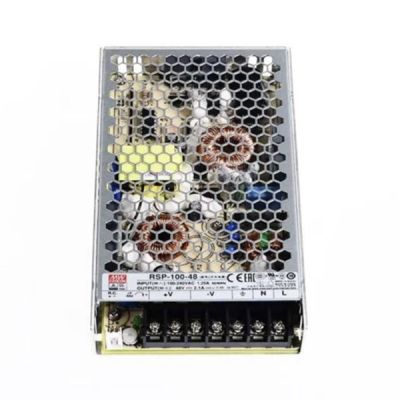

Meanwell 100W Single Output  Enclosed Type AC/DC Power Supply with PFC Function

- +
Availability:In stock
SKU Meanwell RSP-100
Brand Meanwell
Details

Meanwell RSP-100 Series is a 100W single output enclosed type AC/DC power supply. The series operates for 85~264 VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, and work for the temperature up to 70C.Due to its high efficiency, long longevity and high reliability, Meanwell RSP-100 Series is an ideal high price-to-performance power supply solution for various applications.

Meanwell RSP-100 Series Model Specifications

Meanwell RSP-100 Series Model Specifications

Model RSP-100-3.3 RSP-100-5 RSP-100-7.5 RSP-100-12 RSP-100-13.5 RSP-100-15 RSP-100-24 RSP-100-27 RSP-100-48
Output DC VOLTAGE 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V
RATED CURRENT 20A 20A 13.5A 8.5A 7.5A 6.7A 4.2A 3.8A 2.1A
CURRENT RANGE 0-20A 0-20A 0-13.5A 0-8.5A 0-7.5A 0-6.7A 0-4.2A 0-3.8A 0-2.1A
RATED POWER 66W 100W 101.25W 102W 101.25W 100.5W 100.8W 102.6W 100.8W
RIPPLE & NOISE (max.) mVp-p 100 100 100 100 100 100 150 150 250
VOLTAGE ADJ. RANGE 3.14-3.63V 4.75-5.5V 7.13-8.25V 11.4-13.2V 12.8-14.9V 14.3-16.5V 22.8-26.4V 25.7-29.7V 45.6-52.8V
VOLTAGE TOLERANCE ±2% ±2% ±2% ±1% ±1% ±1% ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1% ±1% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 600ms, 30ms at full load
HOLD UP TIME  16ms at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  83.00% 86.00% 87.00% 86.00% 86.00% 87.00% 87.00% 87.00% 88.00%
AC CURRENT (Typ.) 1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ. ) COLD START 30A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 3.63-4.46V 5.5-6.75V 8.25-10.13V 13.2-16.2V 14.85-18.23V 16.5-20.25V 26.4-32.4V 29.7-36.45V 52.8-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1 approved, Design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 288.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 179*99*30mm (L*W*H)
PACKING 0.52Kg; 24pcs/14.5Kg/0.81CUFT

Meanwell RSP-100 Series Features

l  Universal AC input/ Full range

l  Built-in active PFC function

l  High efficiency up to 88%

l  Cooling by free air convection

l  Built-in remote ON-OFF control

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  LED indicator for power on

l  3 years warranty

Meanwell RSP-100 Series Features

Meanwell RSP-100 Series Applications

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

l  Burn-in facility

l  RF application

Meanwell RSP-100 Series Applications

Meanwell RSP-100 Series Mechanical Diagram

Meanwell RSP-100 Series Mechanical Diagram
