RSP-100-48
35.47

RSP-100-48

$35.47

Meanwell 100W Single Output  Enclosed Type AC/DC Power Supply with PFC Function and 48V2.1A0-2.1A100.8W25045.6-52.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell RSP-100-48
Brand Meanwell
Details

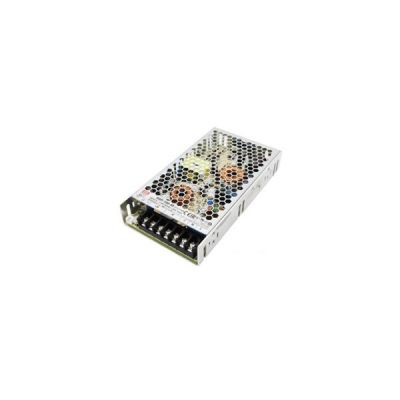

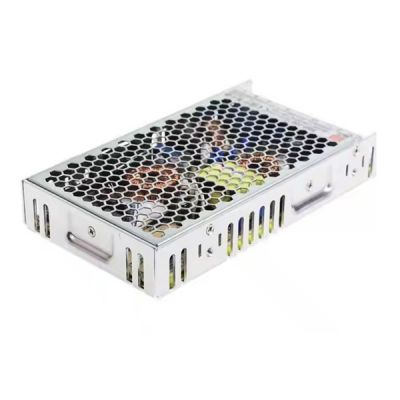

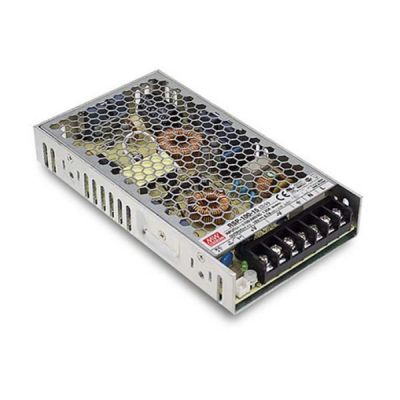

Meanwell RSP-100-48 is a 100W single output enclosed type AC/DC power supply with 48V2.1A0-2.1A100.8W. The unit operates for 85-264 VAC input voltage and offered with the DC output mostly demanded from the industry. RSP-100-48 is cooled by free air convection, and performs for the temperature reaching up to 70℃. Due to its high efficiency, long longevity and high reliability, Meanwell RSP-100-48 is a high price-to-performance power supply solution for various fields.

Meanwell RSP-100-48 Specifications

Meanwell RSP-100-48 Specifications

Model RSP-100-48
Output DC VOLTAGE 48V
RATED CURRENT 2.1A
CURRENT RANGE 0-2.1A
RATED POWER 100.8W
RIPPLE & NOISE (max.) mVp-p 250
VOLTAGE ADJ. RANGE 45.6-52.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 600ms, 30ms at full load
HOLD UP TIME  16ms at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  88.00%
AC CURRENT (Typ.) 1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ. ) COLD START 30A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 52.8-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1 approved, Design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 288.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 179*99*30mm (L*W*H)
PACKING 0.52Kg; 24pcs/14.5Kg/0.81CUFT

Meanwell RSP-100-48 Features

l  3 years warranty

l  Universal AC input/ Full range

l  Built-in active PFC function

l  High efficiency up to 88%

l  Cooling by free air convection

l  Built-in remote ON-OFF control

l  LED indicator for power on

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell RSP-100-48 Features

Meanwell RSP-100-48 Applications

l  Burn-in facility

l  RF application

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

Meanwell RSP-100-48 Applications

Meanwell RSP-100-48 Mechanical Diagram

Meanwell RSP-100-48 Mechanical Diagram
