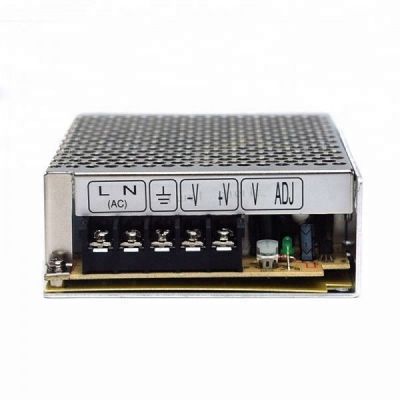

Meanwell RS-35 Series is 35W Single Miniature size, non-PFC Output Switching Power Supply. The entire series could withstand 5G vibration and work at 70°C high ambient temperature. With adopting 105 ℃ long life electrolytic capacitors and passing through 100% full load burn-in test, RS-35 Series is able to withstand 300 VAC surge input for 5 seconds. At the same time, 2 outputs are isolated for RID series. What’s more , Meanwell RS-35 Series provides the full protection modes such as Short circuit, Over load and Over voltage. Considering its high efficiency, long life, high reliability and No load power consumption. Meanwell RS-35 Series is ideal for use in harsh working environments.
Meanwell RS-35 Series Model Specifications
| Model | RS-35-3.3 | RS-35-5 | RS-35-12 | RS-35-15 | RS-35-24 | RS-35-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 7A | 7A | 3A | 2.4A | 1.5A | 0.8A | |
| CURRENT RANGE | 0-7A | 0-7A | 0-3A | 0-2.4A | 0-1.5A | 0-0.8A | |
| RATED POWER | 23.1W | 35W | 36W | 36W | 36W | 38.4W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 2.9-3.6V | 4.5-5.5V | 10.8-13.2V | 13.5-16.5V | 22-27.6V | 42-54V | |
| VOLTAGE TOLERANCE | ±3.0% | ±2% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL ATION | ±2% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 80ms/230VAC 15ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 76.50% | 80.50% | 84.50% | 86.00% | 88.00% | 88.50% | |
| AC CURRENT (Typ.) | 0.8A/115VAC 0.55A/230VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 36A/230VAC | ||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.8-4.45V | 5.75-6.75V | 13.8-16.2 | 17.25-20.25V | 27.6-32.4V | 55.2-64.8V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | ||||||
| OTHERS | MTBF | 249Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 99*82*36mm (L*W*H) | ||||||
| PACKING | 0.3Kg; 45pcs/14Kg/0.76CUFT | ||||||
Meanwell RS-35 Series Features
l 3-year warranty
l International universal full range AC input
l Protection type: short circuit/overload/overvoltage
l Natural air cooling
l LED power indicator
l 100% full load aging
l No-load consumption<0.5W
l All use 105C long-life electrolytic capacitors
l Can withstand 300VAC surge input for 5 seconds
l Working temperature up to 70°C
l Withstand 5G vibration test
l High efficiency, long life and high reliability

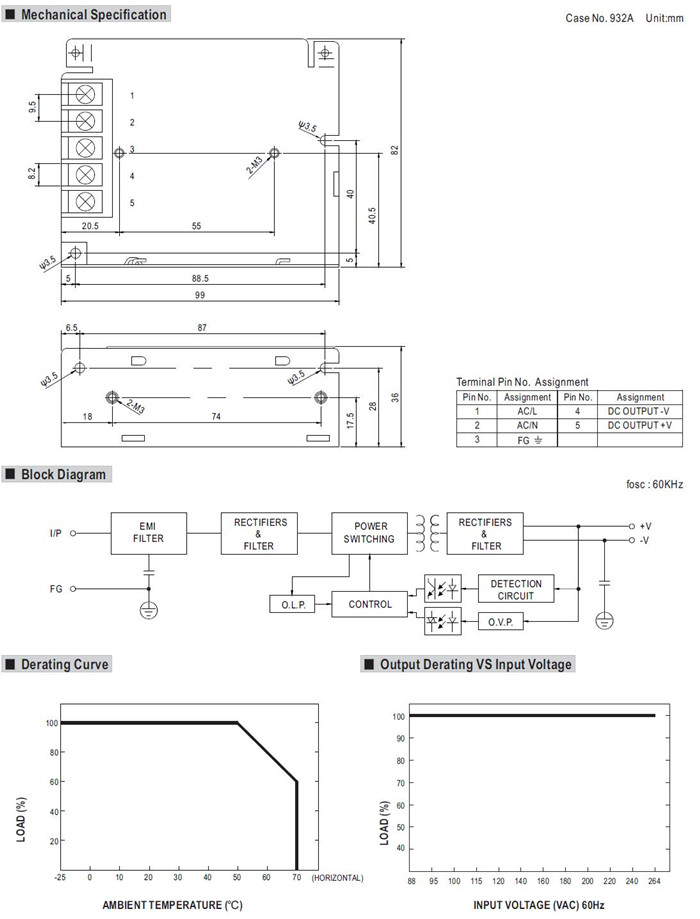

Meanwell RS-35 Series Mechanical Diagram
