Meanwell 3200W single output enclosed type AC/DC power supply

- +
Availability:In stock
SKU Meanwell DPU-3200
Brand Meanwell
Details

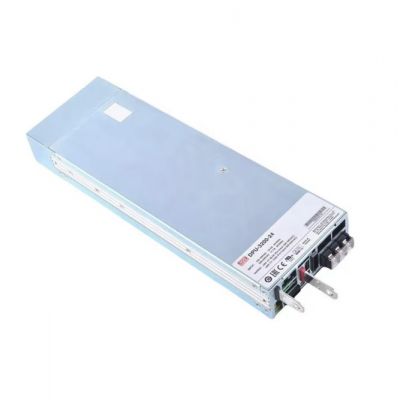

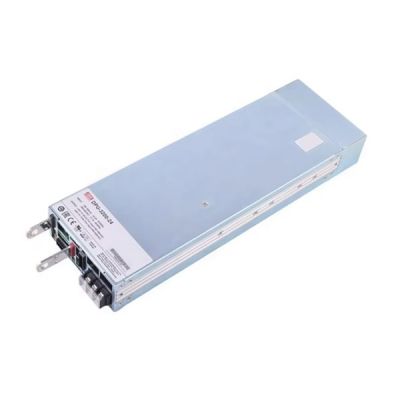

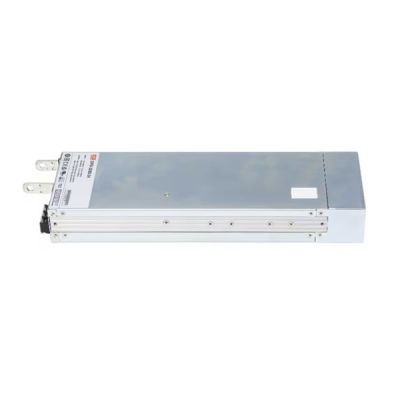

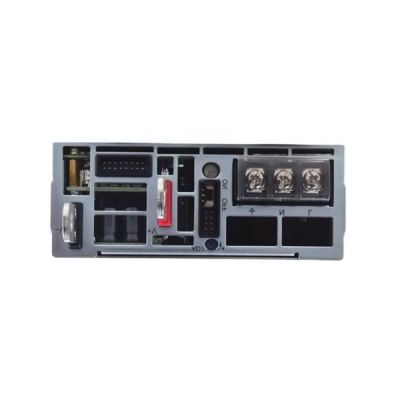

Meanwell DPU-3200 Series is a 3200W single output enclosed type AC/DC power supply with Built-in active PFC function. The entire series is designed with 1U low profile and high power density up to 37W/inch³ and also High efficiency up to 94.5%. Moreover, DPU-3200 Series can operate for 90~264V AC input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the thermostatically controlled fan. Apart from them, Meanwell DPU-3200 provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and etc. In addition,  DPU-3200 is equipped with the complete protection functions such as Short circuit, Overload, Over voltage  and Over temperature. At the same time, it complies with UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved. Considering its powerful performance, high reliability, and long lifespan, Meanwell DPU-3200 Series serves as a high performance power supply solution for various industrial applications.

Meanwell DPU-3200 Series Encoding

Meanwell DPU-3200 Series Encoding

DPU Series Name
3200 Output Wattage
24 Output Voltage ( 24V/48V)
**** Communications Protocol Option
Blank None
PM PMBus Protocol
CAN CANBus  Protocol

Meanwell DPU-3200 Series Model Specifications

Model DPU-3200-24 DPU-3200-48
Output DC VOLTAGE 24V 48V
RATED CURRENT 133A 67A
CURRENT RANGE 0-133A 0-67A
RATED POWER 3182W 3216W
RIPPLE & NOISE (max.)  300 mVp-p 480 mVp-p
VOLTAGE ADJ. RANGE 23.5-30V 47.5-58.8V
VOLTAGE TOLERANCE ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5%
LOAD REGULATION ±0.5% ±0.5%
SETUP, RISE TIME 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.) 16ms / 230VAC at 75% load 9ms / 230VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.97/230VAC at full load
EFFICIENCY (Typ.)  93.50% 94.50%
AC CURRENT (Typ.) 17A/230VAC
INRUSH CURRENT (Typ. ) COLD START 55A/230VAC
LEAKAGE CURR ENT <2mA / 230VAC
PROTECTION OVERLOAD 105 ~ 115% rated current
Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
OVER VOLTAGE 31.5 ~ 37.5V 63 ~ 75V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down

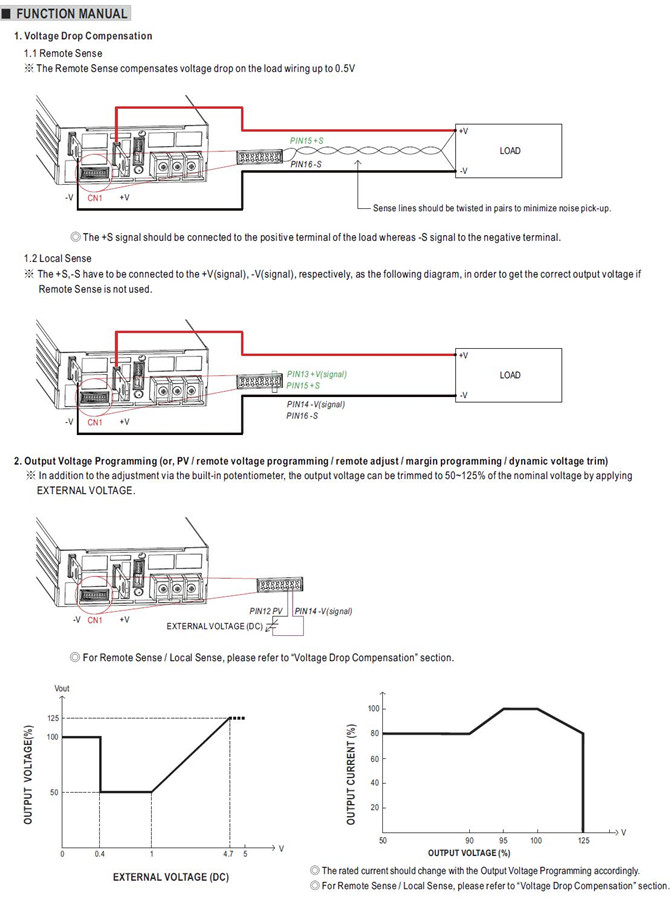

FUNCTION OUTPUT VOLTAGE PROGRAMMABLE(PV) Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage
CONSTANT CURRENT LEVEL PROGRAMMABLE(PC Adjustment of constant current level is allowable to 20 ~ 100% of rated current.

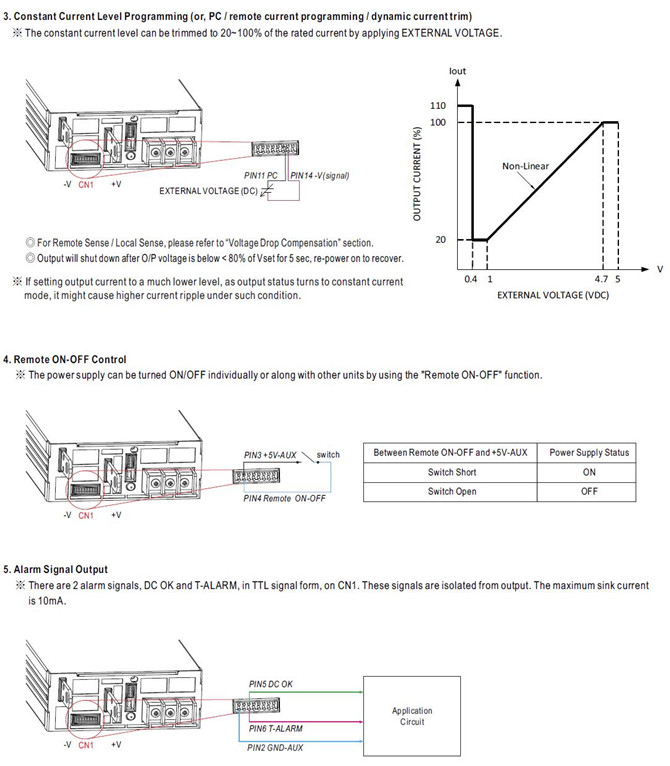

REMOTE ON-OFF CONTROL By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
REMOTE SENSE Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages
AUXILIARY POWER 5V @ 0.3A, tolerance±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance±10%, ripple 450mVp-p
ALARM SIGNAL Isolated TTL signal output for T-Alarm and DC-OK. Please refer to the Function Manual in following pages
ENVIRONMENT WORKING TEMP -30 ~ +70Baseplate temperature (Refer to “Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 -----
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
Others MTBF 502.9K hrs min. Telcordia SR-332 (Bellcore) ; 44.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 325.8*107*41mm (L*W*H)
PACKING 2.76Kg;4pcs/12Kg/0.81CUFT

Meanwell DPU-3200 Series Features

l  Universal AC input/ Full range

l  Built-in active PFC function

l  High efficiency up to 94.5%

l  Forced air cooling by built-in DC fan

l  Output voltage and constant current level programmable

l  Active current sharing up to 16000W (4+1)

l  Protections: Short circuit/Overload/Over voltage /Over temperature

l  Optional conformal coating

l  Optional PMBus or CANBus protocol

l  5 years warranty

Meanwell DPU-3200 Series Features

Meanwell DPU-3200 Series Applications

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

l  Aging facility

l  Digital broadcasting

l  Constant current source

l  Redundant system

Meanwell DPU-3200 Series Applications

Meanwell DPU-3200 Series Mechanical Diagram

Meanwell DPU-3200 Series Mechanical Diagram

Meanwell DPU-3200 Series Mechanical Diagram
