RS-35-48
11.63
Details

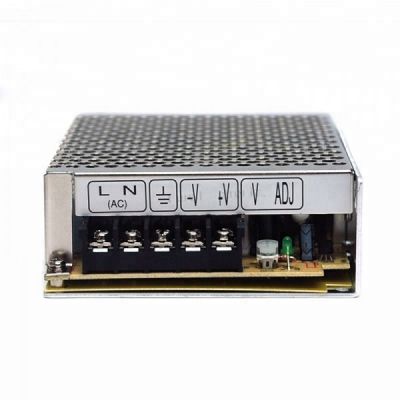

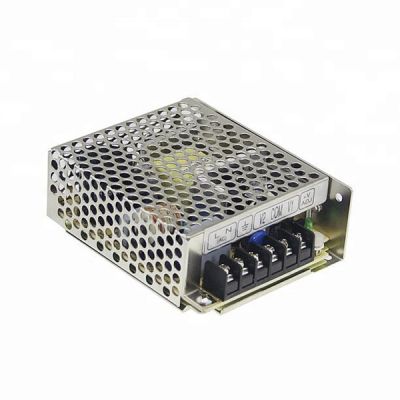

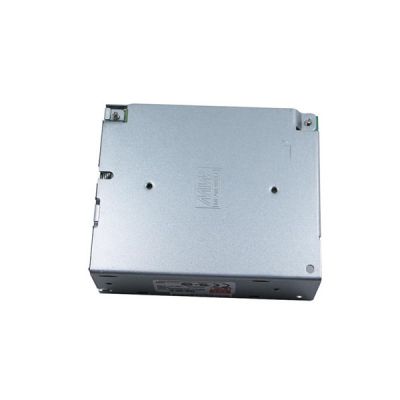

Meanwell RS-35-48 is 35W non-PFC Output Switching Power Supply with 48V0.8A0-0.8A38.4W200mVp-p42-54V. At the same time, the unit features Single Output and Miniature Size. It could withstand 5G vibration and work at 70°C high ambient temperature. RS-35-48 adopts 105℃ long life electrolytic capacitors and passes through 100% full load burn-in test, Apart from them, it is able to withstand 300 VAC surge input for 5 seconds. 2 outputs are isolated for RID series as well. The item offers the full protection modes such as Short circuit, Over load and Over voltage. As a result of its high efficiency, long life, high reliability and No load power consumption. Meanwell RS-35-48 is ideal for use in harsh working environments.
Meanwell RS-35-48 Specifications
| Model | RS-35-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 0.8A | |
| CURRENT RANGE | 0-0.8A | |
| RATED POWER | 38.4W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 42-54V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGUL ATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 80ms/230VAC 15ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.50% | |
| AC CURRENT (Typ.) | 0.8A/115VAC 0.55A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 36A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 55.2-64.8V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 249Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 99*82*36mm (L*W*H) | |
| PACKING | 0.3Kg; 45pcs/14Kg/0.76CUFT | |
Meanwell RS-35-48 Features
l 3 years warranty
l LED indicator for power on
l 100% full load burn-in test
l Withstand 5G vibration test
l Universal AC input/Full range
l Cooling by free air convection
l No load power consumption<0.5W
l High operating temperature up to 70 ℃
l High efficiency, long life and high reliability
l Withstand 300 VAC surge input for 5 second
l All using 105 ℃ long life electrolytic capacitors
l Protections: Short circuit/Over load/Over voltage
Meanwell RS-35-48 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
