RPS-500-12
95.14
Details

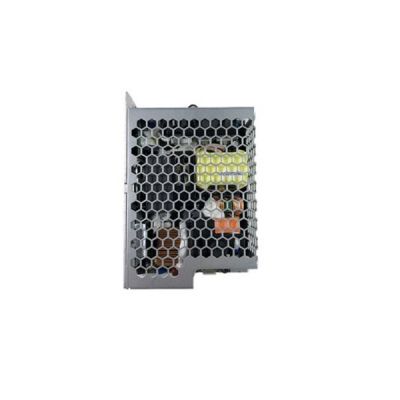

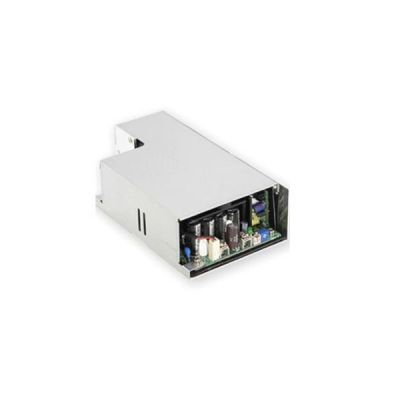

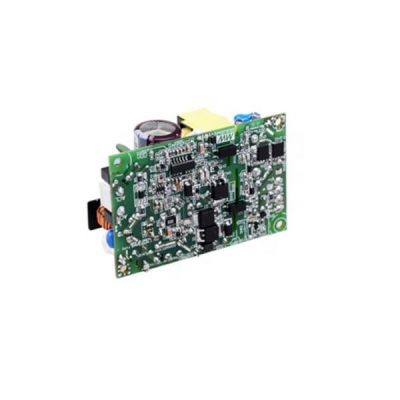

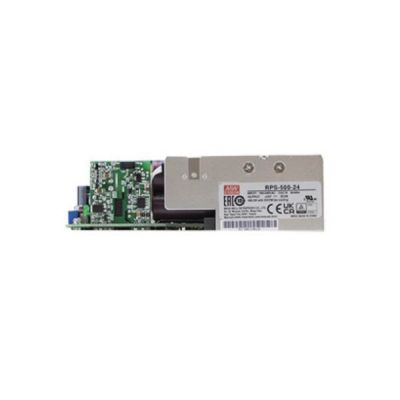

Meanwell RPS-500-12 is a 500W highly reliable green PCB type medical power supply with 12V41.6A26.7A41.6A25.8A 41.6A499.2W320.4W499.2W309.6W499.2W550W 200mVp-p11.4-12.6V. The product is designed with high power density on 5" by 3" footprint., and accepts 80~264VAC input. At the same time, it outstands the high working efficiency up to 94%, extremely low no load power consumption and operating altitude up to 4000 meters. So that, RPS-500-12 (blank type only) is able to be applied for both ClassⅠ(with FG) or Class Ⅱ (no FG) system design. As per extremely low leakage current less than 320uA and 320W convection, 500W force air. The item complies with the international medical regulations(2*MOPP) and EMC BS EN/EN55011. Moreover, RPS-500-12 offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Additionally, RP S-500-12 has the enclosed style models (-C/TF /SF). Due to its long lifespan, high reliability, excellent quality, Meanwell RPS-500-12 is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPS-500-12 Encoding
| RPS | Series Name |
| 500 | Rated Wattage |
| 12 | Output Voltage |
| C | Type |
| Blank | PCB Type |
| -C | Enclosed Casing Type |
| -TF | Enclosed Type with fan on the top |
| -SF | Enclosed Type with fan on the side |
Meanwell RPS-500-12 Specifications
| Model | RPS-500-12 | |||
| OUTPUT | DC VOLTAGE | 12V | ||
| RATED CURRENT | Blank | 25CFM | 41.6A | |
| Convection | 26.7A | |||
| -C | 25CFM | 41.6A | ||
| Convection | 25.8A | |||
| -TF/SF | Built-in fan | 41.6A | ||
| RATED POWER | Blank | 25CFM | 499.2W | |
| Convection | 320.4W | |||
| -C | 25CFM | 499.2W | ||
| Convection | 309.6W | |||
| -TF/SF | Built-in fan | 499.2W | ||
| PEAK POWER(3sec.) | 550W | |||
| RIPPLE & NOISE (max.) | 200mVp-p | |||
| VOLTAGE ADJ. RANGE (main output) | 11.4-12.6V | |||
| VOLTAGE TOL ERANCE | ±3.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGUL .ATION | ±1.0% | |||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 10ms/230VAC 10ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | |||
| EFFICIENCY (Typ.) | 91.00% | |||
| AC CURRENT (Typ.) | 5.8A/115VAC 2.9A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 40A/115VAC 80A/230VAC | |||
| LEAKAGE CURRENT | Earth leakage current <220 A/264VAC 50Hz , Touch current < 100 A/264VAC | |||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.2-15.6V | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | 5V STANDBY | 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM Tolerance ±2%, ripple : 120mVp-p(max.) | ||
| 12V FAN SUPPLY | 12V@0.5A for driving a fan; Tolerance -15%~+10% at main output 20% rated current (20.5CFM) | |||
| FAN CONTROL | Fan on by 20% load min. (For RPS-400-xxTF/SF) | |||
| PS-ON INPUT SIGNAL | Power on: PS-ON="Hi"or">2~5V";Power off: PS-ON="Low"or"<0~0.5V" | |||
| POWER GOOD/POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;The TTL signal goes low at least 1ms before Vo below 90% of rated value | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP. | -40 ~ +85℃ | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 4000 meters | |||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) |
||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | |||
| OTHERS | MTBF | 1132.3K hrs min. Telcordia SR-332 (Bellcore) ; 144.2K hrs min. MIL-HDBK-217F (25℃) | ||
Meanwell RPS-500-12 Features
l 5"x3" compact size
l 3 years warranty
l 320W convection, 500W force air
l 550W peak power (3sec.)
l Operating altitude up to 4000 meters
l LED indicator for power on
l EMI for both ClassⅠ& ClassⅡconfiguration
l -30~+70℃ wide range operating temperature
l No load power consumption<O .5W by PS_ON control
l High efficiency up to 94%
l Protections: Short circuit/Overload/Over voltage/Over temperature
l 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-500-12 Applications
l Oral irrigator
l Pump machine
l Electric bed
l Hemodialysis machine
l Medical computer monitors
l Sleep apnea devices
Meanwell RPS-500-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
