PSP-600-12
122.35

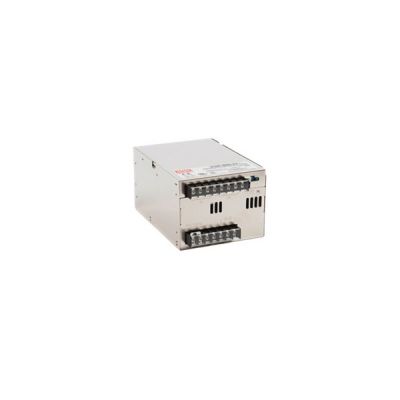

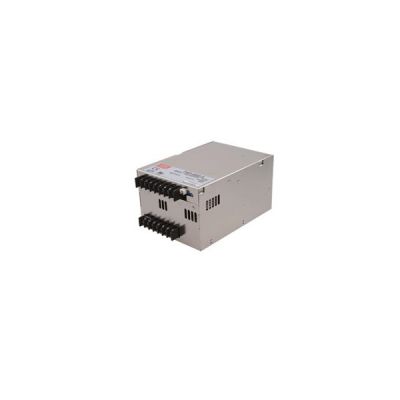

PSP-600-12

$122.35

Meanwell 600W with PFC and Parallel Function 12V50A0-50A600W24010-13.2V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell PSP-600-12
Brand Meanwell
Details

Meanwell PSP-600-12 is 600W switching power supply with PFC and parallel function. By adopting lead-free manufacturing process, it complies with environmental protection RoHS requirements. Built-in active power factor correction circuit (PFC) benefits to improve energy efficiency and reduce harmonic interference. With global full range voltage input, and PSP model has parallel output function reaching up to 2400W (3+1), PSP-600 has complete function like short-circuit protection/overload protection/overvoltage protection/overheat protection. It is additionally certified: UL/TUV/CB/CE and 100% full load aging test. Moreover, PSP-600-12 has built-in remote detection function (with line loss compensation function) and remote switch control, and Switching frequency: PFC: 88KHz, PWM: 100KHz and DC OK signal output. Because of its High efficiency, long life, and high reliability, Meanwell PSP-600-12 serves as a high-performance power supply solution for various industrial applications.

Meanwell PSP-600-12 Specifications

Meanwell PSP-600-12 Specifications

Model PSP-600-12
Output DC VOLTAGE 12V
RATED CURRENT 50A
CURRENT RANGE 0-50A
RATED POWER 600W
RIPPLE & NOISE (max.) mVp-p 240
VOLTAGE ADJ. RANGE 10-13.2V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1500ms, 50ms at full load
HOLD UP TIME  20ms at full load
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.95/230VAC 0.99/115VAC at full load
EFFICIENCY (Typ.)  84.00%
AC CURRENT (Typ.) 6.8A/115VAC 3.4A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <1.3mA/240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
FUNCTION REMOTE CONTROL RC+/RC-: Short = power on ; Open = power off
POK SIGNAL PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V
ENVIRONMENT WORKING TEMP -20 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020
Others MTBF 116.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 170*120*93mm (L*W*H)
PACKING 1.9Kg; 8pcs/15.5Kg/1.00CUFT

Meanwell PSP-600-12 Features

l  3-year warranty

l  With DC OK Signal output

l  Built-in remote sense function

l  Universal AC input/ Full range

l  Built-in remote ON-OFF control

l  Built-in active PFC function

l  Current sharing up to 2400W (3+1)

l  Forced air cooling by built-in DC fan

l  Operating altitude up to 3000 meters

l  Fixed switching frequency at PFC:88KHz PWM:100KHz

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell PSP-600-12 Features

Meanwell PSP-600-12 Mechanical Diagram

Meanwell PSP-600-12 Mechanical DiagramMeanwell PSP-600-12 Mechanical Diagram
