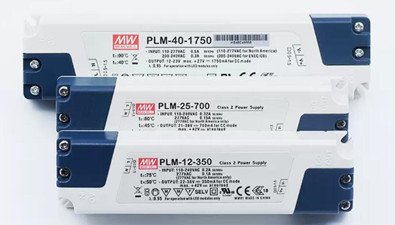

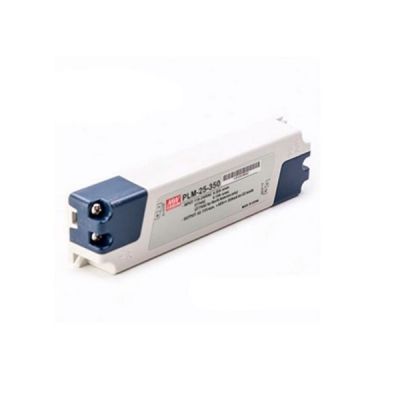

Meanwell PLM-25 Series is 25W economical AC/DC LED power supply. Under built-in active PFC design, the entire series provides high Power Factor value greater than 0.9. With low no load power consumption below 0.5W, and setup time less than 500ms, PLM-25 complies with the ErP regulation required by European Union for lighting fixtures. Meanwhile, PLM-25 is class Ⅱ (without FG pin) power unit housed with UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types with different input voltage range are available: PLM-25 series, which operates from 110~295VAC, and PLM-25E series, which operates from 180~295VAC. These two series are both constant current output design, supplying models with the current of 350mA, 500mA, 700mA and 1050mA, respectively. Considering its long lifetime, high reliability and low price, Meanwell PLM-25 Series is ideally suitable for LED indoor lighting or decorative light source related applications.
Meanwell PLM-25 Series Encoding
| PLM | Series Name |
| 25 | Output Wattage |
| E | Blank: AC input range 110-295VAC |
| E: AC input range 180-295VAC | |
| 350 | Output current |
Meanwell PLM-25 Series Model Specifications

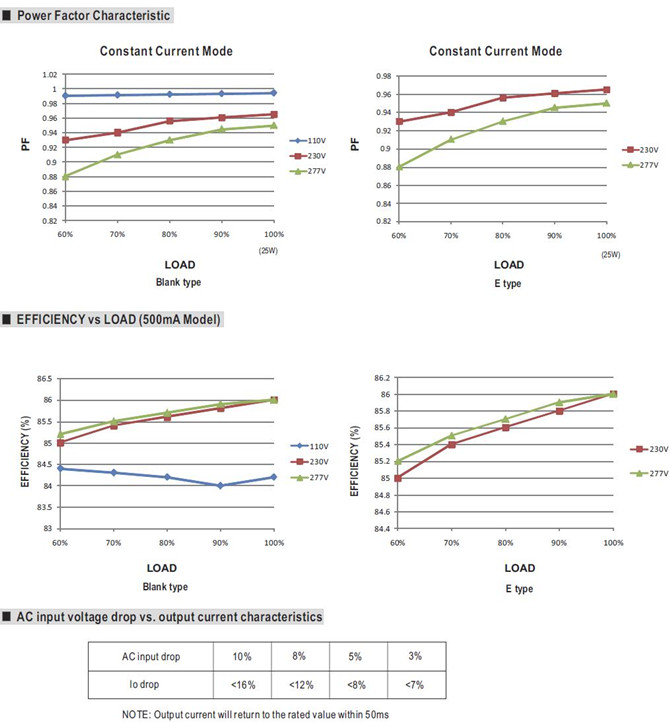

| Model | PLM-25□-350 | PLM-25□-500 | PLM-25□-700 | PLM-25□-1050 | |
| OUTPUT | CONSTANT CURRENT REGION | 42-72V | 30-50V | 21-36V | 14-24V |
| RATED CURRENT | 0.35A | 0.5A | 0.7A | 1.05A | |
| NO LOAD OUTPUT VOLTAGE (max.) | 80V | 56V | 42V | 28V | |
| RATED POWER | 25.2W | 25W | 25.2W | 25.2W | |
| RIPPLE & NOISE (max.) Blank type | 7.2Vp-p | 5.0Vp-p | 3.6Vp-p | 2.4Vp-p | |
| RIPPLE & NOISE (max.) E type | 9Vp-p | 7.5Vp-p | 5.4Vp-p | 3.6Vp-p | |
| CURRENT ACCURACY | ±5.0% | ||||
| SETUP TIME | Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load | ||||
| INPUT | VOLTAGE RANGE | Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR Blank type | PF>=0.97/115VAC,PF>=0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve | ||||
| POWER FACTOR E type | PF>=0.95/230VAC,PF>=0.9/277VAC (at full load)(Please refer to "Power Factor Characteristic" curve) | ||||
| TOTAL HARMONIC DISTORTION Blank type | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input | ||||
| TOTAL HARMONIC DISTORTION E type | THD< 20% when output loading>=60% at 230VAC input and output loading>=75% at 277VAC input | ||||
| EFFICIENCY (Typ.) Blank type | 87.00% | 86.00% | 86.00% | 85.00% | |
| EFFICIENCY (Typ.) E type | 86.00% | 85.00% | 85.00% | 82.00% | |
| AC CURRENT | Blank type: 0.3A/115VAC 0.15A/230VAC 0.12A/277VAC; E type: 0.15A/230VAC 0.12A/277VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +45℃ | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.06%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384,GB19510.14,GB19510.1(for E type only),EAC TP TC 004, IP30 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1(for E type only),BS EN/EN61000-3-2 Class C(>=60% load); BS EN/EN61000-3-3,EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level, criteria B(surge 2KV),EAC TP TC 020 |
||||
| Others | MTBF | 7905.4K hrs min. Telcordia SR-332 (Bellcore) ; 608.9Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 145*38*22mm (L*W*H) | ||||
| PACKING | 0.126Kg;60pcs/8.6 Kg/0.48CUFT | ||||
Meanwell PLM-25 Series Features
l 230VAC only or Full range (up to 295VAC) models available
l Built-in active PFC function
l Constant current design
l Protections: Short circuit
l Cooling by free air convection
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l Class 2 power unit (for PLM-25-500/700/1 050)
l No load power consumption <0. 5W
l High reliability, low cost
l 2 years warranty
Meanwell PLM-25 Series Applications
l Indoor LED lighting
l LED office lighting
l LED commercial lighting
l LED decorative lighting

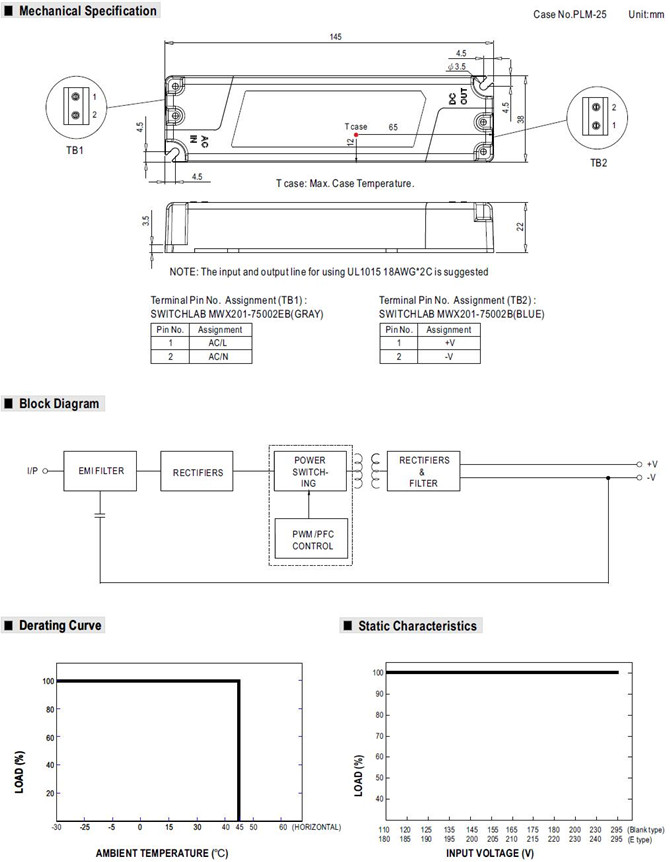

Meanwell PLM-25 Series Mechanical Diagram
