PLM-25□-1050
14.96

PLM-25□-1050

$14.96

Meanwell 25W Single Output LED Power Supply with 14-24V1.05A28V25.2W2.4Vp-p3.6Vp-p±5.0%

- +
Availability:In stock
SKU Meanwell PLM-25□-1050
Brand Meanwell
Details

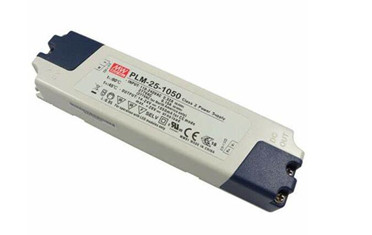

Meanwell PLM-25-1050 is 25W economical AC/DC LED power supply with 14-24V1.05A28V25.2W2.4Vp-p3.6Vp-p±5.0%. It stands out with high Power Factor value greater than 0.9 under built-in active PFC design. With low no load power consumption below 0.5W, and setup time less than 500ms, PLM-25-1050 complies with the ErP regulation required by European Union for lighting fixtures. What’s more, PLM-25-1050 is class Ⅱ (without FG pin) power unit housed with UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types with different input voltage range are available: PLM-25-1050, which operates from 110~295VAC, and PLM-25E-1050, which operates from 180~295VAC. These two are both constant current output design, offering the model with the current of 1050mA, respectively. In view of its long lifetime, high reliability and low price, Meanwell PLM-25-1050 is ideally suitable for LED indoor lighting or decorative light source related applications.

Meanwell PLM-25-1050 price and specs 25W AC/DC power supply PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 with PFC YCICT

Meanwell PLM-25-1050 Encoding

PLM Series Name
25 Output Wattage
E Blank: AC input range 110-295VAC
E: AC input range 180-295VAC
1050 Output current

Meanwell PLM-25-1050 Specifications

Model PLM-25-1050
OUTPUT CONSTANT CURRENT REGION 14-24V
RATED CURRENT 1.05A
NO LOAD OUTPUT VOLTAGE (max.) 28V
RATED POWER 25.2W
RIPPLE & NOISE (max.) Blank type 2.4Vp-p
RIPPLE & NOISE (max.) E type 3.6Vp-p
CURRENT ACCURACY ±5.0%
SETUP TIME Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load
INPUT VOLTAGE RANGE Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR Blank type PF>=0.97/115VAC,PF>=0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve
POWER FACTOR E type PF>=0.95/230VAC,PF>=0.9/277VAC (at full load)(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  Blank type THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input
TOTAL HARMONIC DISTORTION  E type THD< 20% when output loading>=60% at 230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) Blank type 85.00%
EFFICIENCY (Typ.) E type 82.00%
AC CURRENT Blank type: 0.3A/115VAC 0.15A/230VAC 0.12A/277VAC; E type: 0.15A/230VAC 0.12A/277VAC
INRUSH CURRENT(Typ.) COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ +45
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.06%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384,GB19510.14,GB19510.1(for E type only),EAC TP TC 004, IP30 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC / 25/ 70%RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1(for E type only),BS EN/EN61000-3-2 Class C(>=60% load); BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level,
criteria B(surge 2KV),EAC TP TC 020
Others MTBF 7905.4K hrs min. Telcordia SR-332 (Bellcore) ; 608.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 145*38*22mm (L*W*H)
PACKING 0.126Kg;60pcs/8.6 Kg/0.48CUFT

Meanwell PLM-25-1050 Features

l  2 years warranty

l  High reliability, low cost

l  Built-in active PFC function

l  Constant current design

l  Protections: Short circuit

l  Cooling by free air convection

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  No load power consumption <0. 5W

l  Class 2 power unit (for PLM-25-500/700/1 050)

l  230VAC only or Full range (up to 295VAC) models available

Meanwell PLM-25-1050 price and specs AC/DC power supply PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 with PFC 25W YCICT

Meanwell PLM-25-1050 Applications

l  Indoor LED lighting

l  LED office lighting

l  LED commercial lighting

l  LED decorative lighting

Meanwell PLM-25-1050 Mechanical Diagram

Meanwell PLM-25-1050 price and specs AC/DC power supply PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 PFC 25W YCICT

Meanwell PLM-25-1050 price and datasheet AC/DC power supply PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 PFC 25W YCICT
