PLM-25□-500
14.59

PLM-25□-500

$14.59

Meanwell 25W Single Output LED Power Supply with 30-50V0.5A56V25W5.0Vp-p7.5Vp-p±5.0%

- +
Availability:In stock
SKU Meanwell PLM-25□-500
Brand Meanwell
Details

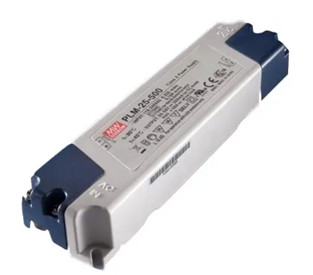

Meanwell PLM-25-500 is 25W economical AC/DC LED power supply with 30-50V0.5A56V25W5.0Vp-p7.5Vp-p±5.0%. The item features high Power Factor value greater than 0.9 under built-in active PFC design. With low no load power consumption below 0.5W, and setup time less than 500ms, PLM-25-500 complies with the ErP regulation required by European Union for lighting fixtures. Additionally, PLM-25-500 is class Ⅱ (without FG pin) power unit housed with UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types with different input voltage range are available: PLM-25-500, which operates from 110~295VAC, and PLM-25E-500, which operates from 180~295V AC. These two are both constant current output design, supplying the model with the current of 500mA, respectively. Thanks to its long lifetime, high reliability and low price, Meanwell PLM-25-500 is ideally suitable for LED indoor lighting or decorative light source related applications.

Meanwell PLM-25-500 price and specs 25W AC/DC LED Driver PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 PFC YCICT

Meanwell PLM-25-500 Encoding

PLM Series Name
25 Output Wattage
E Blank: AC input range 110-295VAC
E: AC input range 180-295VAC
500 Output current

Meanwell PLM-25-500 Specifications

Model PLM-25-500
OUTPUT CONSTANT CURRENT REGION 30-50V
RATED CURRENT 0.5A
NO LOAD OUTPUT VOLTAGE (max.) 56V
RATED POWER 25W
RIPPLE & NOISE (max.) Blank type 5.0Vp-p
RIPPLE & NOISE (max.) E type 7.5Vp-p
CURRENT ACCURACY ±5.0%
SETUP TIME Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load
INPUT VOLTAGE RANGE Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR Blank type PF>=0.97/115VAC,PF>=0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve
POWER FACTOR E type PF>=0.95/230VAC,PF>=0.9/277VAC (at full load)(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  Blank type THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input
TOTAL HARMONIC DISTORTION  E type THD< 20% when output loading>=60% at 230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) Blank type 86.00%
EFFICIENCY (Typ.) E type 85.00%
AC CURRENT Blank type: 0.3A/115VAC 0.15A/230VAC 0.12A/277VAC; E type: 0.15A/230VAC 0.12A/277VAC
INRUSH CURRENT(Typ.) COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ +45
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.06%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384,GB19510.14,GB19510.1(for E type only),EAC TP TC 004, IP30 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC / 25/ 70%RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1(for E type only),BS EN/EN61000-3-2 Class C(>=60% load); BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level,
criteria B(surge 2KV),EAC TP TC 020
Others MTBF 7905.4K hrs min. Telcordia SR-332 (Bellcore) ; 608.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 145*38*22mm (L*W*H)
PACKING 0.126Kg;60pcs/8.6 Kg/0.48CUFT

Meanwell PLM-25-500 Features

l  2 years warranty

l  Built-in active PFC function

l  Constant current design

l  Protections: Short circuit

l  Cooling by free air convection

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  Class 2 power unit (for PLM-25-500/700/1 050)

l  No load power consumption <0. 5W

l  High reliability, low cost

l  230VAC only or Full range (up to 295VAC) models available

Meanwell PLM-25-350 price and datasheet 25W AC/DC LED Driver PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 low cost YCICT

Meanwell PLM-25-500 Applications

l  Indoor LED lighting

l  LED office lighting

l  LED commercial lighting

l  LED decorative lighting

Meanwell PLM-25-500 Mechanical Diagram

Meanwell PLM-25-500 price and datasheet 25W AC/DC LED Driver PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 low cost YCICT

Meanwell PLM-25-500 price and specs 25W AC/DC LED Driver PLM-25-350 PLM-25-500 PLM-25-700 PLM-25-1050 with PFC YCICT
