PLD-60-2000B
23.37

PLD-60-2000B

$23.37

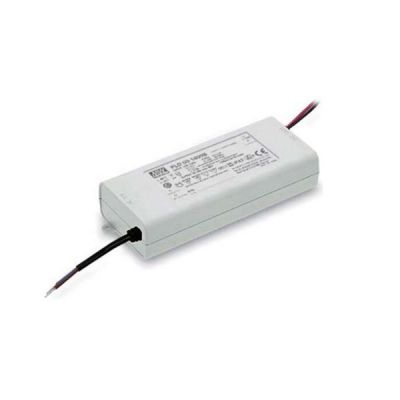

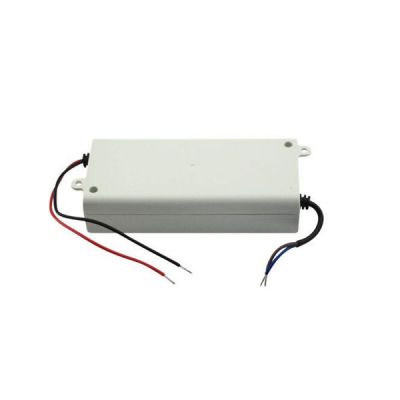

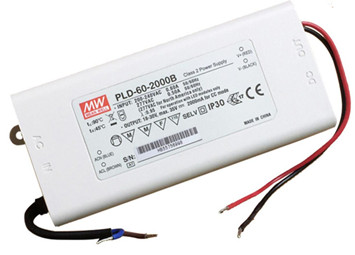

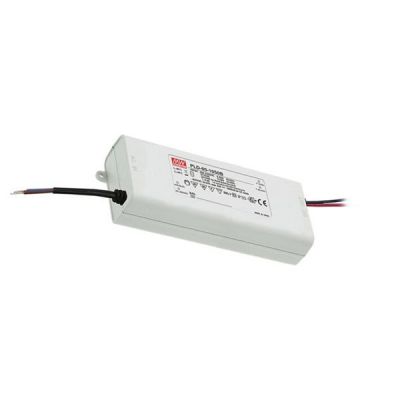

Meanwell 60W Single Output LED Power Supply with 2000mA18-30V±5.0%60W2.4Vp-p35V500ms/230VAC at full load

- +
Availability:In stock
SKU Meanwell PLD-60-2000B
Brand Meanwell
Details

Meanwell PLD-60-2000B is 60W Single Output LED Power Supply with 2000mA18-30V±5.0%60W2.4Vp-p35V500ms/230VAC at full load. It stands out with 180~295VAC voltage input with 2000mA single constant current output. With leading edge or trailing edge TRIAC dimmers, the brightness of LED lamps can be adjusted to satisfy the needs of AC dimming applications in LED lighting market. While working at full load, the conversion efficiency reaches high to 88%. PLD-60-2000B is able to operate at -30°C ~50°C under natural air cooling, and it is designed with single-stage PFC line in the most economical way to achieve high PF value (PF> 0.9), and meet the requirements of EU EN61000-3-2 for harmonic current Class C. In addition, the body adopts 94V-0 fireproof grade plastic shell using a two-wire input method (Class II, no FG) with double insulation effect, which effectively avoids the risk of electric shock. Furthermore, PLD-60-2000B has built-in short circuit protection, over temperature protection and other functions, and has also passed ENEC EN61347-2-13, EN62384, CE and other lighting related certifications. Meanwell has tested a number of world-renowned brand TRIAC dimmers, all of which have a good matching effect with PCD-60. In view of its longevity, high efficiency and low price, Meanwell PLD-60-2000B is ideally suitable for LED indoor lighting or decorative light source related applications.

Meanwell PLD-60-2000B price and specs Single Output LED Power PLD-60-500B/700B/1050B/1400B/1750B/2400B with PFC YCICT

Meanwell PLD-60-2000B Specifications

Model PLD-60-2000B
OUTPUT RATED CURRENT 2000mA
OPERATING VOLTAGE RANGE 18-30V
CURRENT ACCURACY ±5.0%
RATED POWER 60W
RIPPLE & NOISE (max.) 2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.) 35V
SETUP TIME 500ms / 230VAC at full load
INPUT VOLTAGE RANGE 180~295VAC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60%(PLD-60-500B loading>=65%)at 230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) 86.00%
AC CURRENT (Typ.) 0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.) COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
PROTECTION OVER TEMPERATURE Shut down o/p voltage, auto-recovery
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ +45 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020
Others MTBF 4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 128*60*31.5mm (L*W*H)
PACKING 0.34Kg;30pcs/11.2Kg/0.58CUFT

Meanwell PLD-60-2000B Features

l  Low cost

l  High reliability

l  IP42 design

l  3 years warranty

l  Constant current design

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  Built-in active PFC function

l  Cooling by free air convection

l  Protections: Short circuit / Over temperature

l  Suitable for LED related fixture or appliance (such as L ED Decoration or Advertisement devices)100% full load burn-in test

Meanwell PLD-60-2000B price and datasheet Single Output LED Power PLD-60-500B/700B/1050B/1400B/1750B/2400B PFC YCICT

Meanwell PLD-60-2000B Mechanical Diagram

Meanwell PLD-60-2000B price and specs Single Output LED Power PLD-60-500B/700B/1050B/1400B/1750B/2400B IP42 YCICT

Meanwell PLD-60 price and datasheet 60W Single Output LED Power Supply PLD-60-500B/700B/1050B/1400B/1750B/2400B YCICT
