Meanwell 84~150W Constant Voltage + Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell ELG-150
Brand Meanwell
Details

Meanwell ELG-150 Series is a 150W AC/DC LED driver. The entire series features the dual mode constant voltage and constant current output. What’s more, ELG-1 50 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency reaching up to 91 % and the fanless design, the series is able to work for -40 ℃~ +90 ℃case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allows to fit both indoor and outdoor applications. The series is equipped with various function options, such as dimming methodologies. Considering its long life, high efficiency and excellent quality, Meanwell ELF-150 Series is an ideally suitable solution for the optimal design flexibility for LED lighting system

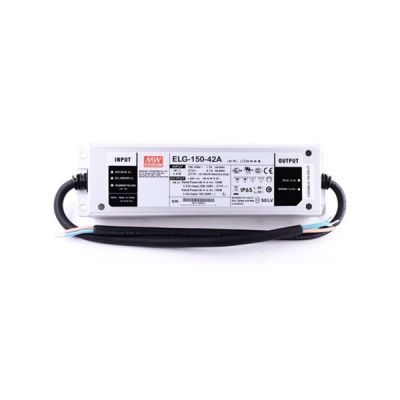

Meanwell ELG-150 Series Meanwell ELG-150 price and specs 150W AC/DC LED driver ycict

Meanwell ELG-150 Series  Encoding

ELG Series Name
150 Rated Wattage
24 Rated Output Voltage (12/24/36/42/48V/54V)
A Function Mode Option
***( Input Wiring Type) Blank: 2-wire input for standard model)
3Y: 3-wire input for standard model)
Type IP Level Function Note
Blank IP67 IO and VO fixed In stock
A IP65 lo and Vo adjustable through built-in potentiometer. In stock
IP67 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance)
In stock
DA IP67 DALI control technology In stock
Dx IP67 Built-in Smart timer dimming function by user request By request
D2 IP67 Built-in Smart timer dimming and programmable function In stock
BE IP67 3 in 1 dimming function and Auxiliary DC output In stock

Meanwell ELG-150 Series Model Specifications

Model ELG-150-12 ELG-150-24 ELG-150-36 ELG-150-42 ELG-150-48 ELG-150-54
Output DC VOLTAGE 12V 24V 36V 42V 48V 54V
CONSTANT CURRENT REGION 6-12V 12-24V 18-36V 21-42V 24-48V 27-54V
RATED CURRENT 10A 6.25A 4.17A 3.57A 3.13A 2.8A
RATED CURRENT(for BE Type only) 8A 5.6A 3.73A 3.2A 2.8A 2.5A
RATED POWER   100VAC ~ 180VAC
For all types 84W 105W 105W 105W 105W 105W
200VAC ~ 305VAC
(Except for BE Type) 120W 150W 150.1W 150W 150.2W 151.2W
(For BE Type only) 96W 134.4W 134.2W 134.4W 134.4W 135W
RIPPLE & NOISE (max.)  150 mVp-p 200 mVp-p 250 mVp-p 250 mVp-p 250 mVp-p 350 mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
10.8-13.2W 21.6-26.4V 32.4-39.6V 37.8-46.2V 43.2-52.8V 48.6-58V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
5-10A 3.2-6.25A 2.1-4.17A 1.8-3.57A 1.56-3.13A 1.4-2.8A
VOLTAGE TOLERANCE ±3.0% ±3.0% ±2.5% ±2.5% ±2.0% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5%
AUXILIARY DC OUTPUT Nominal 15V(deviation 11.5~15.5V)@0.3A for BE-Type only
SETUP, RISE TIME 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.) 10ms/115VAC, 230VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC atfull load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  88.50% 89.00% 90.00% 90.00% 90.00% 91.00%
EFFICIENCY (Typ.)(for BE Type only) 86.00% 89.00% 89.00% 89.00% 89.00% 89.00%
AC CURRENT 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT (Typ. ) COLD START 65A(twidth=550 s measured a μ t 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type
Standby power consumption <0.5W for B / AB / DA-Type
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down output voltage, re-power on to recover
OVER VOLTAGE 14-18V 28-34V 41-48V 47-54V 54-62V 59-68V
Shut down output voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
MAX. CASE TEMP. Tcase=+90
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”)(except for BE-type), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13
independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB19510.1,GB19510.14; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; Gb17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547
Others MTBF 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 219*63*35.5mm (L*W*H)
PACKING 0.95Kg ; 16pcs/16.0kg/0.77CUFT

Meanwell ELG-150 Series Features

l  Constant Voltage + Constant Current mode output

l  Metal housing design with functional Ground

l  Built-in active PFC function

l  No load/Standby power consumption <0. 5W

l  IP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALl; Auxiliary DC output

l  Typical lifetime>50000 hours

l  5 years warranty

Meanwell ELG-150 Series Features Meanwell ELG-150 price and specs ac dc led driver ycict

Meanwell ELG-150 Series Applications

l  LED bay lighting

l  LED floodlighting

l  LED street lighting

l  LED architectural lighting

l  Type HL" for use in Class I, Division 2hazardous (Classified) location

Meanwell ELG-150 Series Mechanical Diagram

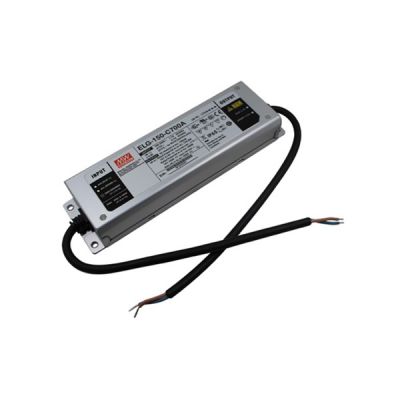

Meanwell ELG-150 Meanwell ELG series price and specs 150W AC/DC LED driver ycict

Meanwell ELG-150 Meanwell ELG-150 series price and specs 150W AC/DC LED driver new ycict
