PLC-100-20
40.48

PLC-100-20

$40.48

Meanwell 100W Single Output Switching Power Supply with 20V15-20V4.8A0-4.8A96W150mVp-p17-20V3.6-4.9A

- +
Availability:In stock
SKU Meanwell PLC-100-20
Brand Meanwell
Details

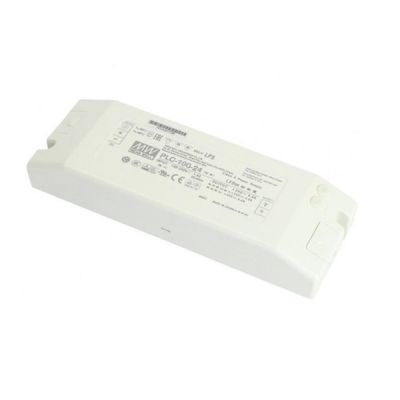

Meanwell PLC-100-20 is 100W Single Output Switching Power Supply with 20V15-20V4.8A0-4.8A96W150mVp-p17-20V3.6-4.9A. The item is an improvement on the existing PLN-100, which uses new plastic housing design to change the I/O terminal block connection with more flexibility to the wiring work. Two small-hole rubber stoppers add to the housing, allowing to adjust the output current or voltage without removing the housing. PLC-100-20 utilizes leading edge zero current switch/zero voltage switch (ZCS/ZVS) technology, so that its efficiency can be as high as 88.5%. the Power Supply only uses natural air cooling heat dissipation, and can operate in -30~+50°C environment. What’s more, the unit adopts built-in active power factor correction (PFC) architecture and meets the EN61000-3-2 harmonic current Class C requirements (output load of 75% or higher), which fits the needs of lighting equipment. The output current can be adjusted between 75%~100% (or 75%~103%) of the rated value, and the output voltage can be adjusted between 85%~100% (or 95%~110%) of the rated value. PLC-100-20 is also UL, CUL, TUV and CE global safety certified, including EN61347-2-13, UL1310 Class 2 and UL879. Typical applications for these new Class 2 power supplies include LED strip displays and backlights, LED decoration/architectural lighting, LED stage lighting and LED electronic displays.

Meanwell PLC-100-20 Price and Specs Single Output Switching Power Supply PLC-100-12/15/20/24/27/36/48 100W LPS YCICT

Meanwell PLC-100-20 Specifications

Model PLC-100-20
OUTPUT DC VOLTAGE 20V
CONSTANT CURRENT REGION 15-20V
RATED CURRENT 4.8A
CURRENT RANGE 0-4.8A
RATED POWER 96W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 17-20V
CURRENT ADJ. RANGE 3.6-4.9A
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP TIME 500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.) 60ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=75% at 115VAC/230VAC input
EFFICIENCY (Typ.) 88.50%
AC CURRENT (Typ.) 12V:0.8A/115VAC 0.4A/230VAC 15V:0.9A/115VAC 0.45A/230VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT(Typ.) COLD START 40A(twidth=950μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 102%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 22-27V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL1310, TUV BS EN/EN60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2,-3, Class C (>=70% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level, (surge 4KV), EAC TP TC 020
Others MTBF 2688.3K hrs min. Telcordia SR-332 (Bellcore) ; 297.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 200.5*69.5*35mm (L*W*H)
PACKING 0.52Kg; 25pcs/14Kg/0.65CUFT

Meanwell PLC-100-20 Features

l  Pass LPS

l  2 years warranty

l  100% full load burn-in test

l  High reliability

l  Cooling by free air convection

l  Built-in active PFC function

l  Class 2 power unit

l  Universal AC input/Full range

l  High efficiency up to 88.5%

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  Protections: Short circuit/Over current/Over voltage/Over temperature

Meanwell PLC-100-20 Price and Specs 100W Single Output Switching Power Supply PLC-100-12/15/20/24/27/36/48 PFC YCICT

Meanwell PLC-100-20 Mechanical Diagram

Meanwell PLC-100-20 Price and Specs 100W Single Output Switching Power Supply PLC-100-12/15/20/24/27/36/48 LPS YCICT

Meanwell PLC-100-20 Price and Datasheet 100W Single Output Switching Power Supply PLC-100-12/15/20/24/27/36/48 LPS YCICT
