APC-8
5.12
Details
Meanwell APC-8 Series is one 8W AC/DC constant current mode single output LED power supply. The entire series accepts the full range input 90~264VAC. And at the same time, it provides four models with different output current, 250mA,350mA, 500mA and 700mA, respectively, which the small wattage LED applications employ the most frequently. Apart from them, the series is designed Class Ⅱ(without FG pin) and adopts the 94V-0 flame retardant plastic enclosure, Considering its high reliability, excellent quality, and competitive price, Meanwell APC-8 Series is ideally suitable for the entry-level LED applications.
Meanwell APC-8 Series Encoding
| APC | Series Name |
| 8 | Output Wattage |
| 350 | Output Current |
Meanwell APC-8 Series Model Specifications
| Model | APC-8-250 | APC-8-350 | APC-8-500 | APC-8-700 | |
| Output | RATED CURRENT | 250mA | 350mA | 500mA | 700mA |
| OPERATING VOLTAGE RANGE | 16-32V | 11-23V | 8-16V | 6-11V | |
| RATED POWER | 8W | 8.05W | 8W | 7.7W | |
| RIPPLE & NOISE (max.) | 350 mVp-p | 300 mVp-p | 300 mVp-p | 250 mVp-p | |
| NO LOAD OUTPUT VOLTAGE | 38V | 29V | 24V | 17V | |
| CURRENT ACCURACY | ±8.0% | ||||
| SETUP, RISE TIME | 500ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load | ||||
| HOLD UP TIME | 20ms/230VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC (Note.5) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 82.50% | 81.50% | 81.00% | 80.00% | |
| AC CURRENT | 0.15A/230VAC;0.3A/115VAC | ||||
| INRUSH CURRENT (Typ. ) | COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC | ||||
| LEAKAGE CURR ENT | 0.25mA / 240VAC | ||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ 70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004; BS EN/EN 62368-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 | ||||
| Others | MTBF | 14511.7K hrs min. Telcordia SR-332 (Bellcore) ; 2275.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 60*30*23.5mm(L*W*H) | ||||
| PACKING | 0.05Kg;144pcs/7.6Kg/0.70CUFT | ||||
Meanwell APC-8 Series Features
l Constant current design
l Universal AC input/Full range
l ClassⅡpower unit, no FG
l Fully isolated plastic case
l IP42 design
l Small and compact size
l Cooling by free air convection
l Protection: Short circuit
l No load power consumption <0.5W
l 100% full load burn-in test
l Low cost/High reliability
l 2 years warranty

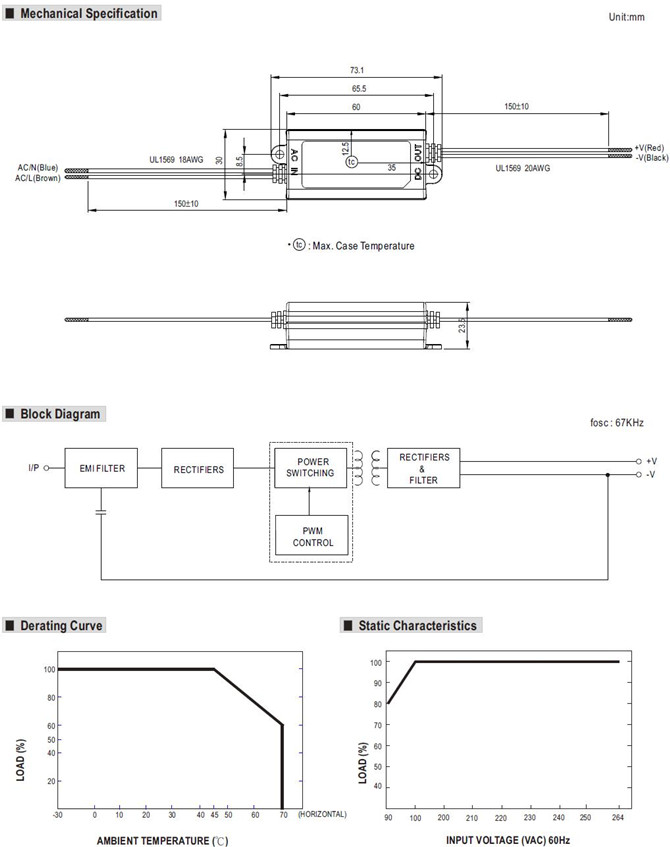

Meanwell APC-8 Series Mechanical Diagram
