SLD-80
23.25
Details

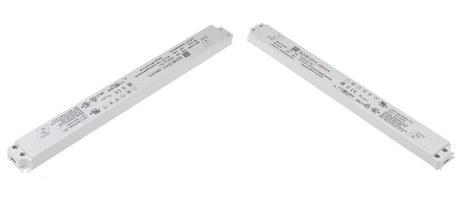

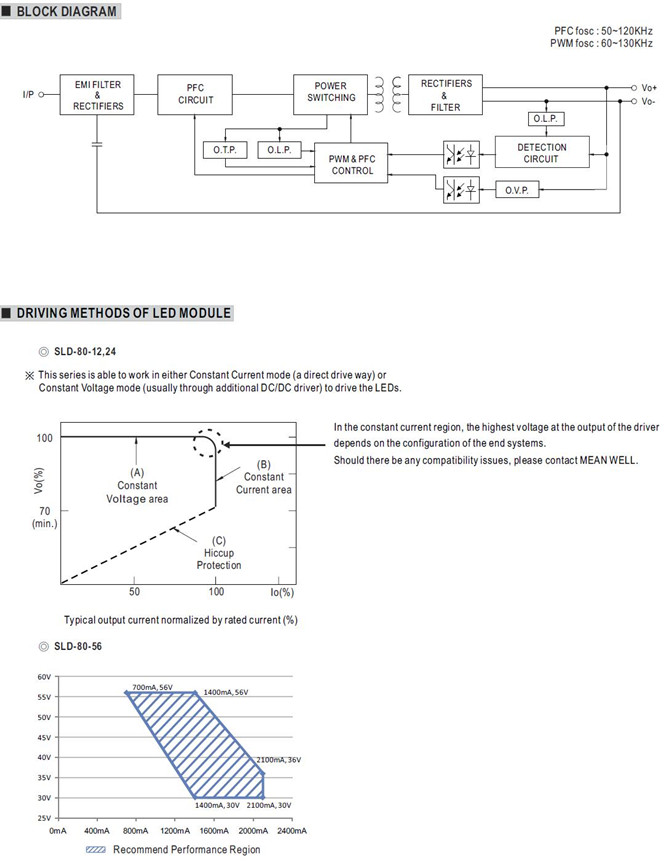

Meanwell SLD-80 Series is 80W AC/DC LED driver highlighting dual modes constant voltage and constant current output. The entire series operates from 110~305VAC with different rated voltage ranging between 12V and 56V. Since the efficiency reaches high up to 92% based on fanless design, SLD-80 is able to work for -20℃ ~ +90'℃ case temperature under free air convection. In addition to ultra-thin and long strip merit, SLD-80 can also be selected according to the diversification of lamps. The 12V/24V output model provides a dual-purpose design of constant voltage and constant current, which can be matched with any constant voltage or constant current LED strip and strip light. The 56V output model adopts constant power design, which is suitable for any LED output driving voltage range between 30~56V, and adjust the output current range by itself through the variable resistor reserved at the output, covering 700mA to 2100 mA (full power use range of 1400~2100 mA). What’s more, the shell adopts fireproof all-plastic insulated shell <60V safety voltage (SELV), which is highly reliable for the design of the lamp and the safety of the user. Considering its longevity, excellent efficiency and high reliability, Meanwell SLD-80 Series is suitable for signage and linear luminaire applications.
Meanwell SLD-80 Series Encoding
| SLD | Series Name |
| 80 | Rated Wattage |
| 24 | Rated output voltage (12/24/56V) |
Meanwell SLD-80 Series Model Specifications
| Model | SLD-80-12 | SLD-80-24 | SLD-80-56 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | |
| CONSTANT CURRENT REGION | 8.4-12V | 16.8-24V | 30-56V | |
| FULL POWER CURRENT RANGE | 1400-2100mA | |||
| RATED CURRENT | 6.6A | 3.3A | 1400mA | |
| RATED POWER | 79.2W | 79.2W | 78.4W | |
| OPEN CIRCUIT VOLTAGE (max.) | 60V | |||
| RIPPLE & NOISE (max.) | 150mVp-p | 240mVp-p | ||
| VOLTAGE TOLERANCE | ±4.0% | ±3.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | 500ms, 80ms 115VAC / 230VAC | |||
| HOLD UP TIME (Typ.) | 10ms/230VAC 10ms/115VAC | |||
| INPUT | VOLTAGE RANGE | 110 ~ 305VAC 155 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
|||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=60%/115VC,230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) | 90.50% | 91.50% | 92.00% | |
| AC CURRENT | 0.9A / 115VAC 0.45A / 230VAC 0.38A/277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.25mA / 277VAC | |||
| NO LOAD POWER CONSUMPTION | <0.5W | |||
| PROTECTION | OVER CURRENT | 95 - 108% | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 14 - 17V | 28 ~ 34V | 60-70V | |
| Shut down output voltage, re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |||

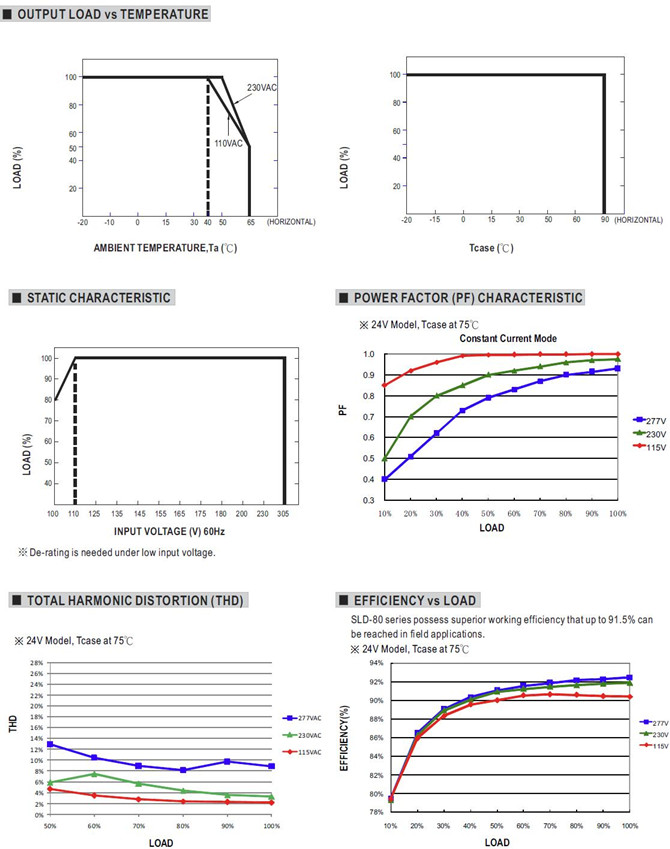

| ENVIRONMENT | WORKING TEMP | Tcase=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP | Tcase=+90℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, GB19510.1,GB19510.14, IS15885(Part2/Sec13) approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55015(CISPR15) ,GB/T17743 | ----- | ||
| Radiated | BS EN/EN55015(CISPR15) ,GB/T17743 | ----- | ||
| Harmonic Current | BS EN/EN61000-3-2,GB/T17625.1 | Class C @load>=60% | ||
| Voltage Flicker | BS EN/EN61000-3-3 | …... | ||
| EMC IMMUNITY | BS EN/EN61547 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 2 | ||
| EFT/Burst | BS EN/EN61000-4-4 | Level 2 | ||
| Surge | BS EN/EN61000-4-5 | 1KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 2 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 2666.8K hrs min. Telcordia SR-332 (Bellcore) ; 260.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 320*30*16.8mm (L*W*H) | |||
| PACKING | 0.206 Kg; 64pcs / 14.184Kg / 0.75CUFT | |||
Meanwell SLD-80 Series Features
l Constant Voltage and Constant Current mode output
l Wide input range 110-305VAC with PFC function
l Compliance with BS EN/E N61347 regulation
l Class 2/Ⅱ power unit ( Except for 12V)
l Slim and Linear housing Design
l No load power consumption <0. 5W
l 3 years warranty
Meanwell SLD-80 Series Applications
l Panel lighting
l Strip lighting
l Troffer lighting
l Cove lighting
l Decoration lighting
l Signage and display
Meanwell SLD-80 Series Mechanical Diagram
