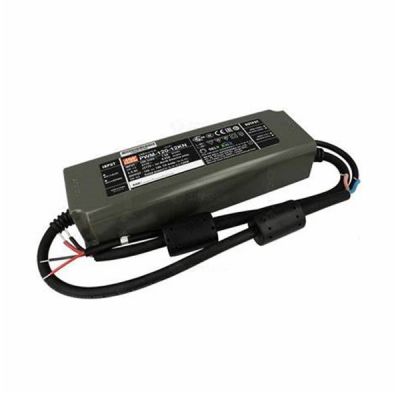

Meanwell 120W Constant Voltage PWM Output KNX LED Driver

- +
Availability:In stock
SKU Meanwell PWM-120-KN
Brand Meanwell
Details

Meanwell PWM-120-KN Series is a 120W AC/DC LED driver. The product features the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs. At the same time, the built-in KNX interface can avoid using the complicated KNX-DALI gateway. PWM-120-KN operates from 90~305VAC, and offers two models with output voltage 12V&24V. Thanks to the efficiency reaching high up to 90%, with the fanless design, the entire series is able to work for -40℃~+90℃ case temperature under free air convection. Additionally, the minimal dimming level low to 0.01% is suitable for low light level applications e.g. cinema. The output frequency is changeable up to 4KHz, complaint IEEE1789-2015, and meets the requirement EU Ecodesign stroboscopic visibility measure (SVM). Meanwell PWM-120-KN Series provides a great solution for health concern due to light flickering.

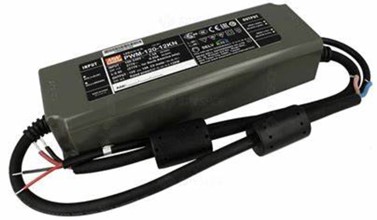

Meanwell PWM-120-KN price and specs 120W Voltage PWM Output KNX LED Driver PWM-120-12KN PWM-120-24KN 10a 5a YCICT

Meanwell PWM-120-KN Series Encoding

PWM Series Name
120 Rated Wattage
24 Rated output voltage (12/24V)
Function option
KN KNX control technology
KNBST KNX control technology with BST14 connector

Meanwell PWM-120-KN Series Model Specifications

Model PWM-120-12 PWM-120-24
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 10A 5A
RATED POWER 120W 120W
DIMMING RANGE 0-100%
PWM FREQUENCY (Typ.) 200~4000Hz user changable via ETS
SETUP, RISE TIME 500ms, 80ms/ 230VAC or 115VAC
HOLD UP TIME (Typ.) 16ms/230VAC or 115VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.) 88.00% 90.00%
AC CURRENT (Typ.) 1.3A / 115VAC 0.65A / 230VAC 0.55A / 277VAC
INRUSH CURRENT(Typ.) COLD START 60A(twidth=520μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION <0.5W
PROTECTION OVERLOAD 108 ~ 130% rated output power
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15-17V 28-34V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 45,except 0 ~ 40 for 12V)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,
EAC TP TC 004 approved
KNX STANDARDS Certified protocol
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,
GB/T 17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line  2KV),EAC TP TC 020
Others MTBF 1915.2K hrs min. Telcordia SR-332 (Bellcore) ; 205.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 191*63*37.5mm (L*W*H)
PACKING 0.80Kg; 15pcs/13.0Kg/0.87CUFT

Meanwell PWM-120-KN Series Features

l  Constant Voltage PWM style output with user changeable frequency upto 4KHz compliant IEEE1789-2015and EU Ecodesign SVM requirement

l  Min. dimming level 0.01%

l  Plastic housing with class ll design

l  Standby power consumption<0.5W

l  Integrated KNX control protocol

l  No need KNX-DALI gateway

l  Typical lifetime>50000 hours

l  5 years warranty

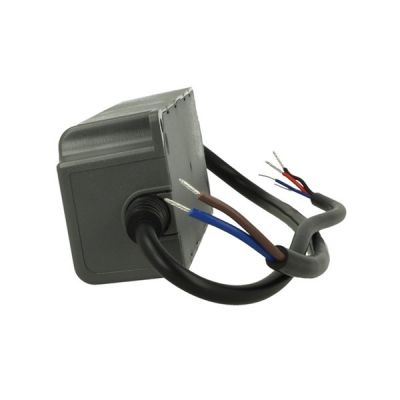

Meanwell PWM-120-KN price and specs 120W Constant Voltage PWM Output KNX LED Driver PWM-120-12KN PWM-120-24KN YCICT

Meanwell PWM-120-KN Series Applications

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  LED architecture lighting

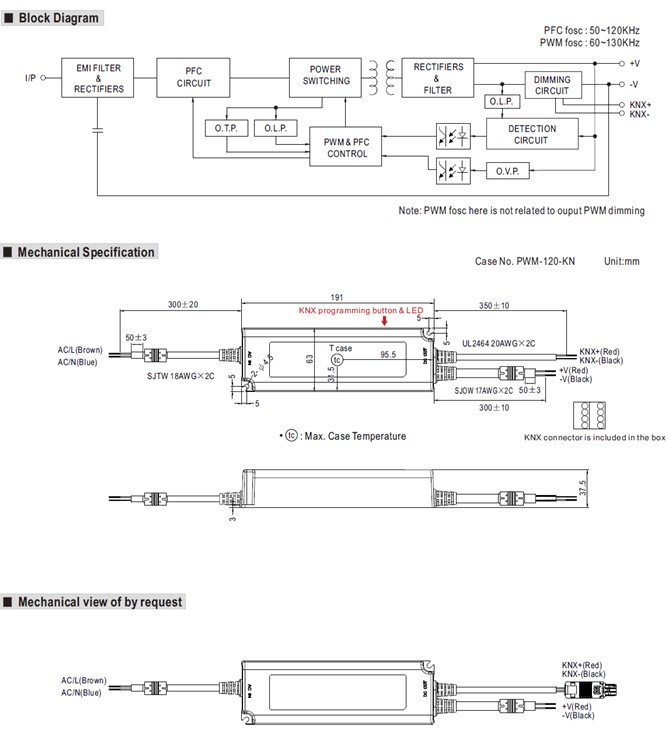

Meanwell PWM-120-KN Series Mechanicla Diagram

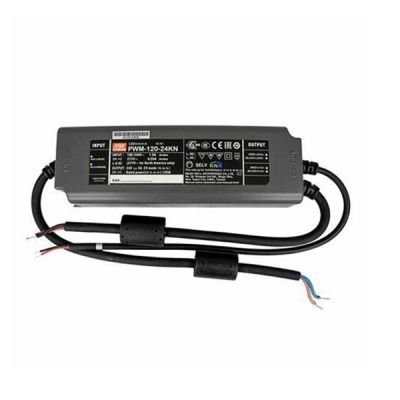

Meanwell PWM-120-KN price and specs 120W Voltage PWM Output KNX LED Driver PWM-120-12KN PWM-120-24KN 12v 24v YCICT
