NPP-750-24
125.48

NPP-750-24

$125.48

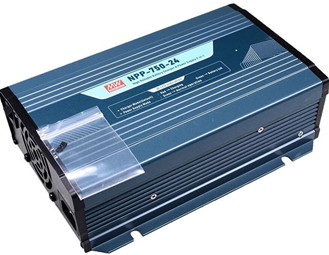

Meanwell 750W High Reliable Ultra Wide Output Range Battery Charger & Power Supply 2-in-1 with 28.8V11.25-22.5A756W300mVp-p±1.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell NPP-750-24
Brand Meanwell
Details

Meanwell NPP-750-24 is a miniaturized dual-purpose charger and power supply with 28.8V11.25-22.5A756W300mVp-p±1.0%±0.5%±1.0%. Apart from being used as a three-stage charger for lead-acid batteries, NPP-750-24 could also work as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connector on the front panel. The item stands out with ultra-wide voltage output, adjustable voltage via VR on the panel (21~42V), adjustable charging current (50~ 100%), built-in intelligent fan, -30~+70℃ wide operating temperature, and built-in remote ON/OFF control. In addition, the model complies to IEC/EN/UL62368-1 and household EN60335-1/-2-29 dual safety, and equipped with multiple built-in protections such as Short circuit, Over load, Over voltage and Over temperature. Thanks to its longevity, high efficiency, and excellent reliability, Meanwell NPP-750-24 is truly an intelligent, safe, and reliable universal dual-purpose charger and power supply with outstanding cost performance.

Meanwell NPP-750-24 Price and Specs 750W Battery Charger Power Supply NPP-750 NPP-750-12 NPP-750-48 2 in 1 YCICT

Meanwell NPP-750-24 Encoding

NPP Series Name
750 Rated Wattage
24 Output Voltage (12V/24V/48V)

Meanwell NPP-750-24 Specifications

Model NPP-750-24
OUTPUT BOOST CHARGE VOLTAGE(Vboost)(default) 28.8V
FLOAT CHARGE VOLTAGE(Vfloat)(default) 27.6V
VOLTAGE ADJUSTABLE RANGE 21-42V
By built-in potentionmeter
MAX. OUTPUT CURRENT(CC) 22.5A
CURRENT ADJUSTABLE RANGE 11.25-22.5A
By built-in potentionmeter
RATED POWER 756W
MAX. POWER 756W
RIPPLE & NOISE(max.) 300mVp-p
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC at 75% load 10ms/230VAC at full load
RECOMMENDED BATTERY CAPACITY (AMP HOURS) 80-260AH
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.) 93.00%
AC CURRENT (Typ.) 8.7A/115VAC 4A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A at 230VAC
PROTECTION SHORT CIRCUIT Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE 43-52V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION CHARGING STAGE 3 stage only
CHARGER OK SIGNAL The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL Open : Charger stop charging Short : Charger normal work
FAN SPEED CONTROL Depends on internal temperature
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 883.5K hrs min. Telcordia SR-332 (Bellcore) ; 95.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 230*158*67mm (L*W*H)
PACKING 1.84Kg; 4pcs/ 9Kg / 1.63CUFT

Meanwell NPP-750-24 Features

l  3 years warranty

l  Remote ON-OFF control

l  3-stage charging curve for charging mode

l  -30~+70℃ wide operating temperature

l  Comply with 62368-1+60335-1/-2-29 dual certification

l  Suitable for lead-acid (Pb) batteries

l  Carry handle accessory available (Order NO.:DS-Carry handle, sold seperately)

l  Multi-function single unit battery charger or power supply operation modes selectable

l  Output voltage and current adjustable via potentiometer

l  Multiple protections: Short circuit/Over load/Over voltage/Over temperature

l  Thermal controlled DC fan for noise reduction

Meanwell NPP-750-24 Price and Specs Battery Charger Power Supply NPP-750 NPP-750-12 NPP-750-48 750W AC/DC YCICT

Meanwell NPP-750-24 Applications

l  Radio system backup solution

l  Electric scooter charger

l  Camping car, Buses, Heavy duty truck, Specialty vehicles

l  Surveillance system

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

Meanwell NPP-750-24 Price and Specs Battery Charger Power Supply NPP-750 NPP-750-12 NPP-750-48 750W 28.8V YCICT

Meanwell NPP-750-24 Mechanical Diagram

Meanwell NPP-750-24 Price and Datasheet Battery Charger Power Supply NPP-750 NPP-750-12 NPP-750-48 750W 28.8V YCICT

Meanwell NPP-750-24 Price and Datasheet Battery Charger Power Supply NPP-750 NPP-750-12 NPP-750-48 750W 2 in 1 YCICT
