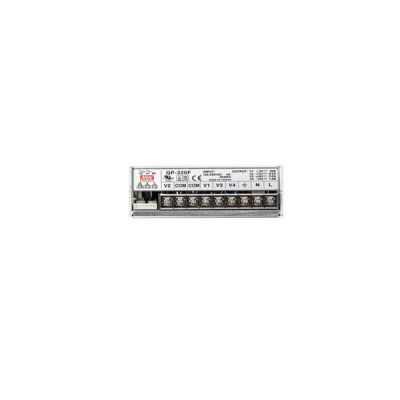

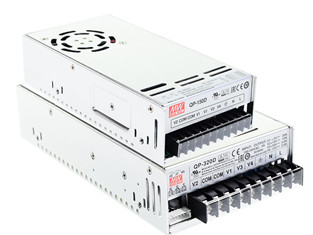

Meanwell 320W Quad Output with PFC Function

- +
Availability:In stock
SKU Meanwell QP-320
Brand Meanwell
Details

Meanwell QP-320 Series is AC/DC Enclosed Switching Power Supply with Built-in active PFC function and Built-in remote sense function for CH1 & CH2. CH1 & CH2 can be adjusted from -5% ~ +10%. The entire provides the complete protections such as Short circuit /Overload/Over voltage/Over temperature. Due to 20A peak load capability for 24V channel and 100% full load burn-in test. QP-320 could operate under low temperature with full load and delivering an extremely low no load power consumption. In addition, it is complied with the international safety regulations and meet the worldwide energy requirements. In light of the high efficiency, long longevity and high reliability, Meanwell QP-320 Series serve as a high price-to-performance power supply solution for various applications.

Meanwell QP-320 Series Model Specifications

Meanwell QP-320 Series Model Specifications

Model QP-320D QP-320F
Output OUTPUT NUMBER CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4
DC VOLTAGE 5V 12V 24V -12V 5V 15V 24V -15V
RATED CURRENT 20A 10A 3A 2A 20A 8A 3A 1.6A
CURRENT RANGE 2.5-20A 0-10A 0.2-5A 0.2-2A 2.5-20A 0-10A 0.2-5A 0.2-1.6A
RATED POWER 316W
PEAK CURRENT 20A 10A 20A 2A 20A 10A 20A 1.6A
RIPPLE & NOISE (max.) mVp-p 100 150 150 150 100 150 150 150
VOLTAGE ADJ. RANGE CH1,2:+10,-5%
VOLTAGE TOLERANCE ±3% ±3% +10.-6% ±10% ±3% ±3% +10.-6% ±10%
LINE REGULATION ±1% ±2% ±2% ±3% ±1% ±2% ±2% ±3%
LOAD REGUL ATION ±2% ±3% ±6% ±8% ±2% ±3% ±6% ±8%
SETUP, RISE TIME 800ms,50ms/230VAC 3000ms,50ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 83%
AC CURRENT (Typ.) 4A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) 25A/115VAC 45A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:13.8 ~ 16.2V CH1: 5.75 ~ 6.75V CH2:17.25 ~ 20.25V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE(OPTION Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION POWER GOOD / POWER FAIL 10ms/1ms
ENVIRONMENT WORKING TEMP. -10 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 213.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.2Kg; 12pcs/15.4Kg/0.9CUFT

Meanwell QP-320 Series Features

l  Universal AC input 1 Full range

l  Built-in active PFC function, PF>0.95

l  Protections: Short circuit /Overload/Over voltage/Over temperature

l  CH1 & CH2 can be adjusted from -5% ~ +10%

l  With power good and fail signal output

l  Built-in remote sense function for CH1 & CH2

l  LED indicator for power on

l  100% full load burn-in test

l  20A peak load capability for 24V channel

l  3 years warranty

Meanwell QP-320 Series Features

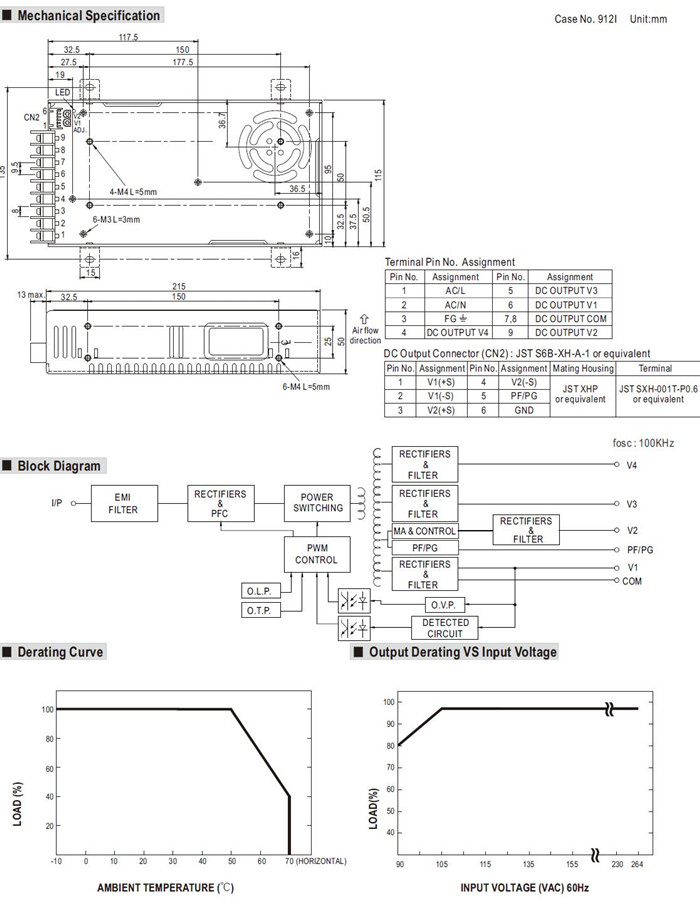

Meanwell QP-320 Series Mechanical Diagram

Meanwell QP-320 Series Mechanical Diagram
