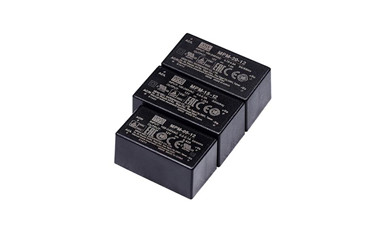

Meanwell MPM- 05 Series is a 5W AC/DC module type medical grade power supply designed in high density and small size (45.7*25.4*21.5mm) in pin type. The entire series features the operation for 80~ 264VAC, low no load power consumption less than 0.075W, and high efficiency up to 82%. Additionally, MPM-0.5 is equipped with the interior potting, 5G anti-vibration, high EMC performance, 4KV AC isolation, etc, this allows to meet IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 u A). Moreover, it provides Class II (no FG) double insulation, outstanding dissipation and high lifespan. Considering its longevity, high reliability, excellent quality, Meanwell MPM- 0 5 Series is a very suitable solution for BF (patient contact) type medical device or relevant equipment.

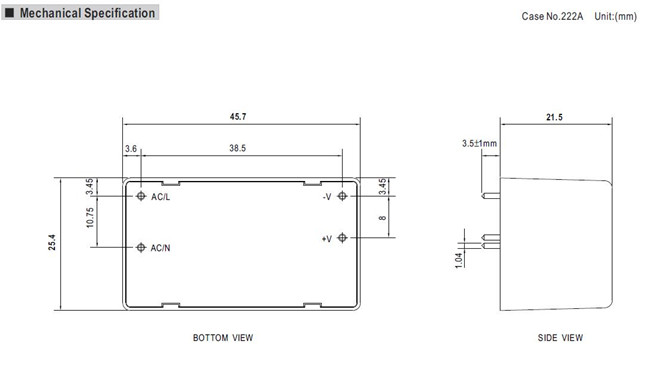

Meanwell MPM-05 Series Mechanical Diagram

Meanwell MPM-05 Series Encoding

MPM Series Name
05 Rated Wattage
5 Output Voltage

Meanwell MPM-05 Series Model Specifications

Model MPM-05-3.3 MPM-05-5 MPM-05-12 MPM-05-15 MPM-05-24
OUTPUT DC VOLTAGE 3.3V 5V 12V 15V 24V
RATED CURRENT 1.25A 1A 0.42A 0.33A 0.23A
CURRENT RANGE 0-1.25A 0-1A 0-0.42A 0-0.33A 0-0.23A
PEAK CURRENT 1.38A 1.1A 0.46A 0.36A 0.25A
RATED POWER 4.1W 5W 5W 5W 5.5W
PEAK LOAD(10sec.) 4.6W 5.5W 5.5W 5.4W 6W
RIPPLE & NOISE (max.) 100mVp-p 100mVp-p 150mVp-p 150mVp-p 180mVp-p
VOLTAGE TOL ERANCE  ±2.5% ±2.5% ±2.5% ±2.5% ±2.5%
LINE REGULATION ±0.3% ±0.3% ±0.3% ±0.3% ±0.3%
LOAD REGUL .ATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 440Hz
EFFICIENCY (Typ.) 74% 78% 80% 81% 82%
AC CURRENT (Typ.) 0.2A/115VAC 0.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT Touch current <80μA/264VAC
PROTECTION OVERL OAD 110% ~ 180% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-5V 5.8-6.8V 13.8-16.2V 17.3-20.3V 27.6-32.4V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -40 ~ +85(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +100, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
LEAD TEMPERATURE 260±5,5s (max.)
OPERATING ALTITUDE 5000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, BS EN/EN60601-1, , UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; rd EAC TP TC 004
Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55011 (CISPR11) Class B
Radiated BS EN/EN55011 (CISPR11) Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN60601-1-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz )
Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
OTHERS MTBF 1799.5Khrs min. MIL-HDBK-217F (25)
DIMENSION 45.7*25.4*21.5mm (L*W*H) or 1.8*1.0"0.85" inch
PACKING 0.035Kg; 270pcs/10.5Kg/0.94CUFT

Meanwell MPM-05 Series Features

l  1.8"x1" compact size

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

l  Suitable for BF application with appropriate system consideration

l  No load power consumption<0.075W

l  Extremely low leakage current

l  Wide operating temp. range -40~+85℃

l  MI class B for class I configuration

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  No minimum load required

l  Typical lifetime>48K hours

l  3 years warranty

MPM-05

Meanwell MPM-05 Series Applications

l  Portable medical device

l  Mobile clinical workstation

l  Medical computer monitor

l  Medical examination instrument

Meanwell MPM-05 Series Applications

Meanwell MPM-05 Series Mechanical Diagram

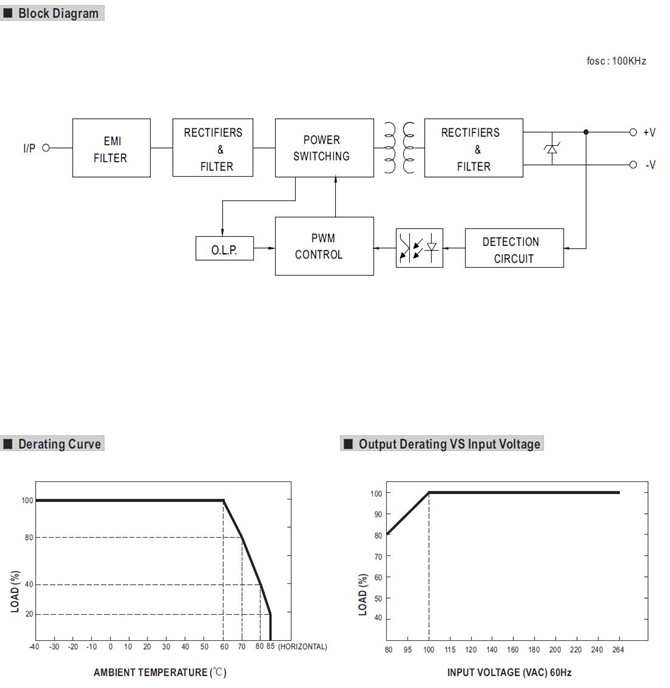

Meanwell MPM-05 Series Mechanical DiagramMeanwell MPM-05 Series Mechanical Diagram
