MFM-30
20.09

MFM-30

As low as $20.09

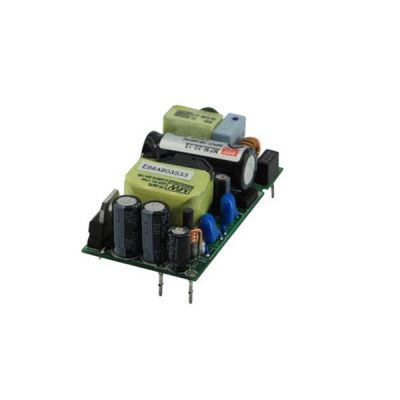

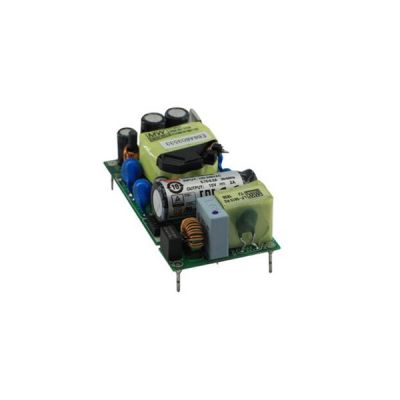

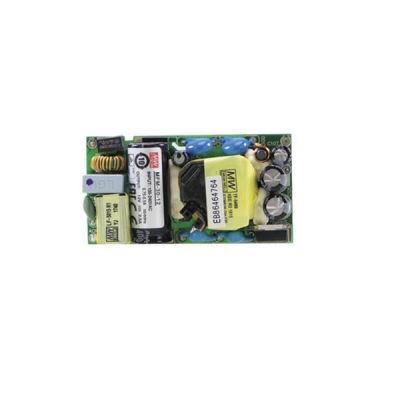

Meanwell 30W AC/DC High Reliable Green Medical On Board Type Power Supply

- +
Availability:In stock
SKU Meanwell MFM-30
Brand Meanwell
Details

Meanwell MFM-30 Series is a 30W AC/DC on board type medical grade power supply. The entire series is designed in high density and small size (65.5*35*23mm). At the same time, it features the operation for 80~264VAC, low no load power consumption less than 0.075W, and high efficiency reaching up to 91%. In addition, MFM-30 is equipped with Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it is able to observe IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three. Apart from them, MFM-30 offers the various protection functions such as Short circuit, Overload and Over voltage. Considering its longevity, high reliability, excellent quality, Meanwell MFM-30 Series is a very suitable solution for BF (patient contact) type medical device or relevant equipment.

Meanwell MFM-30

Meanwell MFM-30 Series Encoding

MFM Series Name
30 Rated Wattage
5 Output Voltage

Meanwell MFM-30 Series Model Specifications

Model MFM-30-3.3 MFM-30-5 MFM-30-12 MFM-30-15 MFM-30-24 MFM-30-48
OUTPUT DC VOLTAGE 3.3V 5V 12V 15V 24V 48V
RATED CURRENT 6A 6A 2.5A 2A 1.3A 0.63A
CURRENT RANGE 0-6A 0-6A 0-2.5A 0-2A 0-1.3A 0-0.63A
PEAK CURRENT 7.8A 6.9A 2.9A 2.3A 1.5A 0.73A
RATED POWER 19.8W 30W 30W 30W 31.2W 30.2W
PEAK LOAD(10sec.) 25.7W 34.5W 34.8W 34.5W 36W 35W
RIPPLE & NOISE (max.) 80mVp-p 80mVp-p 120mVp-p 120mVp-p 200mVp-p 200mVp-p
VOLTAGE TOL ERANCE  ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 82.50% 86.50% 90.00% 89.00% 90.00% 91.00%
AC CURRENT (Typ.) 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT Touch current <80μ A/264VAC
PROTECTION OVERL OAD 115% ~ 165% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.5-4.5V 5.3-6.8V 12.6-16.2V 15.8-20.3V 25.2-32.4V 50.4-64V
Protection type : Shut down o/p voltage, re-power on to recover

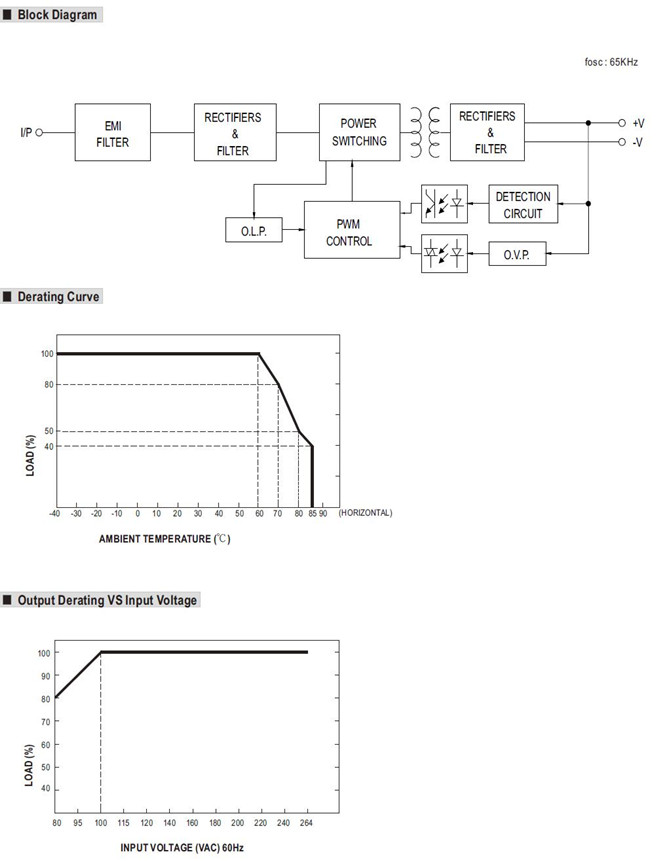

ENVIRONMENT WORKING TEMP. -40 ~ +85 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION 10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 5000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved;
Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN60601-1-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz )
Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
OTHERS MTBF 6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 65.5*35*23mm (L*W*H) or 2.58″*1.38″*0.90″ inch
PACKING 0.053Kg; 144pcs/8.6Kg/0.97CUFT

Meanwell MFM-30 Series Features

l  2.58"x1.38" compact size

l  Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

l  Suitable for BF application with appropriate system consideration

l  No load power consumption<0.075W

l  Extremely low leakage current

l  Wide operating temp. range -40~+85℃

l  EMI class B for class П configuration

l  Protections: Short circuit/Overload/Over voltage

l  No minimum load required

l  3 years warranty

Meanwell MFM-30 Series Features

Meanwell MFM-30 Series Applications

l  Portable medical device

l  Mobile clinical workstation

l  Medical computer monitor

l  Medical examination instrument

Meanwell MFM-30 Series Applications

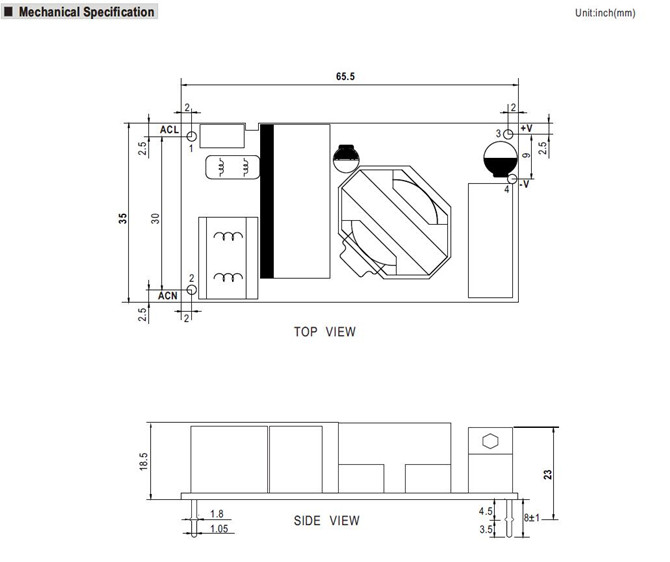

Meanwell MFM-30 Series Mechanical Diagram

Meanwell MFM-30 Series Mechanical DiagramMeanwell MFM-30 Series Mechanical Diagram
