MFM-30-5
20.24

MFM-30-5

$20.24

Meanwell 30W AC/DC High Reliable Green Medical On Board Type Power Supply with 5V6A0-6A6.9A30W34.5W80mVp-p±2.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell MFM-30-5
Brand Meanwell
Details

Meanwell MFM-30-5 is a 30W AC/DC on board type medical grade power supply with 5V6A0-6A6.9A30W34.5W80mVp-p. The item is high density, small size (65.5*35*23mm) and extremely low leakage current. At the same time, it stands out for the operation for 80~264VAC, low no load power consumption, and high efficiency. Furthermore, MFM-30-5 is equipped with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it could satisfy IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three. Apart from them, MFM-30-5 offers the various protection functions such as Short circuit, Overload and Over voltage. Thanks to its longevity, high reliability, excellent quality, Meanwell MFM-30-5 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.

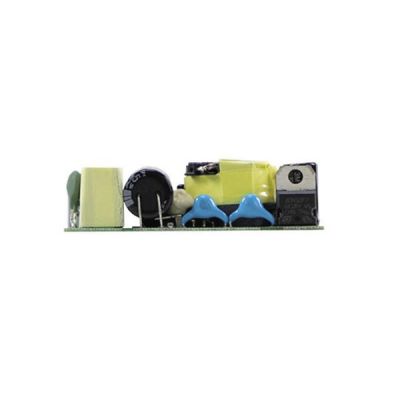

Meanwell MFM-30-5

Meanwell MFM-30-5 Encoding

MFM Series Name
30 Rated Wattage
5 Output Voltage

Meanwell MFM-30-5 Specifications

Model MFM-30-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 6A
CURRENT RANGE 0-6A
PEAK CURRENT 6.9A
RATED POWER 30W
PEAK LOAD(10sec.) 34.5W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.50%
AC CURRENT (Typ.) 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT Touch current <80μ A/264VAC
PROTECTION OVERL OAD 115% ~ 165% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.3-6.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -40 ~ +85 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION 10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 5000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2
OTHERS MTBF 6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 65.5*35*23mm (L*W*H) or 2.58″*1.38″*0.90″ inch
PACKING 0.053Kg; 144pcs/8.6Kg/0.97CUFT

Meanwell MFM-30-5 Features

l  2.58"x1.38" compact size

l  3 years warranty

l  No load power consumption<0.075W

l  Extremely low leakage current

l  Wide operating temp. range -40~+85℃

l  EMI class B for class Ⅱconfiguration

l  Protections: Short circuit/Overload/Over voltage

l  No minimum load required

l  Suitable for BF application with appropriate system consideration

l  Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

Meanwell MFM-30-5 Features

Meanwell MFM-30-5 Applications

l  Portable medical device

l  Medical computer monitor

l  Mobile clinical workstation

l  Medical examination instrument

Meanwell MFM-30-5 Applications

Meanwell MFM-30-5 Mechanical Diagram

Meanwell MFM-30-5 Mechanical DiagramMeanwell MFM-30-5 Mechanical Diagram
