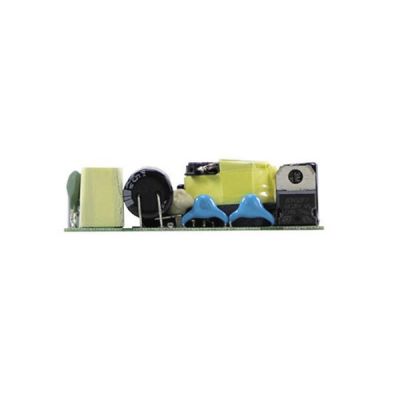

MFM-30-15
21.92
Details
Meanwell MFM-30-15 is a 30W AC/DC on board type medical grade power supply with 15V2A0-2A2.3A30W34.5W120mVp-p. It is designed in high density, small size and wide operating temp. range. In addition, the product highlights the operation for 80~264VAC, low no load power consumption below 0.075W, and high efficiency reaching up to 91%. Moreover, MFM-30-15 is with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it is capable to fit IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three. Apart from them, MFM-30-15 provides the various protection functions like Short circuit, Overload and Over voltage. In view of its longevity, high reliability, excellent quality, Meanwell MFM-30-15 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MFM-30-15 Encoding
| MFM | Series Name |
| 30 | Rated Wattage |
| 15 | Output Voltage |
Meanwell MFM-30-15 Specifications
| Model | MFM-30-15 | |
| OUTPUT | DC VOLTAGE | 15V |
| RATED CURRENT | 2A | |
| CURRENT RANGE | 0-2A | |
| PEAK CURRENT | 2.3A | |
| RATED POWER | 30W | |
| PEAK LOAD(10sec.) | 34.5W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |
| LEAKAGE CURRENT | Touch current <80μ A/264VAC | |
| PROTECTION | OVERL OAD | 115% ~ 165% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 15.8-20.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request) |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 65.5*35*23mm (L*W*H) or 2.58″*1.38″*0.90″ inch | |
| PACKING | 0.053Kg; 144pcs/8.6Kg/0.97CUFT | |
Meanwell MFM-30-15 Features
l 3 years warranty
l 2.58"x1.38" compact size
l No minimum load required
l Extremely low leakage current
l Wide operating temp. range -40~+85℃
l EMI class B for class Ⅱconfiguration
l No load power consumption<0.075W
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell MFM-30-15 Applications
l Portable medical device
l Medical computer monitor
l Medical examination instrument
l Mobile clinical workstation
Meanwell MFM-30-15 Mechanical Diagram
