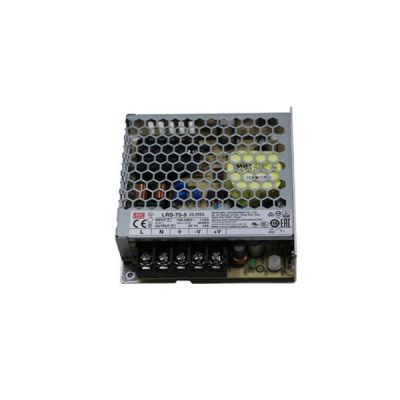

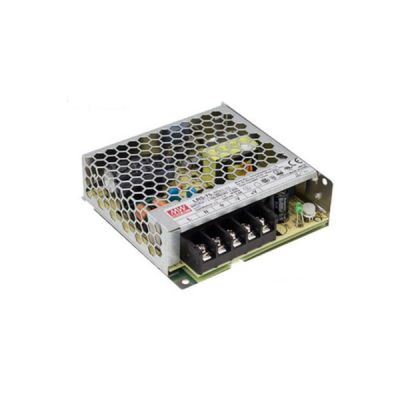

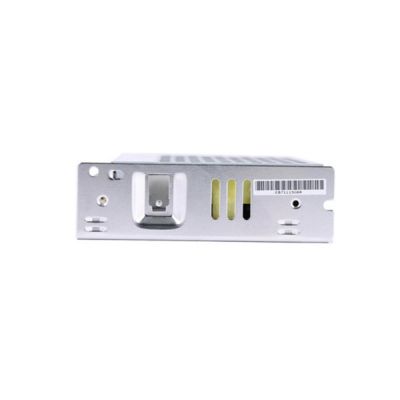

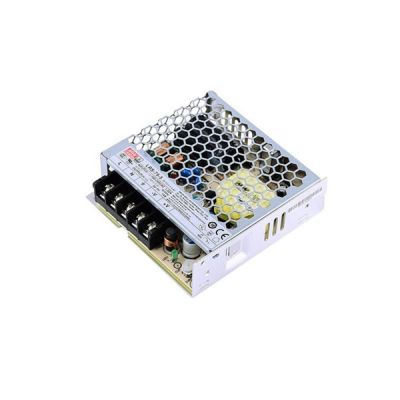

Meanwell LRS-75-5 is a 75W single-output enclosed type power supply with 5V14A0-14A70W. In addition to its high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation. This model can operate from -30C through 70*C under air convection without a fan. By offering an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirement. It is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. Moreover, LRS-75-5 has the complete protection functions and 5G anti-vibration capability. Considering its high efficiency, long life and high reliability, LRS-75-5 is a high price-to-performance power supply solution for various industrial applications.

Meanwell LRS-75-5 Specifications

Meanwell LRS-75-5 Specifications

Model LRS-75-5
Output DC VOLTAGE (V) 5V
RATED CURRENT 14A
CURRENT RANGE 0-14A
RATED POWER 70W
RIPPLE & NOISE (max.)  100 mVp-p
VOLTAGE ADJ. RANGE 4.5-5.5V
VOLTAGE TOLERANCE ±2%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  60ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  86.5%
AC CURRENT (Typ.) 1.4A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ. ) COLD START 65A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V
 Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004,AS/NZS 62368.1(by CB),KC K60950-1(for LRS-75-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254,
BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-75-12/24 only)
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level,
criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-75-12/24 only)
Others MTBF 681.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 99*97*30mm (L*W*H)
PACKING 0.25Kg ; 45pcs/ 12.25Kg/ 0.77CUFT

Meanwell LRS-75-5 Features

l   3 years warranty

l   Over voltage category III

l   100% full load burn-in test

l   LED indicator for power on

l   Withstand 5G vibration test

l   Universal AC input 1 Full range

l   Withstand 300V AC surge input for 5 second

l   No load power consumption<0.3W

l   Miniature size and 1U low profile

l   High operating temperature up to 70*C

l   Protections: Short circuit/Overload/Over voltage

l   Cooling by free air convection

l   Operating altitude up to 5000 meters

l   High efficiency, long life and high reliability

l   Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, -2-16 for household appliances

Meanwell LRS-75-5 Features

Meanwell LRS-75-5 Applications

l  Industrial Automation Machinery

l  Industrial Control System

l  Mechanical and electrical equipment

l  Electronic instruments, equipment and devices

l  Household appliances

Meanwell LRS-75-5 Applications

Meanwell LRS-75-5 Mechanical Diagram

Meanwell LRS-75-5 ApplicationsMeanwell LRS-75-5 Applications
