LPS-50-3.3
13.03

LPS-50-3.3

$13.03

Meanwell 50W Single Output Switching Power Supply with 3.3V10A0-12A33W39.6W50mVp-p3.0-3.6V±3.0%±1%±3%

- +
Availability:In stock
SKU Meanwell LPS-50-3.3
Brand Meanwell
Details

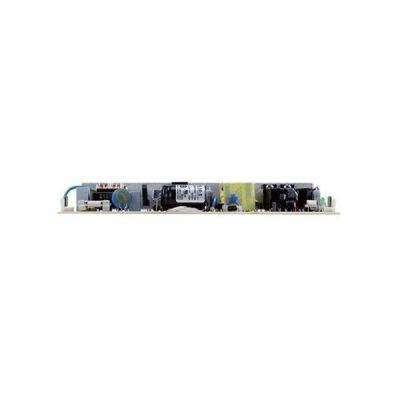

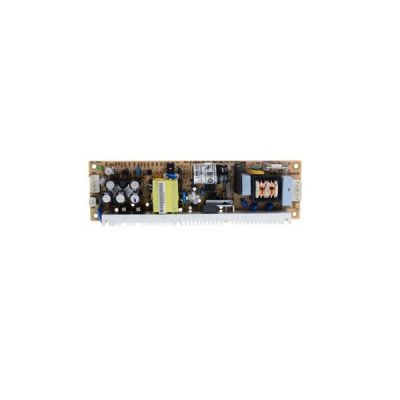

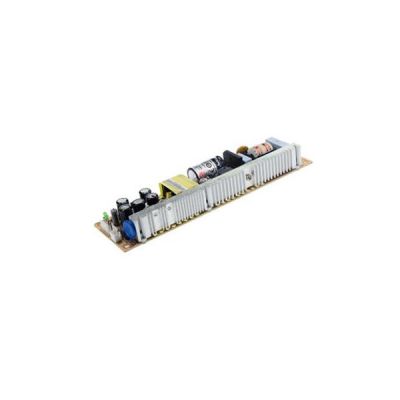

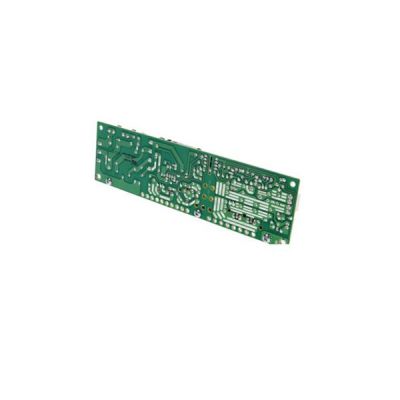

Meanwell LPS-50-3.3 is 50W Single Output Switching Power Supply with 3.3V10A0-12A33W39.6W50mVp-p3.0-3.6V. The unit is designed with compact size and low profile, and highlights with Built-in remote ON-OFF control and Universal AC input/Full range. The working efficiency can reach up to 86% and  operates from -20 ℃through 70 ℃ under air convection without fan. Since it delivers an extremely low no load power consumption, this permits the end system to easily meet the worldwide energy requirement. Besides them, LPS-50-3.3 provides the various protection functions such as Short circuit, Overload and Over voltage. Moreover, the product complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Due to its High efficiency, low cost and  longevity, Meanwell LPS-50-3.3 is a high price-to-performance power supply solution for various industrial applications.

Meanwell LPS-50-3.3 Specifications

Meanwell LPS-50-3.3 Specifications

Model LPS-50-3.3
OUTPUT DC VOLTAGE 3.3V
RATED CURRENT 10A
CURRENT RANGE 0-12A
RATED POWER 33W
PEAK LOAD(10sec.) 39.6W
RIPPLE & NOISE (max.) 50mVp-p
VOLTAGE ADJ. RANGE 3.0-3.6V
VOLTAGE TOL ERANCE  ±3.0%
LINE REGULATION ±1%
LOAD REGUL .ATION ±3%
SETUP, RISE TIME 100ms, 40ms/230VAC 100ms, 40ms/115VAC at full load
HOLD UP TIME (Typ.) 70ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 75.00%
AC CURRENT (Typ.) 115VAC 0.9A%
AC CURRENT (Typ.) 230VAC 0.6A
INRUSH CURRENT(Typ.) COLD START 18A/115VAC 35A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 122 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8 ~ 4.45V
Protection type : Shut down o/p voltage, Clamping by zener diode
FUNCTION REMOTE ON/OFF RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off
ENVIRONMENT WORKING TEMP. -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level,
criteria A, EAC TP TC 020
OTHERS MTBF 341.7Khrs min. MIL-HDBK-217F (25)
DIMENSION 195*55*23mm (L*W*H)
PACKING 0.24Kg; 48pcs/12.5Kg/0.87CUFT

Meanwell LPS-50-3.3 Features

l  Universal AC input/Full range

l  Small and compact size

l  Built-in remote ON-OFF control

l  LED indicator for power on

l  100% full load burn-in test

l  Low profile:23mm thickness

l  2 years warranty

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

Meanwell LPS-50-3.3 Features

Meanwell LPS-50-3.3 Mechanical Diagram

Meanwell LPS-50-3.3 Mechanical Diagram
