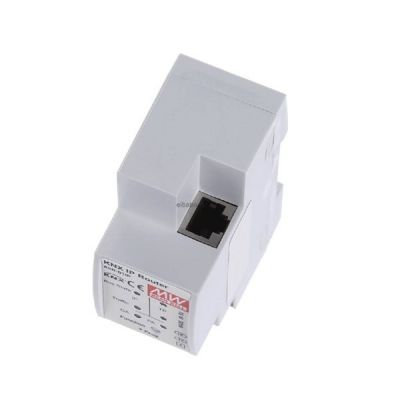

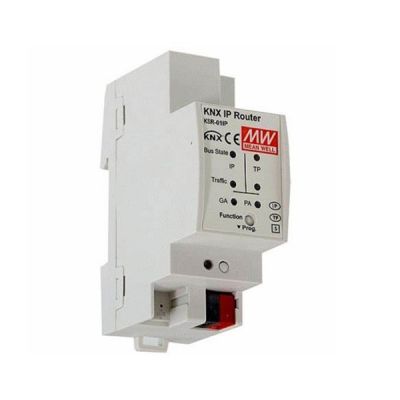

KSR-011P
13.03
Details
Meanwell KSR-011P is a KNXnet/lP routing&tunneling device and works as KNX IPline/area coupler. No need to have an external power supply for powering. The ability to address all bus devices in the KNX bus system makes network operations less time-consuming. Operational and filtering states, malfunction and faulty communication are indicated by LEDs. At the same time, the device is UPnP and its firmware can be updated via the built-in web front-end page. The KSR series connects Ethernet/ KNX IP and KNX TP two media for commissioning, addressing, parameters setting, visualization and diagnostic operations between devices on the KNX bus. In addition, KSR series is able to filter the traffic according to the installation place in the bus system hierarchy and according to the built-in filter tables for group-oriented communication. Configuring from the subline can be blocked. Message filtering can be temporarily deactivated anytime via a button press on the device. The time to switch back to normal operation is ETS configurable. If necessary temporary access to other lines is possible also without download from the ETS.
Meanwell KSR Ordering Info
| Model No | Functions |
| KSR-011P | KNX Classic IP Router |
| KSR-021P | KNX IP Secure Router |
Meanwell KSR-011P Specifications
| MODEL | KSR-011P | |
| OUTPUT | PROGRAMMING INTERFACE | KNX Protocol |
| LED INDICATOR | Various color see mechnical specification part | |
| INPUT | COMM. INTERFACE | RJ45 Ethernet connector |
| POWER SUPPLY | 21~30VDC(KNX TP bus) | |
| CURRENT CONSUMPTION | <20mA(KNX TP bus) | |
| ENVIRONMENT | WORKING TEMP. | -5 ~ +45℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +60℃, 5 ~ 93% RH non-condensing | |
| POLLUTION DEGREE | 2 according to IEC60664-1 | |
| PROTECTION TYPE | IP20 according to IEC60529 | |
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved; Compliance to EN50428; EN62479; EN60950-1 |
| KNX STANDARDS | ISO/IEC 14543-3, EN50090, EN13321-1 | |
| EMC EMISSION | Compliance to EN50491-5, EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, EAC TP TC 020 | |
| Others | MTBF | 100K hrs min. |
| DIMENSION | 36*90*71mm (W*H*D) | |
| PACKING | 0.080Kg; 1pcs | |

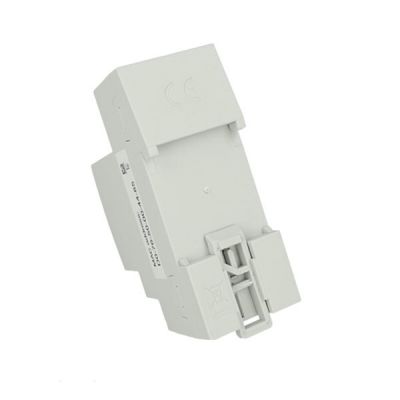

| DIN RAIL MOUNTING | 35 mm rail; 2 units wide | |
Meanwell KSR-011P Features
l KNX IP/TP routing
l 4 KNX IP/TP tunnelings
l No additional external power supply required
l Universal Plug and Play
l Telegram filtering
l Built-in web front-end page
l 3 years warranty
Meanwell KSR-011P Applications
l Office lighting
l Smart home lighting
l Luxury villas lighting
l LED indoor lighting
l Building automation
Meanwell KSR-011P Mechanical Diagram
