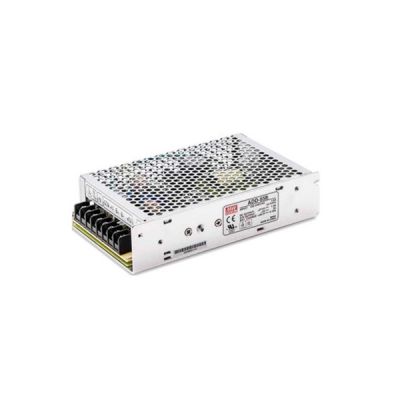

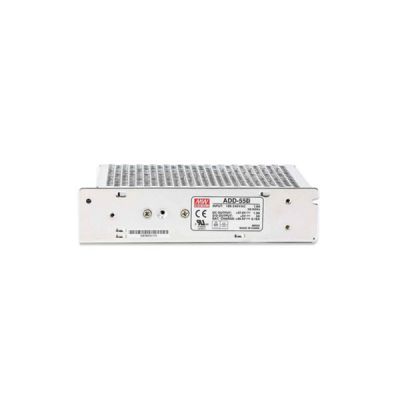

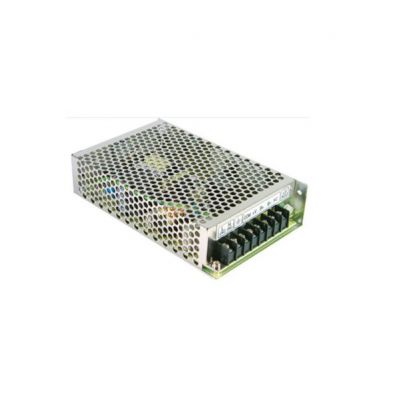

Meanwell ADD-55 Series is 55W Dual Output with Battery Charger (UPS Function). The entire series is designed for uninterrupted DC power supply (UPS). In addition to the main power supply circuit, it also provides a floating charge output. After connecting the battery, the load uses AC power supply. When there is a power supply, it automatically switches to battery power after electricity. ADD-55 series is a classic metal mesh shell model with 100% full load burn-in test and Fixed switching frequency at 45KHz. Apart from providing various protection functions such as Short circuit, Overload and Over voltage. ADD-55 series provides one battery voltage power supply output and one charging output. Considering its high reliability, excellent reliability and longevity, Meanwell ADD-55 series is widely used in emergency lighting, security monitoring and alarm systems.
Meanwell ADD-55 Series Model Specifications
| Model | ADD-55A | ADD-55B | |||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 13.8V | 5V | 13.4V | 27.6V | 5V | 26.5V | |
| RATED CURRENT | 2.5A | 3A | 0.23A | 1.3A | 3A | 0.16A | |
| CURRENT RANGE | 0-3.5A | 0-4A | ----- | 0-2A | 0-4A | ---- | |
| RATED POWER | 52.58W | 55.12W | |||||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | ---- | 150mVp-p | 150mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1: 12 ~ 14.5V | CH1: 24 ~ 29V | |||||
| VOLTAGE TOL ERANCE | ±1.0% | ±3.0% | ---- | ±1.0% | ±3.0% | ----- | |
| LINE REGULATION | ±1.0% | ±0.5% | ---- | ±1.0% | ±0.5% | ---- | |
| LOAD REGUL .ATION | ±1.0% | ±0.5% | ---- | ±1.0% | ±0.5% | ---- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 80ms/230VAC 16ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 71.00% | 74.00% | |||||
| AC CURRENT (Typ.) | 1.6A/115VAC 1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |||||
| Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse | |||||||
| OVER VOLTAGE | CH1:14.49 ~ 18.63V | CH1:28.98 ~ 37.26V | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| FUNCTION | DC ALARM SIGNAL(OPTIONAL) | AC fail CN1 PIN2 | |||||
| Battery low under charge voltage 82.5%±2% CN1 PIN1 | |||||||
| Normal 0.8V max. Abnormal 5V±0.5V | |||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||||||
| OTHERS | MTBF | 2002.7K hrs min. Telcordia SR-332 (Bellcore) ; 373.8K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 159*97*38mm (L*W*H) | ||||||
| PACKING | 0.57Kg; 24pcs/13.7Kg/0.83CUFT | ||||||
Meanwell ADD-55 Series Features
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
l Battery low protections
l Cooling by free air convection
l 100% full load burn-in test
l Fixed switching frequency at 45KHz
l 2 years warranty

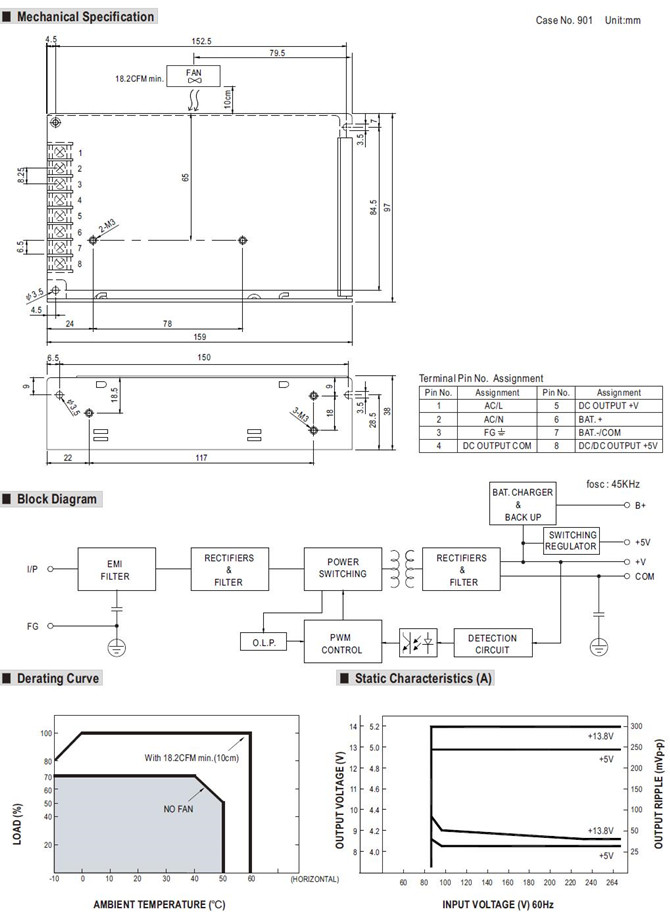

Meanwell ADD-55 Series Mechanical Diagram
