ICL-28L
31.28
Details

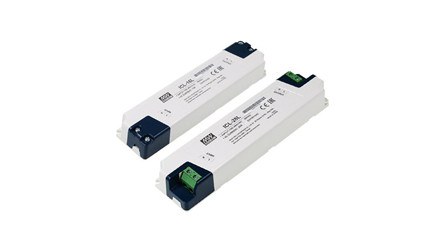

Meanwell ICL-28L is a 28A inrush current limiter, and it can be used to reduce the high starting current due to capacitive load causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.
Meanwell ICL-28L Encoding
| ICL | Series Name | |
| 28 | Continuous rated current | |
| L | Shape | R: Din Rail Type ( Rail Mounted) |
| L: Linear Type ( Terminal block mounted) | ||
Meanwell ICL-28L Specifications
| Model | ICL-28L | |
| AC INPUT VOLTAGE | 180 ~ 264VAC | |
| AC LINE FREQUENCY | 47 - 63Hz | |
| INRUSH CURRENT LIMITING | 48A | |
| AC CONTINUOUS RATED CURRENT | 28A continuous | |
| AC INPUT POWER | 6440VA (28A x 230VAC) | |
| AC INPUT CONSUMPTION | <2W at 264VAC, 50Hz input | |
| INTERNAL RELAY LIMITING TIME (TON POWER ON) |
150±50ms | |
| INTERNAL RELAY | LIMITING CYCLES | 3 cycle / 1 min |
| RELEASE TIME | 100±50ms | |
| INTERNAL PROTECTION | Thermal fuse protects overload and fire | |
| ALLOWED CAPACITIVE LOAD | 6000μF max. | |
| WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP. | -40 ~ +85℃ | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) RH non-condensing | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; | |
| Mounting: Compliance to IEC60068-2-6 | ||
| OPERATING ALTITUDE | 5000 meters | |
| OVER VOLTAGE CATEGORY | ⅲ According to IEC62368-1; altitude up to 5000 meters | |
| POLLUTION DEGREE | 2 | |
| SAFETY STANDARDS | LVD BS EN/EN62368-1 approved | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2 | |
| MTBF | 1626.62K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 175*42*24mm (L*W*H) | |
| PACKING | 0.155Kg; 84pcs/14Kg/0.91CUFT | |
Meanwell ICL-28L Features
l 180~264VAC AC input
l 3 years warranty
l Integrated bypass relay, no simple NTC
l Internal thermal protection
l Installed on DIN Rail TS-35/7.5 or 15 (ICL-28R)
l -30~+ 70 ℃ wide working temperature
l Over voltage category ⅲ
l Operating altitude up to 5000 meters
l 48A inrush limiting current, 28A continuous
Meanwell ICL-28L Applications
l Allow connecting multiple power supplyat same line
l Allows smaller and faster Circuit Breaker
l Capacitive load
l Protects against unintended tigger of circuit breaker
Meanwell ICL-28L Mechanical Diagram
