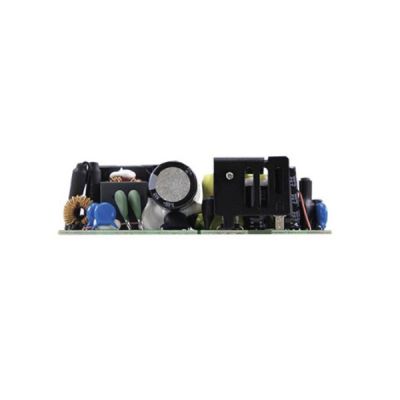

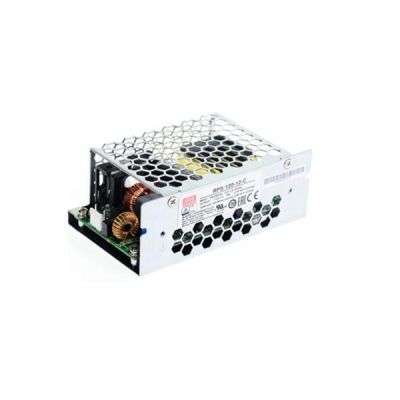

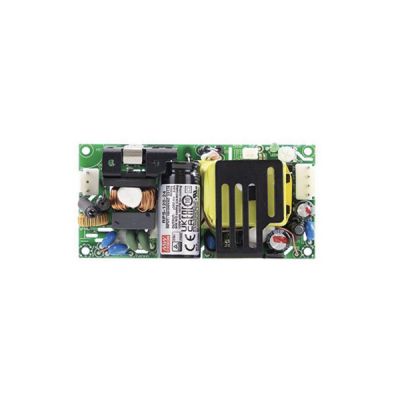

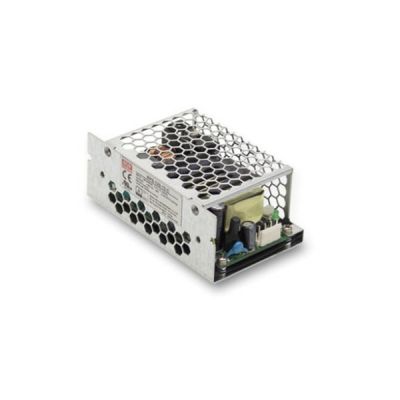

Meanwell 120W Reliable Green Medical Power Supply

- +
Availability:In stock
SKU Meanwell RPS-120
Brand Meanwell
Details

Meanwell RPS-120 Series is a 120W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 4*2 footprint. At the same time, it also accepts 80~264VAC input and offers various output voltages between 12V and 48V. In addition, RPS-120 series features high working efficiency up to 91%, extremely low no load power consumption down below 0.3W and operating altitude up to 4000 meters. Based on them, the series is able to be applied fоr both ClassⅠ(with FG) or Class (no FG) system design. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 150 uA, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, RPS-120 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-120 Series is a very perfect solution for all kinds of BF rated patient contact medical system equipment.

Meanwell RPS-120 Series Encoding

Meanwell RPS-120 Series Encoding

RPS Series Name
120 Rated Wattage
12 Output Voltage
C Blank: PCB Type
-C: Enlosed  Type

Meanwell RPS-120 Series Model Specifications

Model RPS-120-12 RPS-120-15 RPS-120-24 RPS-120-27 RPS-120-48
OUTPUT DC VOLTAGE 12V 15V 24V 27V 48V
CURRENT 10CFM 10A 8A 5A 4.5A 2.5A
Convection 7.0A 5.6A 3.5A 3.15A 1.75A
RATED POWER 10CFM 120W 120W 120W 121.5W 120W
Convection 84W 84W 84W 85W 84W
RIPPLE & NOISE (max.) 100mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 11.4-12.6V 14.3-15.8V 22.8-25.2V 25.6-28.4V 45.6-50.4V
VOLTAGE TOL ERANCE  ±2.0% ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89.00% 89.00% 90.00% 90.00% 91.00%
AC CURRENT (Typ.) 2.1A/115VAC 1.2A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT Earth leakage current < 150 A/264VAC , Touch current < 80 A/264VAC
PROTECTION OVERL OAD 115~150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.5V 5.7-6.8V 13.8-16.2V 17.2-20.3V 27.6-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION FAN SUPPLY 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM)
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE 4000 meters
SAFETY & EMC SAFETY STANDARDS IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version),CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN60601-1-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz )
Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
OTHERS MTBF 3732.9K hrs min. Telcordia SR-332 (Bellcore) ; 653.6K hrs min. MIL-HDBK-217F (25)
DIMENSION PCB:101.6*50.8*29mm or 4" * 2" *1.141" inch ; Enclosed type:103.4*62*40mm or 4.07" * 2.44" *1.57" inch
PACKING PCB:0.15Kg; 72pcs/11.8Kg/0.84CUFT ; Enclosed type:0.24Kg; 60pcs/15.4Kg/1.06CUFT

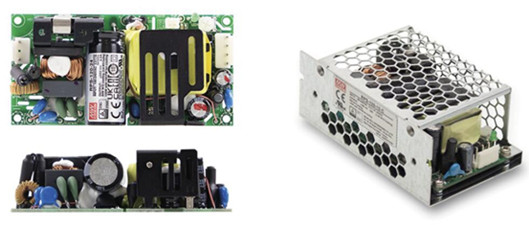

Meanwell RPS-120 Series Features

l  4"x2" compact size

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

l  Suitable for BF application with appropriate system consideration

l  84W convention, 120W force air

l  EMI Class B for both ClassⅠ (with FG) & Class II(no FG) configuration

l  No load power consumption<0.3W

l  Extremely low leakage current

l  12V/0.5A fan supply

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Operating altitude up to 4000 meters

l  3 years warranty

Meanwell RPS-120 Series Features

Meanwell RPS-120 Series Applications

l  Oral irrigator

l  Hemodialysis machine

l  Medical monitors

l  Sleep apnea devices

l  Pumps machine

Meanwell RPS-120 Series Applications

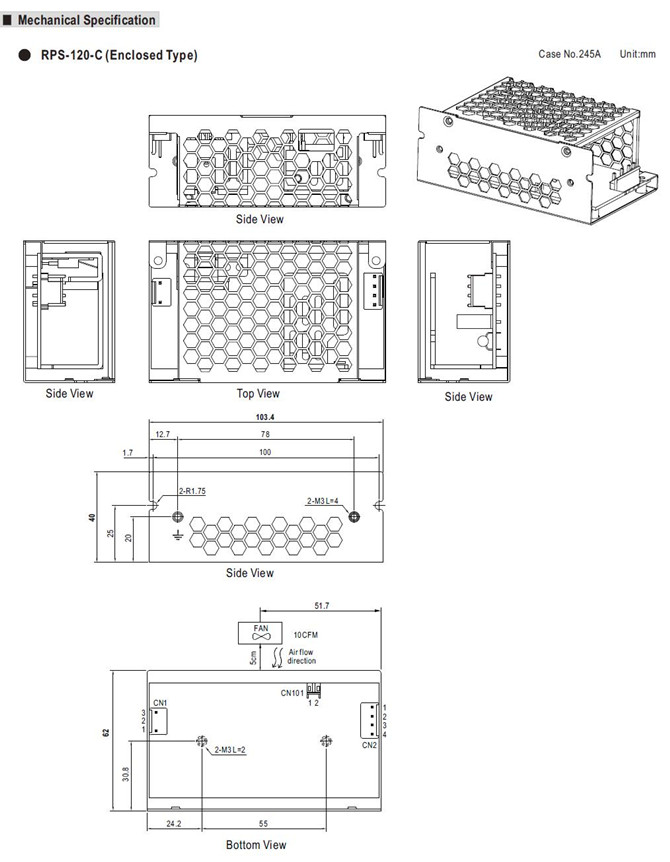

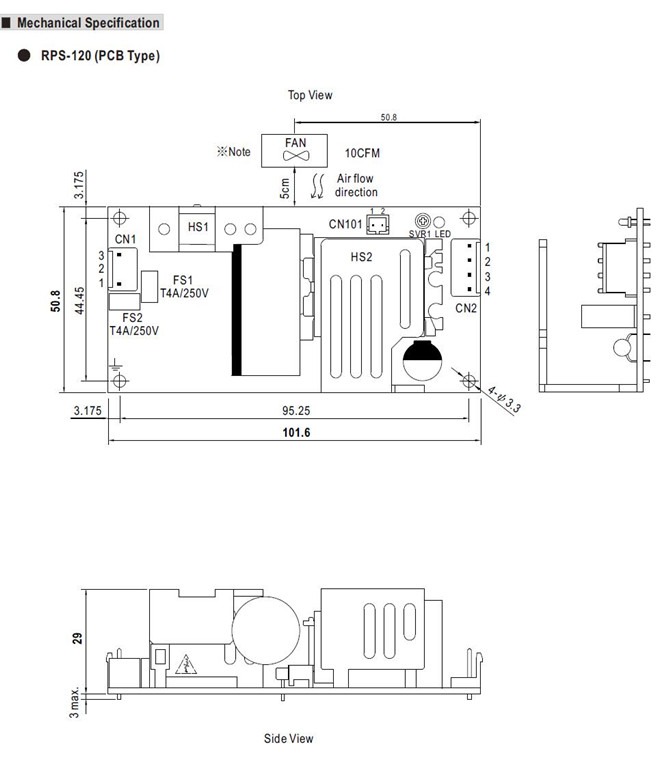

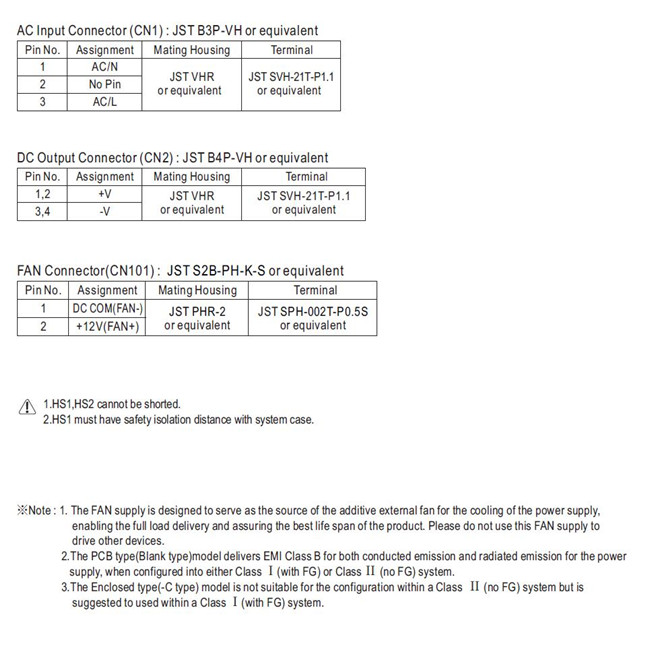

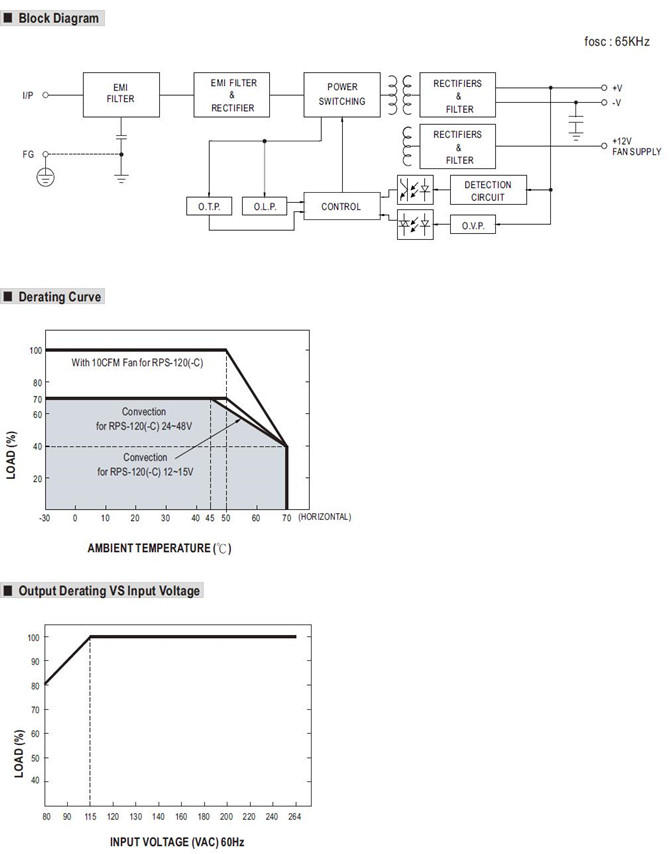

Meanwell RPS-120 Series Mechanical Diagram

Meanwell RPS-120 Series Mechanical DiagramMeanwell RPS-120 Series Mechanical DiagramMeanwell RPS-120 Series Mechanical DiagramMeanwell RPS-120 Series Mechanical Diagram
