HLP-60H-36
21.71

HLP-60H-36

$21.71

Meanwell 60W Single Output Switching Power Supply with 36V21.6-36V1.7A61.2W200mVp-p33-40V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLP-60H-36
Brand Meanwell
Details

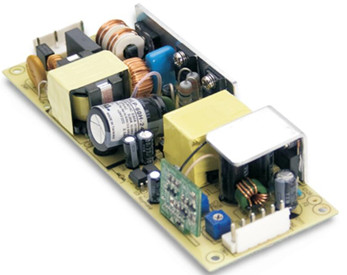

Meanwell HLP-60H-36 is 60W Single Output Switching Power Supply with 36V21.6-36V1.7A61.2W200mVp-p33-40V. The unit provides universal AC input/Full range (up to 305VAC). At the same time, It accepts 90~305VAC input with output voltage 36V. Since the efficiency reaches high up to 90.5% and the extremely low no load power consumption. HLP-60-36 is able to operate under -40 ~ +70℃ just using free air convection. Moreover, the model is equipped with various protections like Short circuit, Over current, Over voltage and Over temperature. As a result of its long lifetime, high efficiency, and excellent quality, Meanwell HLP-60H-36 is ideal for applications such as LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.

Meanwell HLP-60H-36 Price and specs Single Output Switching Power Supply AC/DC Built-in active PFC class 2 60W YCICT

Meanwell HLP-60H-36 Specifications

Model HLP-60H-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 21.6-36V
RATED CURRENT 1.7A
RATED POWER 61.2W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE 33-40V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer
1-1.7A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
SETUP TIME 500ms, 80ms at full load 230VAC / 115VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>= 75% at 277VAC input
EFFICIENCY (Typ.) 90.00%
AC CURRENT (Typ.) 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.) COLD START 55A (twidth=265μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-49V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=60% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020
Others MTBF 3130.5K hrs min. Telcordia SR-332(Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 147*53*27mm (L*W*H)
PACKING 0.2Kg;72pcs/15.4Kg/1.01CUFT

Meanwell HLP-60H-36 Features

l  Class 2 power unit

l  3 years warranty

l  100% full load burn-in test

l  Built-in active PFC function

l  Cooling by free air convection

l  Suitable for dry/damp locations

l  Output constant current level adjustable

l  Suitable for built in LED lighting system

l  Universal AC input/Full range (up to 305VAC)

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Three in one dimming function (1~10Vdc or PWM signal or resistance)

Meanwell HLP-60H-36 Price and specs 60W Single Output Switching Power Supply AC/DC Built-in active PFC and class 2 YCICT

Meanwell HLP-60H-36 Mechanical Diagram

Meanwell HLP-60H-36 Price and specs 60W Single Output Switching Power Supply AC/DC Built-in active PFC class 2 YCICT

Meanwell HLP-60H-36 Price and datasheet 60W Single Output Switching Power Supply AC/DC Built-in active PFC class 2 YCICT
