HLP-60H-15
21.51

HLP-60H-15

$21.51

Meanwell 60W Single Output Switching Power Supply with 15V9-15V4A60W150mVp-p13.5-17V±2.0%±0.5%±1.5%

- +
Availability:In stock
SKU Meanwell HLP-60H-15
Brand Meanwell
Details

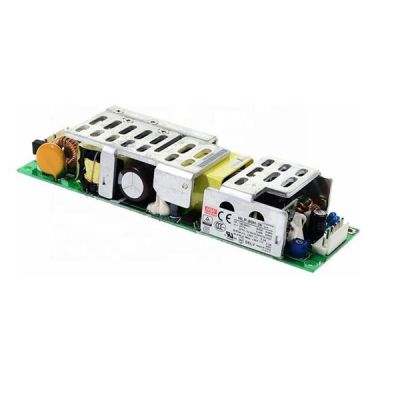

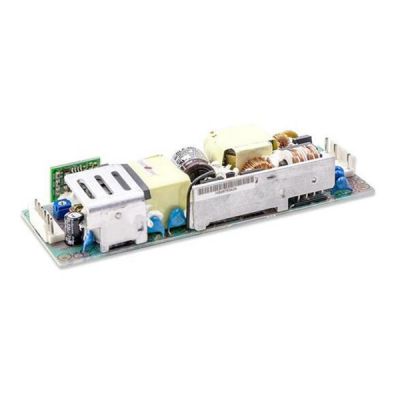

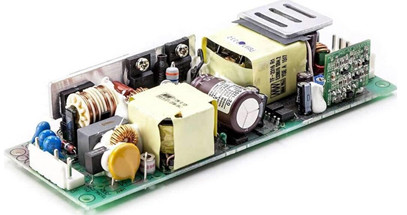

Meanwell HLP-60H-15 is 60W Single Output Switching Power Supply with 15V9-15V4A60W150mVp-p13.5-17V. The product highlights universal AC input/Full range (up to 305VAC). It accepts 90~305VAC input and offers output voltage 15V. With the efficiency high up to 90.5% and the extremely low no load power consumption. HLP-60-15 is able to operate under -40 ~ +70℃ just using free air convection. What’s more, the unit is equipped with various protections like Short circuit, Over current, Over voltage and Over temperature. Due to its long lifetime, high efficiency, and excellent quality, Meanwell HLP-60H-15 is ideal for applications such as LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.

Meanwell HLP-60H-15 Price and specs Single Output Switching Power Supply 60W AC/DC Built-in active PFC Class 2 YCICT

Meanwell HLP-60H-15 Specifications

Model HLP-60H-15
OUTPUT DC VOLTAGE 15V
CONSTANT CURRENT REGION 9-15V
RATED CURRENT 4A
RATED POWER 60W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 13.5-17V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer
2.4-4A
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.5%
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
SETUP TIME 500ms, 80ms at full load 230VAC / 115VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>= 75% at 277VAC input
EFFICIENCY (Typ.) 88.00%
AC CURRENT (Typ.) 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.) COLD START 55A (twidth=265μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 18-24V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=60% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020
Others MTBF 3130.5K hrs min. Telcordia SR-332(Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 147*53*27mm (L*W*H)
PACKING 0.2Kg;72pcs/15.4Kg/1.01CUFT

Meanwell HLP-60H-15 Features

l  Class 2 power unit

l  3 years warranty

l  Universal AC input/Full range (up to 305VAC)

l  Built-in active PFC function

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Cooling by free air convection

l  Output constant current level adjustable

l  Three in one dimming function (1~10Vdc or PWM signal or resistance)

l  Suitable for built in LED lighting system

l  Suitable for dry/damp locations

l  100% full load burn-in test

Meanwell HLP-60H-15 Price and specs 60W Single Output Switching Power Supply Built-in active PFC Class 2 AC/DC YCICT

Meanwell HLP-60H-15 Mechanical Diagram

Meanwell HLP-60H-15 Price and specs 60W Single Output Switching Power Supply AC/DC Built-in active PFC Class 2 YCICT

Meanwell HLP-60H-15 Price and datasheet 60W Single Output Switching Power Supply AC/DC Built-in active PFC Class 2 YCICT
