HEP-240-36
84.07

HEP-240-36

$84.07

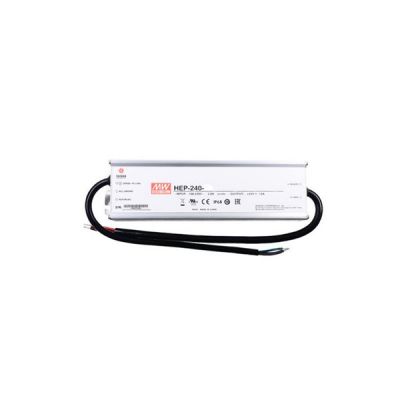

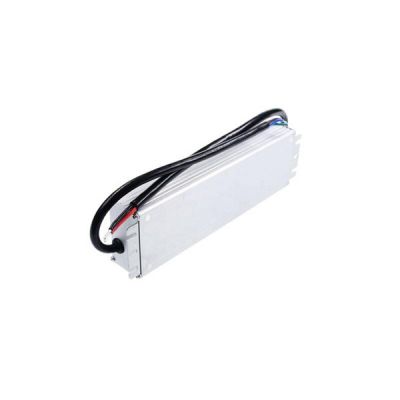

Meanwell 240W Switching Power Supply for Harsh Environment with 36V6.7A241.2W250mVp-p33.5-38.5V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HEP-240-36
Brand Meanwell
Details

Meanwell HEP-240-36 is a 240W industrial AC/DC power supply with 36V6.7A241.2W250mVp-p33.5-38.5V. The model features the outstanding capability to work under a harsh environment with high dust density, humidity, vibration and altitude. In addition, HEP-240-36 is housed with a robust aluminum case and fully potted with heat-conducted silicone. Due to state-of-the-art design, the working efficiency can reach up to 93.5%, which ensures it to work perfectly between -55℃ and +70℃ under free air convection with no fan. Moreover, Meanwell HEP-240-36 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Because of the high efficiency, high reliability and long longevity, Meanwell HEP-240-36 is a high performance solution for various industrial applications.

HEP-240-36 Meanwell HEP-240-36 Price and Datasheet YCICT

Meanwell HEP-240-36 Encoding

HEP Series Name
240 Output  Wattage
36 Output Voltage
A Function Mode Option A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer.
Blank : Optional model, IP68, with fixed Vo and lo level.

Meanwell HEP-240-36 Specifications

Model HEP-240-36
OUTPUT DC VOLTAGE 36V
RATED CURRENT 6.7A
RATED POWER 241.2W
RIPPLE & NOISE (max.) 250mVp-p
VOLTAGE ADJ. RANGE 33.5-38.5V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer for A type only
3.3-6.7A
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1000ms,80ms/115VAC 500ms,80ms/230VAC at full load
HOLD UP TIME (Typ.) 15ms at full load 230VAC /115VAC
INPUT VOLTAGE RANGE 85~264VAC (277VAC operational) 120~370VDC(390VDC operational)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
EFFICIENCY (Typ.) 92.5%
AC CURRENT (Typ.) 12V%
15V ~ 54V
INRUSH CURRENT(Typ.) COLD START 75A at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER LOAD 105 ~ 125%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 43-49V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -55 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -60 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Note.6,9 UL62368-1, IEC62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020
OTHERS MTBF 171.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 244.2*68*38.8mm (L*W*H)
PACKING 1.3Kg; 12pcs/16.6Kg/0.84CUFT

Meanwell HEP-240-36 Features

l  6 years warranty

l  Built-in active PFC function

l  High efficiency up to 93.5%

l  Meet 6KV surge immunity level

l  Withstand 10G vibration test

l  -55℃~+70 ℃ wide operating range

l  Operating altitude up to 5000 meters

l  Universal AC input/Full range (up to 305VAC)

l  Fanless design, cooling by free air convection

l  IP65 design, optional IP68 rated model available

l  Aluminum case and filling with heat-conducted silicone

l  Protections: Short circuit/Overload/Over voltage/Over temperature

HEP-240-36 Meanwell HEP-240-36 Price and Datasheet YCICT

Meanwell HEP-240-36 Applications

l  Outdoor electronic signage and billboard

l  Outdoor telecommunication equipment

l  Petroleum plant or mine shaft facility

HEP-240-36 Meanwell HEP-240-36 Price and Datasheet YCICT

Meanwell HEP-240-36 Mechanical Diagram

Meanwell HEP-240-36HEP-240-36 Meanwell HEP-240-36 Price and Datasheet YCICT
